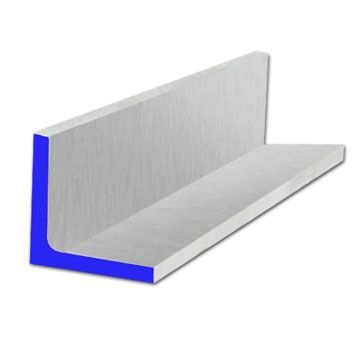

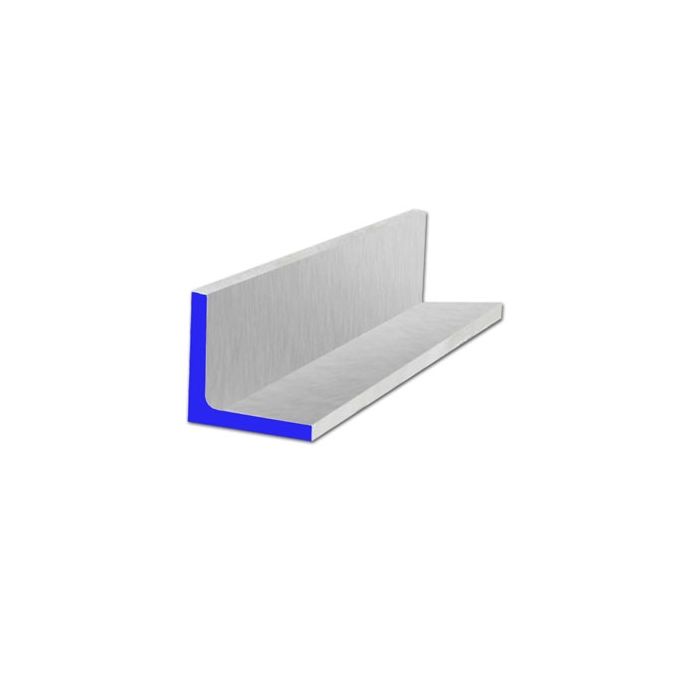

6063 Aluminum Angles - 1 Inch X 1 Inch X 1/8 Inch
| Weight | 0.280000 |
|---|---|
| bobco_dimensions_width | 1 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.13 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 16.38 |
| Thickness | 0.13 |
| Dimension Length | 144.000000 |
| Dimension Width | 1.000000 |
| Dimension Height | 0.130000 |
6063 Aluminum Angles - 1 Inch X 1 Inch X 1/8 Inch
This 1" x 1" x 1/8" 6063-T5 aluminum angle provides excellent corrosion resistance and a superior surface finish. Conforming to ASTM B308, it combines moderate strength with excellent formability, making it ideal for architectural and decorative applications requiring an aesthetic appearance. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Often called 'architectural aluminum,' 6063 is a magnesium-silicon alloy known for its exceptional extrudability and surface finish. The T5 temper indicates it has been artificially aged for a good balance of strength and workability. Conforming to ASTM B308, it offers excellent corrosion resistance, making it suitable for both interior and exterior applications without significant degradation.
As a small-profile angle, this 1" x 1" size is ideal for lightweight framing, decorative trim, equipment guards, and brackets. Its clean lines and low weight are perfectly suited for architectural details, display fixtures, and custom fabrication projects where aesthetics are a primary concern.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 1" Leg x 1" Leg x 1/8" Thickness x 144" Length
- Finish: T5 Temper, Mill Finish
- Certifications: MTR Available
Applications
- Architectural Trim: Window and door frames - smooth finish is ideal for anodizing or painting.
- Retail Fixtures: Display case frames and shelving supports - lightweight and aesthetically pleasing.
- Light Framing: Enclosure supports and equipment guards - provides rigidity without excessive weight.
- Furniture: Structural components for modern furniture - can be easily formed and finished.
Target Users
Architects, fabricators, general contractors, and furniture makers rely on 6063 aluminum angle for its excellent finish and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, characterized by a smooth, semi-dull surface. 6063 aluminum is an excellent substrate for finishing; options like anodizing, powder coating, or painting are common for enhanced protection and aesthetics. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angle is measured by its two legs (A & B) and its thickness (C). For an equal leg angle like this, both legs are the same dimension.
Example: To order this angle, specify "6063 Aluminum Angle, 1 inch by 1 inch by 1/8 inch thickness".
Order Checklist
- Product name and required dimensions (1" x 1" x 1/8")
- Material specification and quantity
- Confirm grade (6063-T5) meets requirements
- Surface finish requirements (T5 Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6063 Aluminum Angles - 1 Inch X 1 Inch X 1/8 Inch
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, Excellent Corrosion Resistance, Superior Surface Finish
- Primary Applications
- Architectural Trim, Window Frames, Light Framing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Angle in leg sizes from 3/4" to 2" and lengths up to 240". This 1" x 1" x 1/8" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
6063 Aluminum Angles - 1 Inch X 1 Inch X 1/8 Inch$11.82
-
-
-
-
