Stainless Steel Sheets 304 #4 PVC - 20 Gauge
| Weight | 1.512500 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 20 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 15 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 184.82 |
| Thickness | 20 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.043600 |

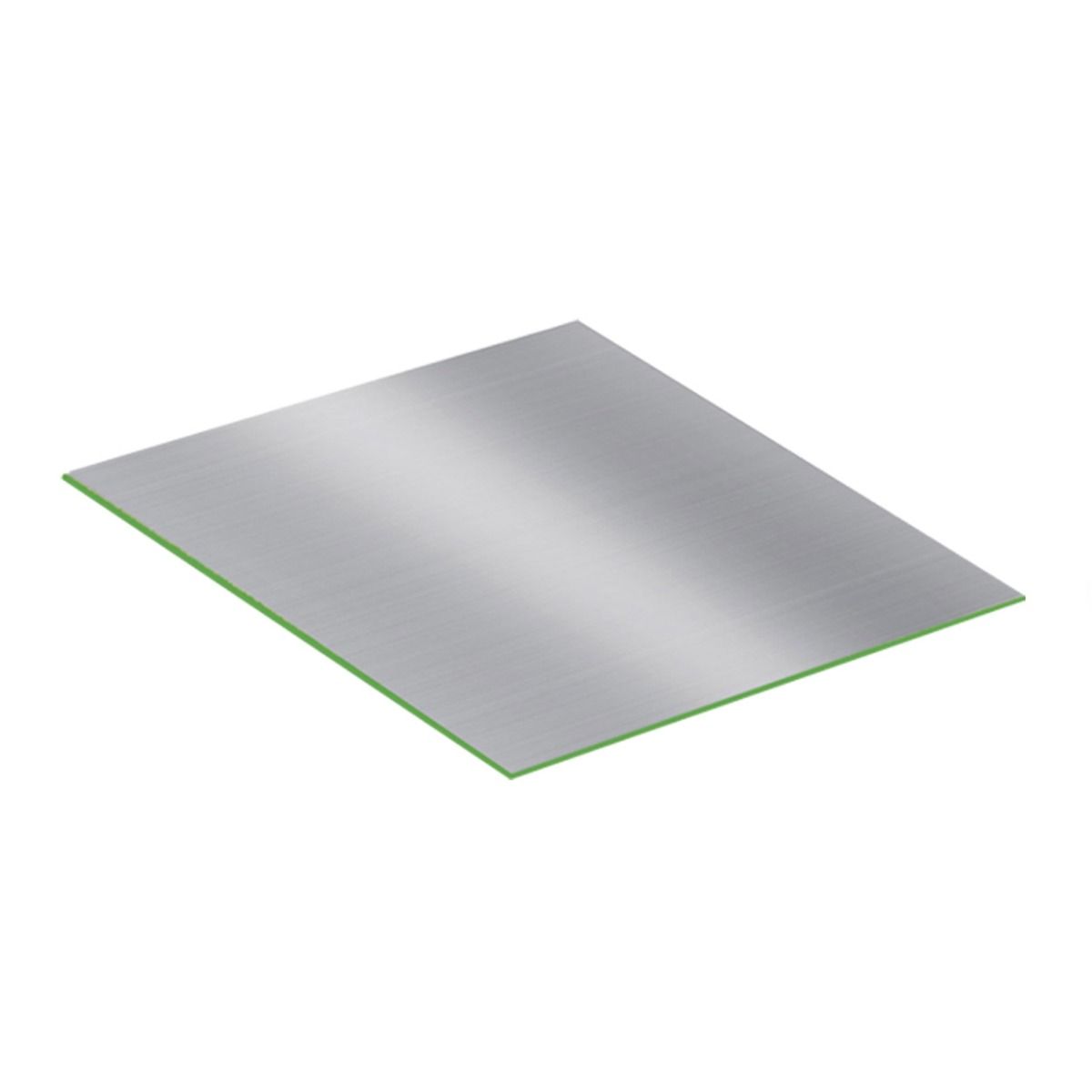

304 Stainless Steel Sheet - 20 Gauge (4' x 10') #4 PVC
This 20 Gauge (0.036") 304 stainless steel sheet measures 4' x 10' and features a #4 brushed finish with a protective PVC coating. Conforming to ASTM A240, it combines 73,200 PSI tensile strength with excellent weldability, ideal for architectural and food-grade applications. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A240 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 is the most versatile austenitic stainless steel, containing 18% chromium and 8% nickel for superior corrosion resistance in a wide range of environments. This sheet is manufactured to meet ASTM A240 standards, ensuring consistent mechanical properties and chemical composition. Its excellent formability and weldability make it a top choice for fabricated parts where both durability and aesthetics are important.
As a thin 20 gauge sheet, this product is classified as a 'small' thickness material, making it perfect for formed brackets, electronic enclosures, decorative architectural panels, and kitchen backsplashes where low weight and high formability are required.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A240
- Strength/Tensile: 73,200 PSI
- Dimensions: 20 Gauge (0.036") x 48" x 120"
- Finish: #4 Brushed with Protective PVC Film
- Certifications: MTR Available
Applications
- Architectural & Design: Decorative panels & trim - #4 finish offers a clean, aesthetic look with excellent weather resistance.
- Food Service: Backsplashes & countertops - Hygienic, easy-to-clean surface that resists corrosion from food acids.
- Electronics: Enclosures & housings - Thin gauge is easy to form into complex shapes for protecting components.
- HVAC: Custom ductwork & fittings - Excellent formability and resistance to moisture.
Target Users
Architectural fabricators, sheet metal shops, kitchen equipment manufacturers, and HVAC contractors rely on 304 stainless sheet for its balance of performance and appearance in projects throughout the Los Angeles area.
Finish Options
This product comes with a #4 brushed finish, a unidirectional satin polish created with a 120-180 grit abrasive. It is protected by a peel-off PVC film to prevent scratching during fabrication and installation. For other requirements, 2B mill finish is also available. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet metal is measured by its thickness (gauge or decimal), width, and length. Gauge is a standard thickness number, while decimal provides a precise measurement in inches.
Example: To order this sheet, specify "304 Stainless Sheet, 20 Gauge x 48-inch x 120-inch".
Order Checklist
- Product name and required dimensions (20 Ga x 48" x 120")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (#4 Brushed with PVC)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Sheets 304 #4 PVC - 20 Gauge
- Material
- 304 Stainless Steel
- Standards
- ASTM A240
- Key Properties
- 73,200 PSI tensile, Excellent Corrosion Resistance, Excellent Formability
- Primary Applications
- Architectural Panels, Food Service Equipment, Decorative Trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Steel Sheet in thicknesses from 26 gauge to 10 gauge and standard sizes of 4'x8' and 4'x10'. This 20 Gauge (4' x 10') size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Sheets 304 #4 PVC - 20 Gauge$38.35
-
-
-
-
