Stainless Steel Plate 304 - 3/16 Inch
| Weight | 8.575000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 0.1875 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 15 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 1,081.85 |
| Thickness | 0.1875 |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.187500 |

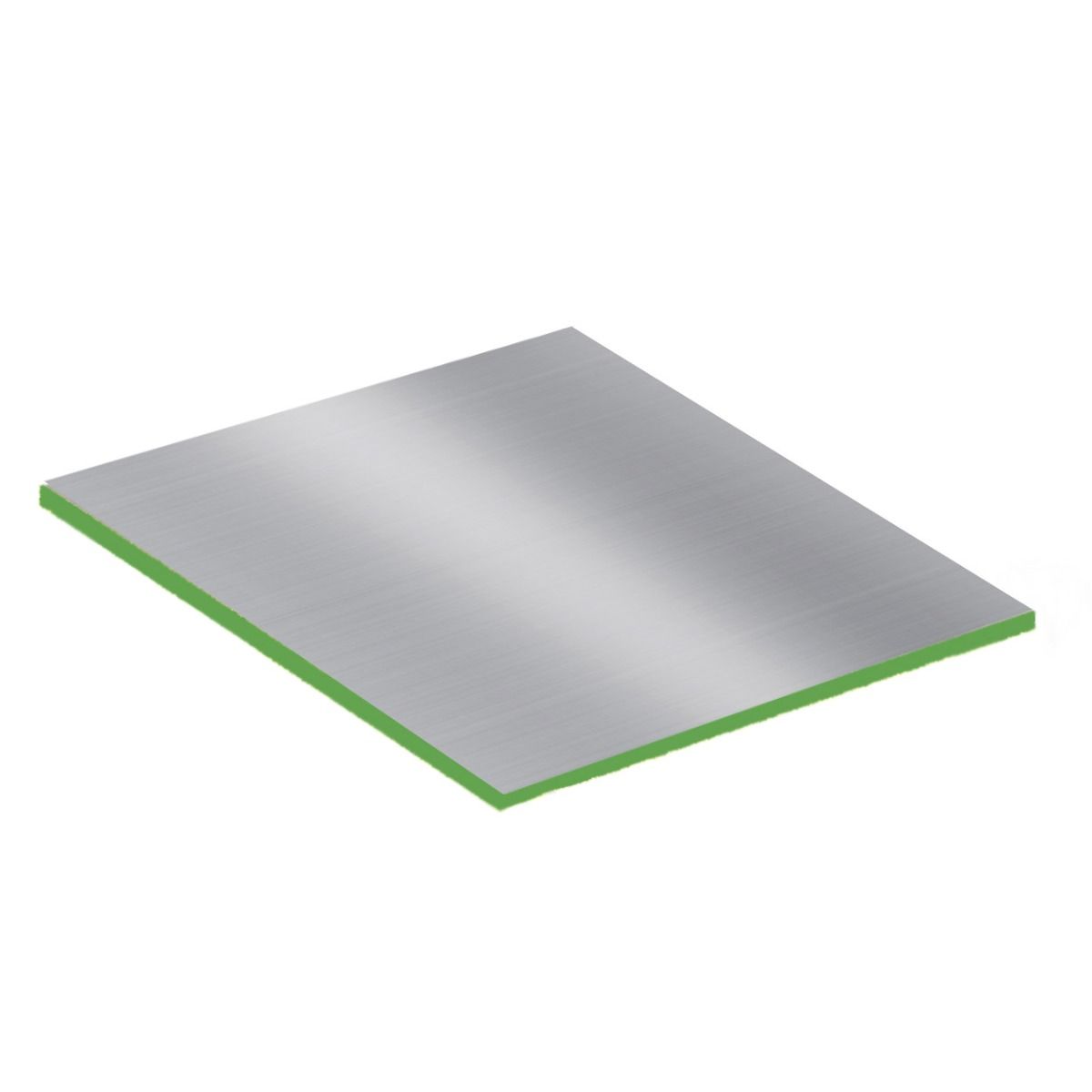

304 Stainless Steel Plate - 3/16" x 48" x 120"
This 3/16" x 48" x 120" plate of Type 304 stainless steel offers a versatile solution for fabrication. Conforming to ASTM A240, it provides 73,200 PSI tensile strength and excellent resistance to corrosion, making it ideal for food equipment and architectural applications. In stock Los Angeles.
- 304/304L Stainless Steel Construction
- ASTM A240 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Formability
Type 304 is the most widely used austenitic chromium-nickel stainless steel, valued for its combination of corrosion resistance, formability, and strength. Supplied in an annealed condition, it meets ASTM A240 standards. Most plate is dual-certified as 304L, which has a lower carbon content to maintain corrosion resistance in welded assemblies, making it ideal for fabricated structures.
The 3/16" thickness places this plate in the medium-gauge category, offering a balance of rigidity and formability. It is ideal for structural panels, heavy-duty kitchen countertops, machine guards, base plates, and architectural fascia where durability and a clean appearance are essential.
Specifications
- Material: 304/304L Stainless Steel
- Standards: ASTM A240
- Strength/Tensile: 73,200 PSI
- Dimensions: 3/16" Thickness x 48" Width x 120" Length
- Finish: No. 1 (HRAP), Annealed
- Certifications: MTR Available
Applications
- Food & Beverage: Commercial kitchen countertops - hygienic, non-reactive surface.
- Architectural: Wall panels and column covers - clean aesthetic and long-term durability.
- General Fabrication: Machine base plates and guards - offers good rigidity and impact resistance.
- Chemical Processing: Storage tank walls and process vessels - resists corrosion from oxidizing acids.
Target Users
Fabricators, welders, architects, and food equipment manufacturers rely on 304 stainless plate for its reliability and versatility in structural and sanitary applications throughout the Los Angeles area.
Finish Options
This product comes standard with a No. 1 mill finish, also known as HRAP (Hot Rolled, Annealed, and Pickled), which provides a dull, non-reflective surface. For specific project requirements, other finishes such as polished or brushed may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.

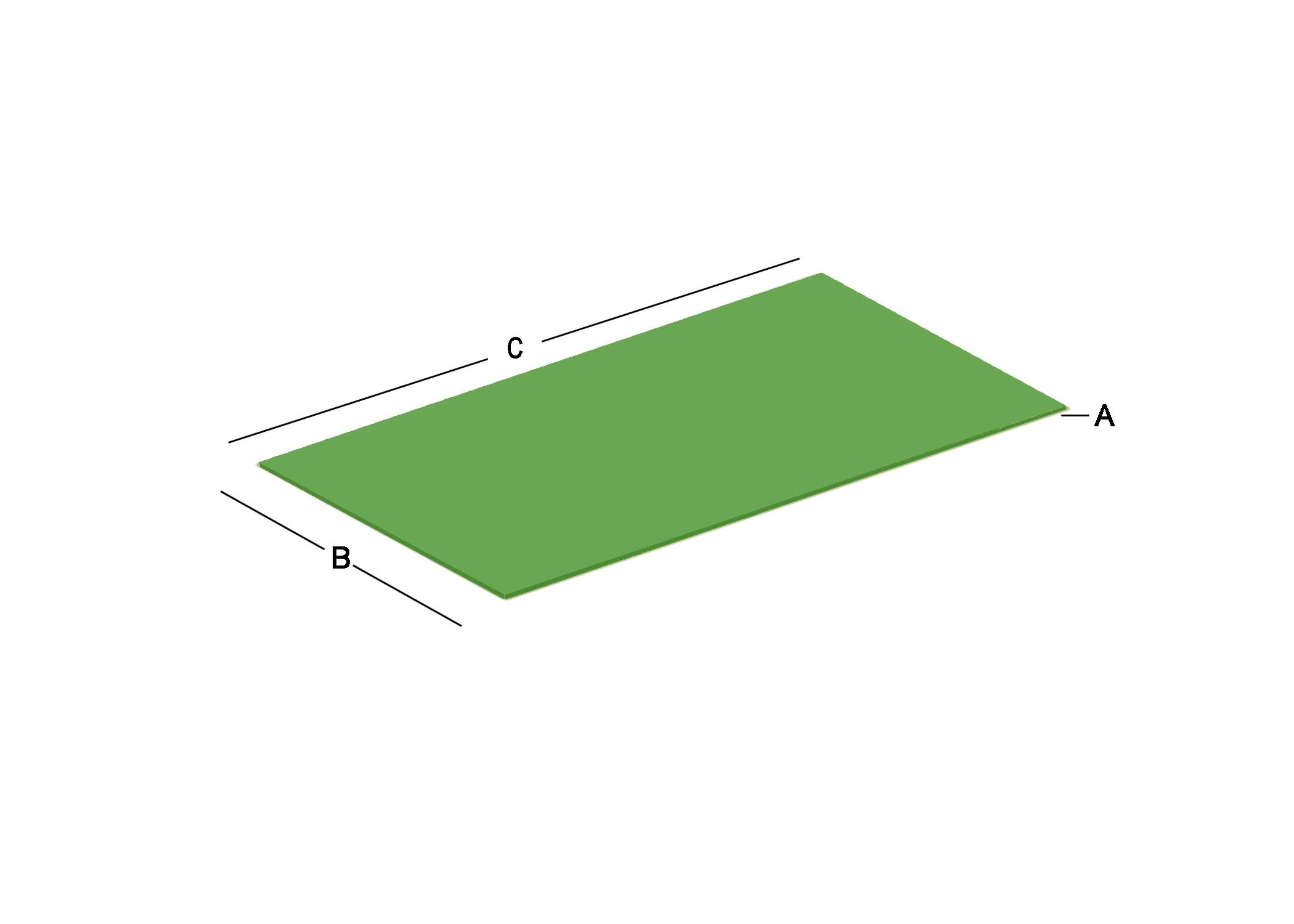

How to Measure
Plate is measured by its Thickness, Width, and Length. Use a tape measure for width and length, and calipers or a micrometer for an accurate thickness reading.
Example: To order this plate, specify "304 Stainless Plate, 3/16" x 48" x 120".
Order Checklist
- Product name and required dimensions (3/16" x 48" x 120")
- Material specification and quantity
- Confirm grade (304/304L) meets requirements
- Surface finish requirements (No. 1 HRAP)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Plate 304 - 3/16" x 48" x 120"
- Material
- 304/304L Stainless Steel
- Standards
- ASTM A240
- Key Properties
- 73,200 PSI tensile, excellent corrosion resistance, excellent formability
- Primary Applications
- Food equipment, architectural trim, structural panels
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Plate in thicknesses from 3/16" to 1/2" and standard sizes including 4'x8' and 4'x10'. This 3/16" x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Plate 304 - 3/16 Inch$67.22
-
-
