Stainless Steel Pipe 304 - Schedule (10) 5 Inch
| Weight | 7.770000 |
|---|---|
| bobco_dimensions_width | 5 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 10 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 20 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 552.8 |
| Thickness | 10 |
| Dimension Length | 240.000000 |
| Dimension Width | 5.000000 |
| Dimension Height | 5.000000 |

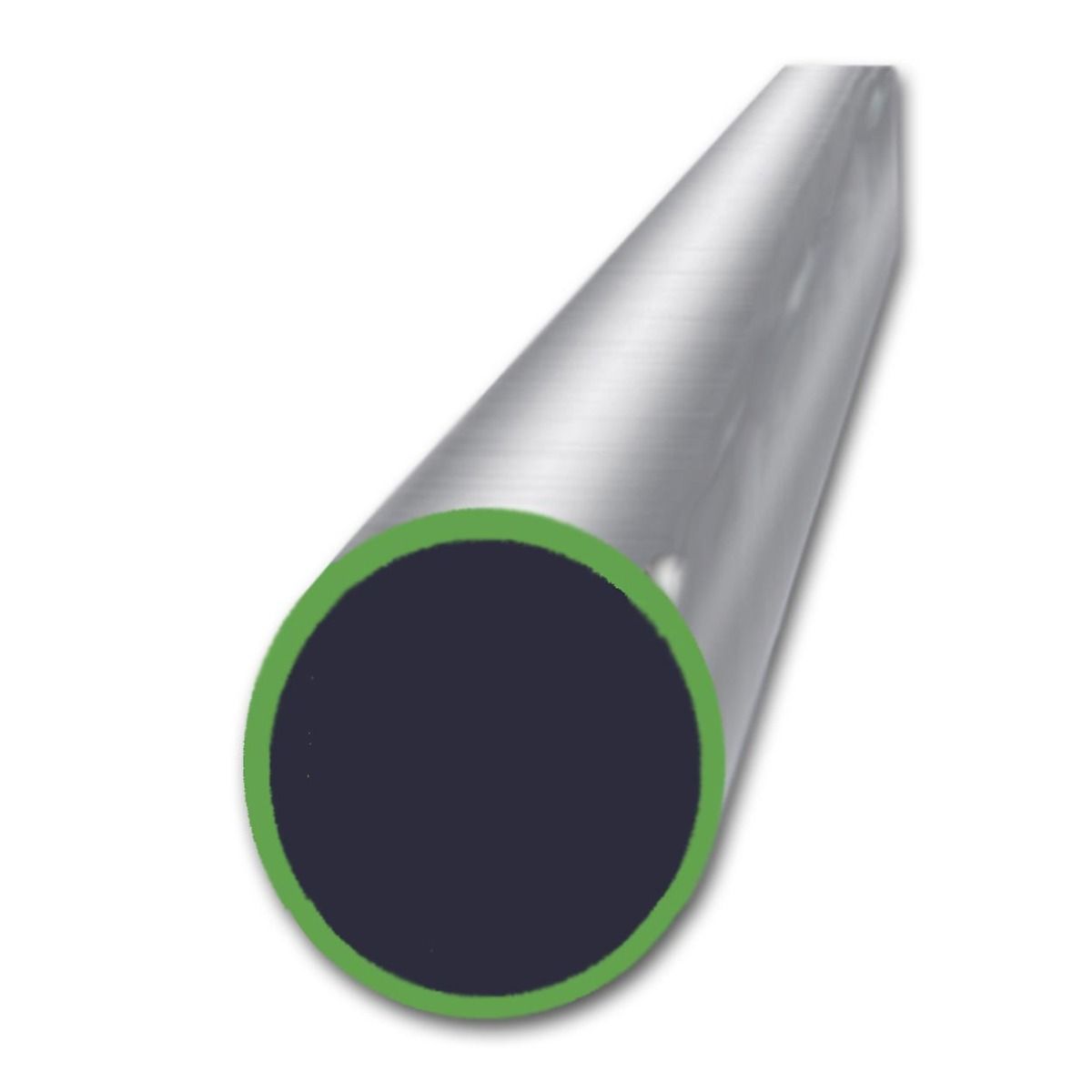

Stainless Steel Pipe 304 - Schedule (10) 5 Inch
This 5-inch NPS Schedule 10 pipe is made from 304 stainless steel, offering an excellent balance of corrosion resistance, strength, and weldability. Conforming to ASTM A312, it's a reliable choice for fluid transport and structural systems in demanding environments. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A312 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Weldability
Type 304 stainless steel pipe is an austenitic chromium-nickel alloy valued for its superior performance in corrosive settings. Manufactured to ASTM A312 standards, it provides a minimum tensile strength of 73,200 PSI and excellent weldability using common fusion methods. Its inherent resistance to oxidation and organic acids makes it a sanitary, low-maintenance solution for a wide range of industrial applications.
As a large-diameter pipe (5" NPS), this product is ideal for high-flow systems and significant structural loads. Common applications include main water lines for treatment plants, industrial process piping in chemical and food processing facilities, and as robust structural columns or supports in architectural and construction projects.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A312
- Strength/Tensile: 73,200 PSI
- Dimensions: 5" NPS, Schedule 10 (0.134" wall), 240" length
- Finish: Mill Finish (Annealed & Pickled)
- Certifications: Mill Test Report (MTR) Available
Applications
- Industrial Processing: Main process piping - handles high-flow transport of corrosive fluids.
- Water Treatment: Distribution and main water lines - long service life and resistance to various water chemistries.
- Structural Engineering: Architectural columns and supports - combines aesthetic appeal with functional strength.
- Food & Beverage: Large-scale transfer lines - sanitary surface and resistance to organic acids.
Target Users
Mechanical engineers, pipe fitters, fabricators, and plant managers rely on 304 Stainless Steel Pipe for durable and corrosion-resistant systems in industrial and commercial projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typically in an annealed and pickled condition, which provides a clean, matte surface suitable for most industrial uses. For applications requiring a specific aesthetic, such as architectural features, polishing services may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Pipe is measured by its Nominal Pipe Size (NPS), which is a North American standard, and its Schedule, which determines the wall thickness. Note that NPS is a nominal identifier and not a direct measurement of the outer diameter.
Example: To order this pipe, specify "304 Stainless Pipe, 5 inch NPS, Schedule 10, 240 inch length".
Order Checklist
- Product name and required dimensions (5" NPS, Sch 10 x 240")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Pipe 304 - Schedule (10) 5 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A312
- Key Properties
- 73,200 PSI tensile, Excellent Corrosion Resistance, Excellent Weldability
- Primary Applications
- Industrial Process Piping, Main Water Lines, Structural Columns
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Steel Pipe in a wide range of sizes from 1/8" to 12" NPS in various schedules. This 5" Schedule 10 size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Pipe 304 - Schedule (10) 5 Inch$69.20
-
-
-
-
