Stainless Steel Flat Bar 304 - 3/16 Inch X 1-1/4 Inch
| Weight | 0.796700 |
|---|---|
| bobco_dimensions_width | 1.25 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.1875 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 41.02 |
| Thickness | 0.1875 |
| Dimension Length | 144.000000 |
| Dimension Width | 1.250000 |
| Dimension Height | 0.187500 |

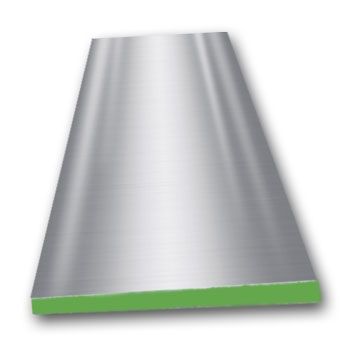

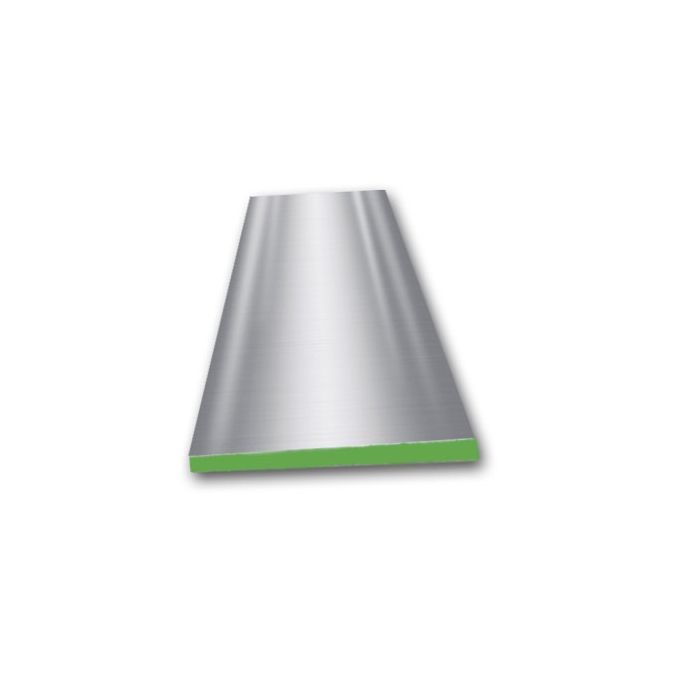

Stainless Steel Flat Bar 304 - 3/16 Inch X 1-1/4 Inch
This 3/16" x 1-1/4" 304 stainless steel flat bar provides a versatile, rectangular profile for fabrication and structural support. Conforming to ASTM A276, it offers an excellent combination of corrosion resistance, strength, and weldability for industrial and architectural applications. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Weldability
Type 304 stainless steel is a versatile chromium-nickel alloy known as "18-8" for its composition, providing excellent resistance to chemical and atmospheric corrosives. This bar is manufactured to meet ASTM A276 standards. In its annealed condition, it is non-magnetic, highly ductile, and exhibits exceptional formability, making it a reliable material for complex fabrication projects.
As a medium-width bar, this 1-1/4" size is perfectly suited for structural bracing, machine ways, wear strips, and equipment framework. Its precise, rectangular profile with sharp corners is ideal for supports, brackets, and base plates where both strength and a clean appearance are important.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 3/16" Thickness x 1-1/4" Width x 144" Length
- Finish: Annealed Mill Finish
- Certifications: MTR Available
Applications
- General Fabrication: Braces, gussets, and base plates - its strength and excellent weldability make it easy to work with.
- Food & Beverage: Equipment framework and supports - hygienic surface resists organic acids and is easy to sterilize.
- Architecture & Construction: Decorative trim, brackets, and support components - offers a clean, modern aesthetic with long-term weather resistance.
- Automotive: Custom brackets and reinforcements - easily formed and welded for specific needs.
Target Users
Fabricators, machinists, welders, and maintenance technicians rely on 304 stainless flat bar for its balanced properties and versatility in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish in an annealed condition, suitable for most fabrication applications. For specific project requirements where appearance is critical, finishes such as a #4 brushed or #8 mirror polish may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (A) and its Width (B). Both dimensions are measured across the rectangular cross-section.
Example: To order this flat bar, specify "Stainless Steel Flat Bar 304, 3/16" x 1-1/4" x 144" length".
Order Checklist
- Product name and required dimensions (3/16" x 1-1/4" x 144")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Annealed Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 3/16 Inch X 1-1/4 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural Bracing, Equipment Framework, Architectural Trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in a wide range of widths and thicknesses, with standard lengths up to 144". This 3/16" x 1-1/4" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Flat Bar 304 - 3/16 Inch X 1-1/4 Inch$13.87
-
-
-
-
