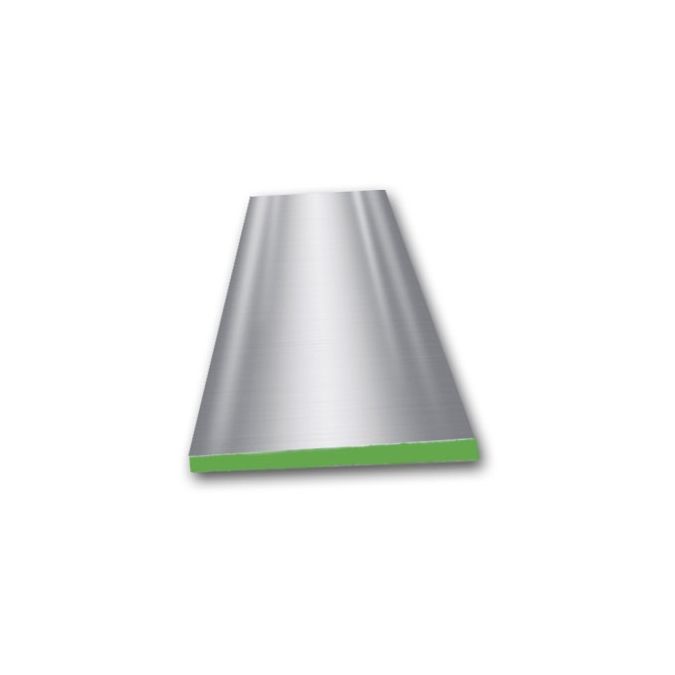

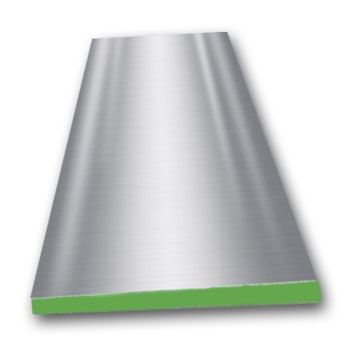

Stainless Steel Flat Bar 304 - 1/8 Inch X 3 Inch
| Weight | 1.275000 |
|---|---|
| bobco_dimensions_width | 3 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.125 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 7 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 96.27 |
| Thickness | 0.125 |
| Dimension Length | 144.000000 |
| Dimension Width | 3.000000 |
| Dimension Height | 0.125000 |
Stainless Steel Flat Bar 304 - 1/8 Inch X 3 Inch
This 3" wide by 1/8" thick 304 Stainless Steel Flat Bar provides an excellent combination of strength, weldability, and corrosion resistance. Certified to ASTM A276, it offers 73,200 PSI tensile strength, making it ideal for structural supports and food-grade fabrication. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Weldability & Corrosion Resistance
Type 304 stainless steel is the most common austenitic chromium-nickel alloy, known as "18-8" for its 18% chromium and 8% nickel content. Supplied in an annealed condition, it is non-magnetic, highly ductile, and conforms to ASTM A276 standards. This composition provides remarkable resistance to atmospheric and chemical corrosion, making it a reliable material for a wide range of industrial and commercial applications.
As a medium-sized 3" x 1/8" flat bar, this product is perfectly suited for structural bracing, machine ways, equipment framework, and wear strips. Its substantial width provides stability for mounting and support, while the 1/8" thickness maintains a good balance between strength and formability for fabrication projects.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 1/8" Thickness x 3" Width x 144" Length
- Finish: Mill Finish, Annealed
- Certifications: Mill Test Report (MTR) Available
Applications
- General Fabrication: Gussets, base plates, and brackets - its 3" width offers a stable surface for connections.
- Food & Beverage: Equipment framework and supports - hygienic surface and resistance to organic acids.
- Architecture & Construction: Decorative trim, handrail components, and structural supports - good appearance and weather resistance.
- Automotive: Custom frame components and brackets - excellent weldability for strong assemblies.
Target Users
Fabricators, welders, machinists, and construction professionals rely on 304 Stainless Flat Bar for its durability and versatility in structural and aesthetic applications throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish in an annealed condition, characterized by a non-reflective, slightly dull appearance. For specific project requirements, other finishes such as a #4 brushed or #8 mirror polish may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (A) and Width (B). Use calipers or a tape measure to verify dimensions before ordering.
Example: To order this flat bar, specify "304 Stainless Flat Bar, 1/8 inch by 3 inch by 144 inch length".
Order Checklist
- Product name and required dimensions (1/8" x 3" x 144")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 1/8 Inch X 3 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Structural bracing, equipment frames, base plates
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in widths from 1/2" to 3-1/2" and thicknesses from 1/16" to 1/8". This 1/8" x 3" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Flat Bar 304 - 1/8 Inch X 3 Inch$20.90
-
-
