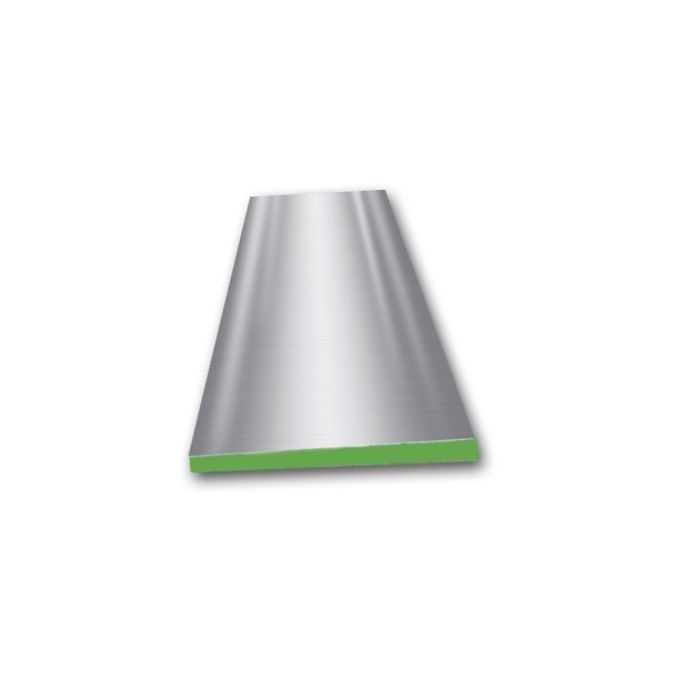

Stainless Steel Flat Bar 304 - 1/4 Inch X 1/2 Inch
| Weight | 0.425000 |
|---|---|
| bobco_dimensions_width | 0.5 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.25 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 36.4 |
| Thickness | 0.25 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.500000 |
| Dimension Height | 0.250000 |

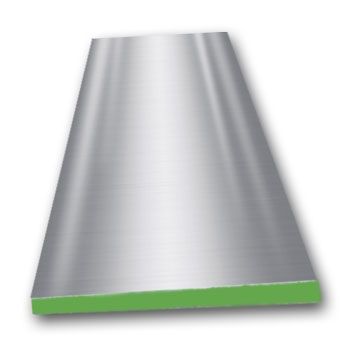

304 Stainless Steel Flat Bar - 1/4" x 1/2" x 144"
This 1/4" x 1/2" 304 Stainless Steel Flat Bar is a versatile, general-purpose material specified to ASTM A276. It combines 73,200 PSI tensile strength with excellent corrosion resistance and weldability, making it ideal for structural braces, trim, and custom fabrication projects. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Weldability
Type 304 is the most common austenitic chromium-nickel stainless steel, known as "18-8" for its composition. This grade complies with ASTM A276 and delivers a combination of strength, corrosion resistance, and ductility. In its annealed condition, it is non-magnetic and can be easily welded and formed, making it a reliable choice for a wide array of fabricated parts.
As a small-profile flat bar, this 1/4" x 1/2" size is particularly well-suited for light structural and decorative applications. It is frequently used for creating custom brackets, support straps, shims, architectural trim, and small frame stock where both strength and a clean appearance are important.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 1/4" Thickness x 1/2" Width x 144" Length
- Finish: Annealed Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- General Fabrication: Brackets, straps, and gussets - small profile is easy to cut, drill, and form.
- Architecture & Construction: Decorative trim, handrail components, and supports - excellent finish and weather resistance.
- Food & Beverage: Equipment framework and braces - hygienic surface resists organic acids.
- Automotive: Custom mounting brackets and non-critical hardware - good corrosion resistance for various components.
Target Users
Fabricators, contractors, maintenance technicians, and engineers rely on 304 Stainless Flat Bar for its versatility and durability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with an annealed mill finish, characterized by a smooth, semi-dull surface. For specific project requirements where a different aesthetic is needed, finishes such as brushed (#4) or polished may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Thickness (A) and its Width (B). Use calipers to ensure precise measurements for your project.
Example: To order this flat bar, specify "304 Stainless Flat Bar, 1/4 inch thick by 1/2 inch wide".
Order Checklist
- Product name and required dimensions (1/4" x 1/2")
- Material specification and quantity
- Confirm grade (304) meets corrosion and strength requirements
- Surface finish requirements (Annealed Mill Finish)
- Certifications required (Mill Test Report)
- Special cutting or delivery requirements
Quick Facts
- Product
- Stainless Steel Flat Bar 304 - 1/4 Inch X 1/2 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Brackets, Straps, Architectural Trim, Framework
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Flat Bar in widths from 1/2" to 3-1/2" and lengths up to 144". This 1/4" x 1/2" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Flat Bar 304 - 1/4 Inch X 1/2 Inch$10.69
-
-
-
-
