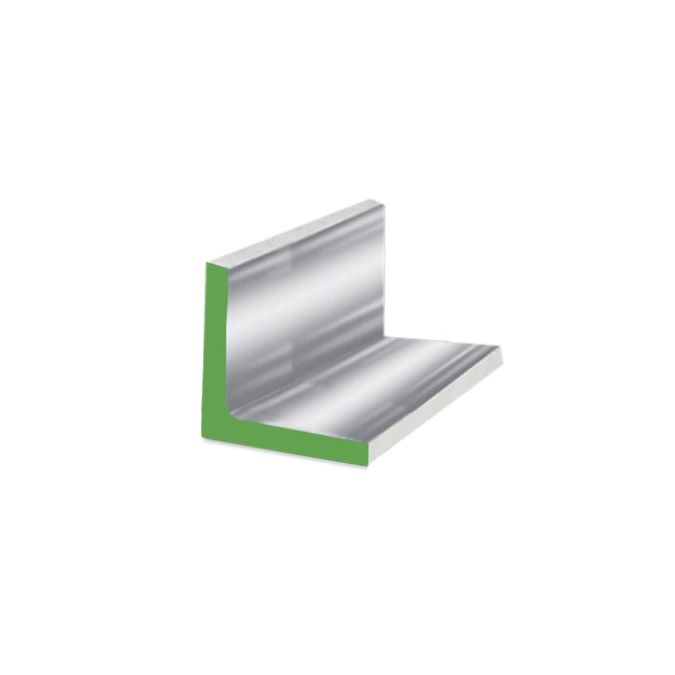

Stainless Steel Angle 304 - 4 Inch X 4 Inch X 1/4 Inch
| Weight | 6.600000 |
|---|---|
| bobco_dimensions_width | 4 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.25 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 40 |
| addon_charges_simple | 15 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 943.27 |
| Thickness | 0.25 |
| Dimension Length | 240.000000 |
| Dimension Width | 4.000000 |
| Dimension Height | 4.000000 |
Stainless Steel Angle 304 - 4 Inch X 4 Inch X 1/4 Inch
This 4" x 4" x 1/4" 304 Stainless Steel Angle provides robust structural support with excellent corrosion resistance. Conforming to ASTM A276, it features a 73,200 PSI tensile strength and superior weldability, making it ideal for heavy structural frames and industrial supports. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance
Type 304 is the most versatile austenitic stainless steel, known as "18-8" for its 18% chromium and 8% nickel composition. This chemistry provides exceptional resistance to atmospheric corrosion and many chemical agents. Compliant with ASTM A276 standards, this angle is non-magnetic in the annealed condition and maintains its strength and toughness over a wide temperature range, ensuring reliable performance in demanding environments.
As a large 4" x 4" profile, this angle is engineered for substantial load-bearing applications. It is a primary component for building frames, heavy equipment bases, industrial support structures, and large-scale architectural elements where both structural integrity and long-term durability against corrosion are essential.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 4" Leg x 4" Leg x 1/4" Thickness x 240" Length
- Finish: Mill Finish, Annealed
- Certifications: Mill Test Report (MTR) available upon request.
Applications
- Structural Engineering: Building frames, columns, and lintels - high strength and corrosion resistance for longevity.
- Industrial Fabrication: Heavy equipment bases, conveyor system frames, and machinery supports - handles significant loads.
- Architectural Construction: Large-scale corner guards, support brackets, and exposed structural elements.
- Food & Beverage: Framework for large tanks and processing equipment - sanitary and non-reactive surface.
Target Users
Structural engineers, industrial fabricators, and construction contractors rely on 304 Stainless Steel Angle for its blend of strength and durability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typical for structural stainless steel shapes. This finish may have some minor surface imperfections from the manufacturing process. For applications requiring a specific aesthetic, finishes such as a #4 brushed or #8 mirror polish may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
An angle is defined by three measurements: Leg A, Leg B, and Thickness. Measure the outside dimension of each leg and the thickness of the material.
Example: To order this angle, specify "304 Stainless Angle, 4 inch by 4 inch by 1/4 inch thickness".
Order Checklist
- Product name and required dimensions (4" x 4" x 1/4")
- Material specification and quantity (in feet or pieces)
- Confirm grade (304) meets project requirements
- Surface finish requirements (Standard Mill Finish)
- Certifications required (Mill Test Report)
- Cutting, handling, or delivery instructions
Quick Facts
- Product
- Stainless Steel Angle 304 - 4 Inch X 4 Inch X 1/4 Inch
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, excellent weldability, excellent corrosion resistance
- Primary Applications
- Heavy structural framing, industrial supports, equipment bases
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Angle in leg sizes from 1/2" to 6" with various thicknesses. This 4" x 4" x 1/4" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Angle 304 - 4 Inch X 4 Inch X 1/4 Inch$72.67
-
