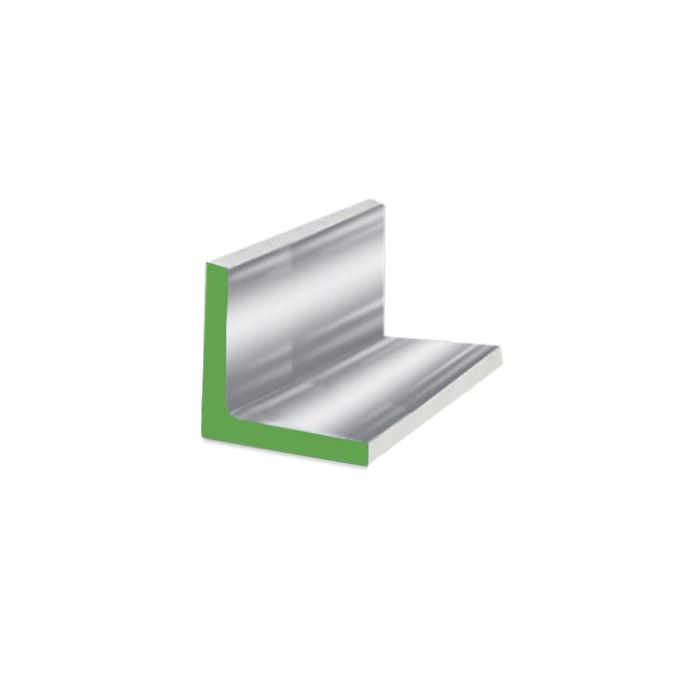

Stainless Steel Angle 304 - 3/4 Inch X 3/4 Inch X 1/8 Inch
| Weight | 0.590000 |
|---|---|
| bobco_dimensions_width | 0.75 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.125 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 55.99 |
| Thickness | 0.125 |
| Dimension Length | 240.000000 |
| Dimension Width | 0.750000 |
| Dimension Height | 0.750000 |
Stainless Steel Angle 304 - 3/4 Inch X 3/4 Inch X 1/8 Inch
This 3/4" x 3/4" x 1/8" 304 Stainless Steel Angle combines high strength and excellent corrosion resistance in a versatile structural shape. Certified to ASTM A276, it is ideal for fabrication, construction, and architectural applications requiring durability and a clean appearance. In stock Los Angeles.
- 304 Stainless Steel Construction
- ASTM A276 Certified
- 73,200 PSI Tensile Strength
- Excellent Corrosion Resistance & Weldability
Type 304 is the most versatile austenitic stainless steel, known as '18-8' for its 18% chromium and 8% nickel composition. This material delivers an excellent combination of strength, corrosion resistance, and fabricability. Conforming to ASTM A276, this angle is non-magnetic in its annealed condition and maintains its properties in a wide range of temperatures, making it a reliable choice for diverse applications.
The small 3/4" leg size is perfectly suited for light-duty applications. Common uses include fabricating custom equipment guards, reinforcing corners on panels and containers, creating support brackets for shelving, and serving as durable, corrosion-resistant architectural trim for both interior and exterior projects.
Specifications
- Material: 304 Stainless Steel
- Standards: ASTM A276
- Strength/Tensile: 73,200 PSI
- Dimensions: 3/4" x 3/4" Legs, 1/8" Thickness
- Finish: Mill Finish
- Certifications: Mill Test Report (MTR) available upon request
Applications
- Architectural & Construction: Corner guards and trim - corrosion resistance prevents staining on building exteriors.
- General Fabrication: Light framing for workbenches and carts - easy to weld and strong enough for non-heavy loads.
- Food Service Equipment: Brackets and supports - non-reactive surface is easy to sanitize.
- Marine & Automotive: Decorative trim and non-structural supports - provides a clean, rust-free finish in mild environments.
Target Users
Fabricators, contractors, artists, and maintenance technicians rely on 304 Stainless Angle for its versatility and durability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, typical for hot-rolled structural shapes. This may include some surface texture and discoloration from the manufacturing process. For specific project requirements, other finishes such as a brushed #4 polish may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
An angle is measured by its two legs (A & B) and its thickness (C). Since this is an equal leg angle, both legs are the same size. Measure the outside flat dimension of each leg and the material thickness with calipers.
Example: To order this angle, specify "304 Stainless Angle, 3/4 inch x 3/4 inch x 1/8 inch thickness".
Order Checklist
- Product name and required dimensions (3/4" x 3/4" x 1/8")
- Material specification and quantity
- Confirm grade (304) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Stainless Steel Angle 304 - 3/4" X 3/4" X 1/8"
- Material
- 304 Stainless Steel
- Standards
- ASTM A276
- Key Properties
- 73,200 PSI tensile, Excellent Weldability, Excellent Corrosion Resistance
- Primary Applications
- Light framing, brackets, corner guards, trim
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 304 Stainless Angle in leg sizes from 1/2" to over 3", with various thicknesses. This 3/4" x 3/4" x 1/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Stainless Steel Angle 304 - 3/4 Inch X 3/4 Inch X 1/8 Inch$13.47
-
-
