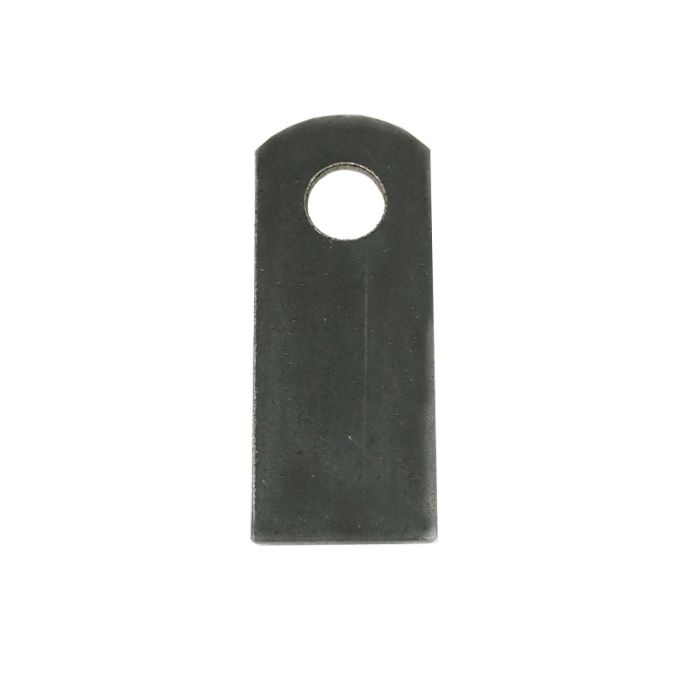

1-1/2" x 2-1/2" Large Welding Tab, 1/8" Thick, 3/8" Hole
- Buy 15 or more $0.34 Save 42%
- Buy 20 or more $0.29 Save 51%
- Buy 50 or more $0.24 Save 59%
- Buy 300 or more $0.22 Save 63%
| Weight | 0.044375 |
|---|
1-1/2" x 2-1/2" LARGE WELDING TAB, THICKNESS: 1/8", HOLE SIZE: 3/8"
Engineered for strength and convenience, this large welding tab provides a secure and reliable mounting point for custom fabrication projects. Made from durable, weldable steel, it is ideal for creating attachment points, gussets, and brackets in structural and ornamental applications.
- Weldable Low-Carbon Steel
- 1/8" (0.125")
- 3/8" Diameter
- Conforms to AWS Welding Practices
This welding tab is fabricated from high-quality, low-carbon steel, chosen for its excellent weldability and formability. The material composition ensures a strong, ductile weld joint when used with common welding processes like MIG (GMAW), TIG (GTAW), and Stick (SMAW), compatible with standard electrodes such as AWS 7018. Its 1/8" thickness provides substantial strength for light to medium-duty applications without adding excessive weight. The raw steel finish is ready for surface preparation, welding, and subsequent painting or coating to match project requirements for corrosion resistance.
Designed as a versatile fabrication component, this large welding tab is essential for a wide range of metalworking projects. It is commonly used to create mounting points for suspension components, brackets for machinery, connection points for framework, and support gussets in custom chassis or industrial equipment. Fabricators in Los Angeles rely on these tabs for MRO tasks, trailer construction, gate and fence fabrication, and creating custom fixtures. The pre-drilled 3/8" hole simplifies assembly, saving time and ensuring accurate alignment for bolting applications.
Specifications
- Material: Weldable Low-Carbon Steel (e.g., A36 equivalent)
- Standards: Conforms to AWS D1.1 (Structural Welding Code) practices
- Strength/Tensile: Typical for Low-Carbon Steel (~58,000 psi)
- Dimensions: Overall: 1-1/2" x 2-1/2"; Thickness: 1/8" (0.125"); Hole Diameter: 3/8"
- Finish: Raw / Mill Finish (uncoated)
- Certifications: Material Test Reports (MTRs) available upon request
Applications
- Automotive Fabrication: Creating custom brackets, suspension mounts, and chassis reinforcements.
- Industrial Equipment: Adding connection points for guards, panels, and accessories on machinery.
- Structural & Architectural: Fabricating custom handrail fittings, gate hardware, and support gussets.
- MRO (Maintenance, Repair, Operations): Repairing broken equipment frames and reinforcing metal structures.
Target Users
This product is ideal for professional fabricators, welding shops, MRO technicians, and dedicated hobbyists who require reliable, pre-fabricated components for custom metalworking projects in the greater Los Angeles area.
Finish Options
Our large welding tabs are supplied in a raw, uncoated mill finish, which is ideal for immediate welding. This clean surface can be easily prepped for any desired coating after fabrication, including industrial-grade primers, DTM paints, powder coating, or zinc plating for enhanced corrosion resistance.
How to Measure
Specify welding tabs by their overall dimensions (Length x Width), material thickness, and hole diameter. Ensure the thickness is appropriate for the load requirements of your application and that the hole size matches your intended bolt or hardware.
Example: 'Large Welding Tab, 2-1/2" x 1-1/2", 1/8" Thick, with one 3/8" Hole.'
Order Checklist
- Product name and required dimensions
- Grade/material specification and quantity
- Cutting instructions (if applicable)
- Surface finish requirements
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 1-1/2" x 2-1/2" Large Welding Tab
- Material
- Weldable Low-Carbon Steel
- Standards
- AWS D1.1 Practices
- Key Properties
- 1/8" thick, 3/8" hole, excellent weldability for MIG/TIG/Stick, ready for fabrication.
- Primary Applications
- Fabrication, MRO, Automotive, Structural Brackets
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock a wide variety of welding tabs in different shapes, thicknesses, and hole sizes to meet diverse fabrication needs. Common thicknesses range from 1/8" to 1/4" with various hole diameters.
Custom sizes and cutting services are available.
Contact for Sizing-
1-1/2" x 2-1/2" Large Welding Tab, 1/8" Thick, 3/8" Hole$0.59
-
-
-
-
