Hot Rolled Steel Round Tube - 1-1/4 Inch X 0.065
| Weight | 0.822500 |
|---|---|
| bobco_dimensions_width | 1.25 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.065 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 26 |
| Thickness | 0.065 |
| Dimension Length | 240.000000 |
| Dimension Width | 1.250000 |
| Dimension Height | 1.250000 |

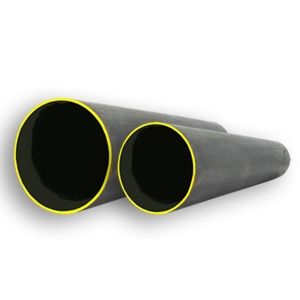

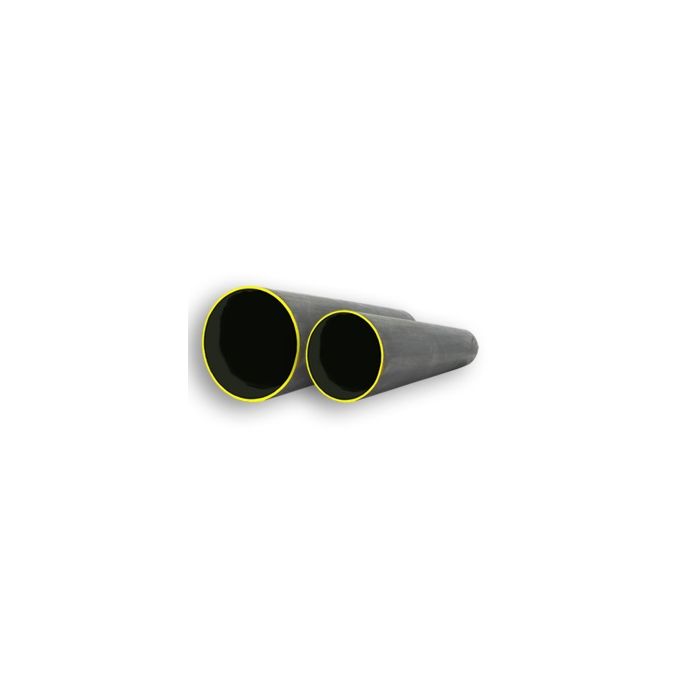

A500B Hot Rolled Steel Round Tube - 1-1/4" OD x 0.065" Wall x 240"
This 1-1/4" OD x 0.065" wall Hot Rolled Steel Round Tube is a versatile structural material produced to ASTM A500 Grade B standards. It offers a balance of strength, formability, and excellent weldability, making it a reliable choice for general fabrication and structural frames. In stock Los Angeles.
- A500B Hot Rolled Steel Construction
- ASTM A500 Grade B Certified
- 58,000 PSI Tensile Strength
- Excellent Weldability
Hot rolled round tubing is formed from steel rolled at high temperatures, resulting in a product with a scaled surface finish but excellent formability. This tube conforms to ASTM A500 Grade B, a standard for structural applications, ensuring a minimum yield strength of 46,000 PSI. Its composition makes it easily weldable using common techniques, ideal for riveted or bolted construction.
As a medium-sized tube, the 1-1/4" OD is perfectly suited for manufacturing durable equipment frames, automotive roll cages, support columns, and industrial handrails. Its strength-to-weight ratio provides reliable structural integrity for applications requiring a balance of performance and material efficiency.
Specifications
- Material: A500B Hot Rolled Steel
- Standards: ASTM A500 Grade B
- Strength/Tensile: 58,000 PSI
- Dimensions: 1-1/4" OD x 0.065" Wall x 240" Length
- Finish: Mill Finish (Scaled)
- Certifications: MTR Available
Applications
- Construction: Support columns, structural framing, and scaffolding - due to its load-bearing capacity and cost-effectiveness.
- Automotive: Roll cages and chassis reinforcements - for its high strength and weldability.
- Industrial Machinery: Equipment frames, conveyor rollers, and support legs - for its durability and resistance to stress.
- Architectural: Handrails and guardrails - combines structural strength with a raw, industrial aesthetic.
Target Users
Fabricators, welders, construction contractors, and automotive specialists rely on A500B round tube for its strength and weldability in structural projects throughout the Los Angeles area.
Finish Options
This product comes standard with a dark, scaled mill finish characteristic of hot rolled steel. The raw steel surface will rust if exposed to the elements. For corrosion protection, it must be properly cleaned to remove scale and then painted, powder-coated, or galvanized. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Round tubing is measured by its Outside Diameter (OD) and its Wall Thickness. A third measurement, the Inside Diameter (ID), can be calculated by subtracting twice the wall thickness from the OD.
Example: To order this round tube, specify "Hot Rolled Round Tube, 1-1/4" OD x 0.065" Wall x 240" Length".
Order Checklist
- Product name and required dimensions (1-1/4" OD x 0.065" Wall x 240")
- Material specification and quantity
- Confirm grade (A500B) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Steel Round Tube - 1-1/4 Inch X 0.065
- Material
- A500B Hot Rolled Steel
- Standards
- ASTM A500 Grade B
- Key Properties
- 58,000 PSI tensile, Excellent Weldability, High Strength-to-Weight
- Primary Applications
- Structural Frames, Roll Cages, Handrails
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Round Tube in ODs from 1/2 inch with a variety of wall thicknesses. This 1-1/4" OD x 0.065" Wall size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Steel Round Tube - 1-1/4 Inch X 0.065$10.70
-
-
-
-
