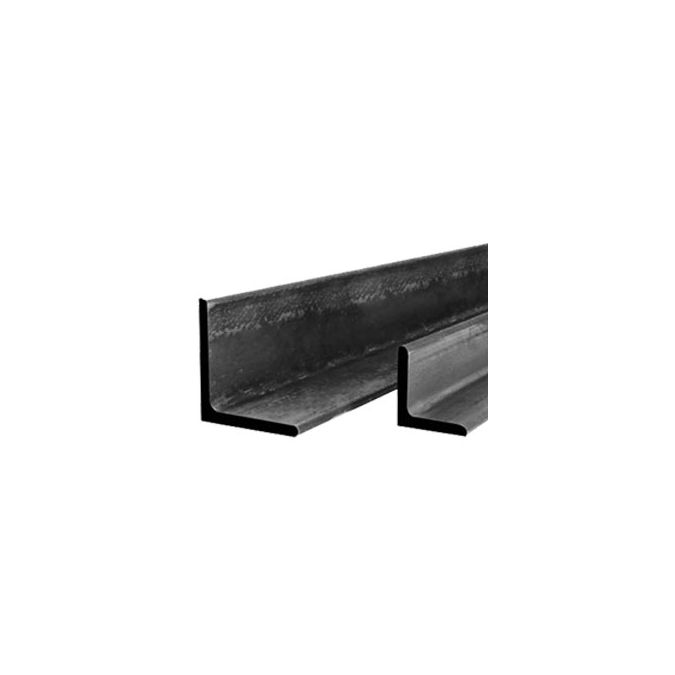

Hot Rolled Steel Angle - 2-1/2 Inch X 2-1/2 Inch X 3/16 Inch
| Weight | 3.070000 |
|---|---|
| bobco_dimensions_width | 2.5 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.1875 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 20 |
| Thickness | 0.1875 |
| Dimension Length | 240.000000 |
| Dimension Width | 2.500000 |
| Dimension Height | 2.500000 |
| FULL LENGTH PRICE | 65.86 |
| full_length | 20 |
A36 Hot Rolled Steel Angle - 2-1/2" X 2-1/2" X 3/16"
This 2-1/2" x 2-1/2" x 3/16" hot rolled steel angle is a versatile structural shape conforming to ASTM A36. Offering a minimum yield strength of 36,000 PSI and excellent weldability, it is a foundational material for frames, brackets, and supports in construction and manufacturing. In stock Los Angeles.
- A36 Steel Construction
- ASTM A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability
Hot rolled A36 steel angle is produced by forming steel at high temperatures, resulting in a product with a scaled surface and slightly rounded corners. This cost-effective process ensures compliance with ASTM A36 specifications, delivering a reliable blend of strength, ductility, and exceptional weldability. It is a low-carbon steel, making it easy to form and fabricate using standard shop methods.
As a medium-sized profile, this 2-1/2" angle is ideal for structural framing, equipment bases, shelving supports, and heavy-duty brackets. Its L-shape provides significant rigidity for bracing applications in trailers, machinery, and building construction where robust performance is required.
Specifications
- Material: A36 Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 2-1/2" Leg x 2-1/2" Leg x 3/16" Thickness
- Finish: Hot Rolled (Mill Scale)
- Certifications: MTR Available
Applications
- Structural Framing: Bracing, gussets, and supports - excellent strength-to-weight ratio.
- Equipment Manufacturing: Machinery bases, stands, and protective frames - durable and easy to weld.
- Construction: Lintels over small openings and concrete form bracing - reliable load-bearing capacity.
- Industrial Shelving: Uprights and cross-beams for heavy-duty storage racks - cost-effective strength.
Target Users
Fabricators, welders, and construction contractors rely on A36 steel angle for its versatility and strength in structural applications throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a blue-gray scale on the surface. This scale must be removed by grinding or sandblasting before painting or coating. For specific project requirements, finishes such as galvanizing or powder coating may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.

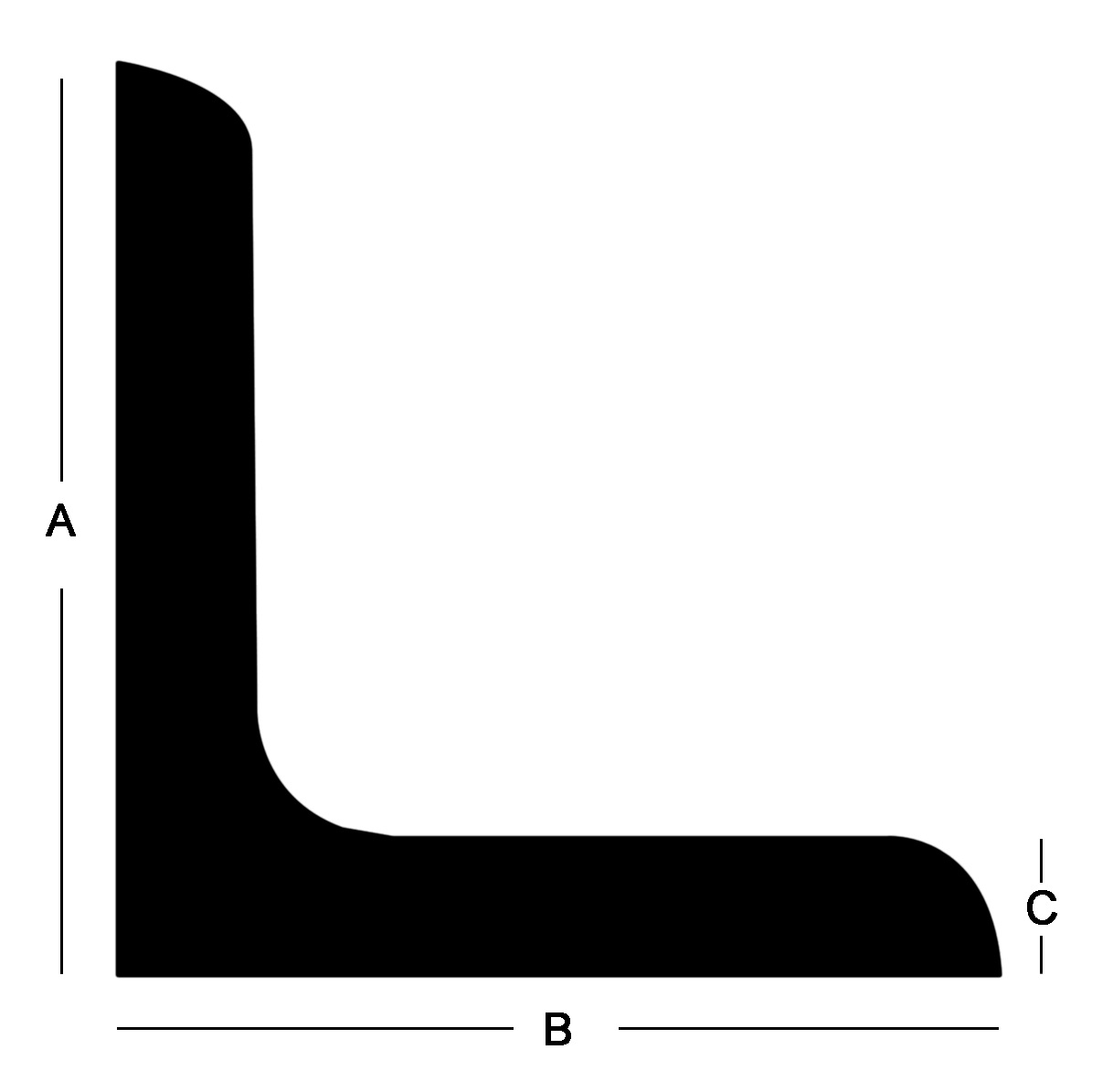

How to Measure
Angle is measured by its Leg (A), Leg (B), and Thickness (C). For an equal leg angle like this one, both legs are the same dimension. Measurements are taken from the outer edges.
Example: To order this angle, specify "A36 Angle, 2-1/2 inch x 2-1/2 inch x 3/16 inch thick".
Order Checklist
- Product name and required dimensions (2-1/2" x 2-1/2" x 3/16")
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Steel Angle - 2-1/2 Inch X 2-1/2 Inch X 3/16 Inch
- Material
- A36 Steel
- Standards
- ASTM A36
- Key Properties
- 58,000-80,000 PSI tensile, excellent weldability, good machinability
- Primary Applications
- Structural framing, equipment bases, industrial shelving
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Hot Rolled Angle in leg sizes from 1/2" to 6" and various thicknesses. This 2-1/2" x 2-1/2" x 3/16" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Steel Angle - 2-1/2 Inch X 2-1/2 Inch X 3/16 Inch$2.53
-
-
-
-
