Hot Rolled Standard I-Beam - 6 X 12.5
| Weight | 12.500000 |
|---|---|
| bobco_dimensions_width | 12.5 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.23 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 3 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 20 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 321.75 |
| Thickness | 0.23 |
| Dimension Length | 240.000000 |
| Dimension Width | 12.500000 |
| Dimension Height | 6.000000 |

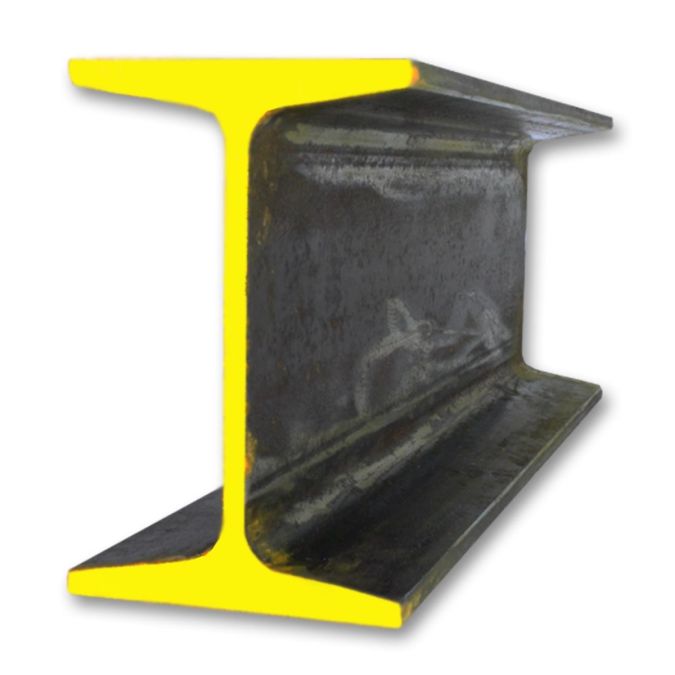

A36 Hot Rolled I-Beam - 6" x 12.5 lbs/ft x 20'
This 6" x 12.5 lbs/ft Standard I-Beam is a versatile structural component manufactured from hot rolled A36 steel. Conforming to ASTM A36 specifications, it offers a minimum 36,000 PSI yield strength, excellent ductility, and superior weldability for general construction and industrial fabrication. In stock Los Angeles.
- A36 Steel Construction
- ASTM A36 Certified
- 36,000 PSI Yield Strength
- Excellent Weldability & Formability
Hot rolled A36 I-beams, also known as S-beams, are a fundamental component in structural steel projects. Manufactured through a hot rolling process, these beams offer excellent formability and ductility with a guaranteed minimum yield strength of 36,000 PSI, ensuring predictable performance under structural stress. The 'I' shape is highly efficient for resisting bending loads and shear forces.
As a large structural shape, this 6" beam is ideal for heavy-duty applications. Its size and strength make it a primary choice for building frames, industrial supports, mezzanine main beams, and bases for heavy machinery where rigidity and high load capacity are critical design requirements.
Specifications
- Material: A36 Steel
- Standards: ASTM A36
- Strength/Yield: 36,000 PSI (min)
- Dimensions: 6" Height x 3.330" Flange Width x 0.230" Web Thickness (12.5 lbs/ft)
- Finish: Hot Rolled Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- Construction: Building frames and roof support trusses - for its high load-bearing capacity.
- Industrial Equipment: Machinery bases and support frames - for excellent rigidity and vibration damping.
- Mezzanines: Main support beams and floor joists - for creating strong, elevated platforms.
- Infrastructure: Crane runway beams and hoist supports - for resisting dynamic and static loads.
Target Users
Structural engineers, steel fabricators, and general contractors rely on A36 I-Beams for predictable strength and ease of fabrication in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, which includes a characteristic dark mill scale. This scale should be removed by grinding or abrasive blasting before painting or coating. For corrosion protection in exterior environments, A36 steel can be primed, painted, or hot-dip galvanized. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

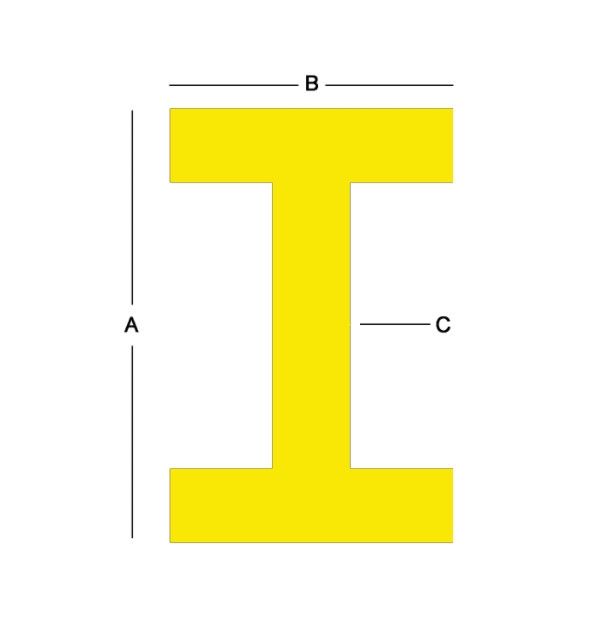

An I-Beam is defined by its Height (the overall vertical dimension), Flange Width, and Web Thickness. It is commercially specified by its nominal height and weight per foot (lbs/ft).
Example: To order this beam, specify "S-Beam, 6" x 12.5 lbs/ft x 20' length".
Order Checklist
- Product name and required dimensions (6" x 12.5 lbs/ft x 20')
- Material specification and quantity
- Confirm grade (A36) meets engineering requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling, cutting, or delivery requirements
Quick Facts
- Product
- Hot Rolled Standard I-Beam - 6 X 12.5
- Material
- A36 Steel
- Standards
- ASTM A36
- Key Properties
- 36,000 PSI yield, excellent weldability, good formability
- Primary Applications
- Building frames, machinery bases, mezzanine supports
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled I-Beams in heights from 3" to 6" and standard 20 ft lengths. This 6" x 12.5 lbs/ft size is available for immediate pickup in Los Angeles.
Custom cutting services available.
