Hot Rolled Standard I-Beam - 5 X 10
| Weight | 10.000000 |
|---|---|
| bobco_dimensions_width | 5 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.21 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 3 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 14 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 257.4 |
| Thickness | 0.21 |
| Dimension Length | 240.000000 |
| Dimension Width | 5.000000 |
| Dimension Height | 3.000000 |

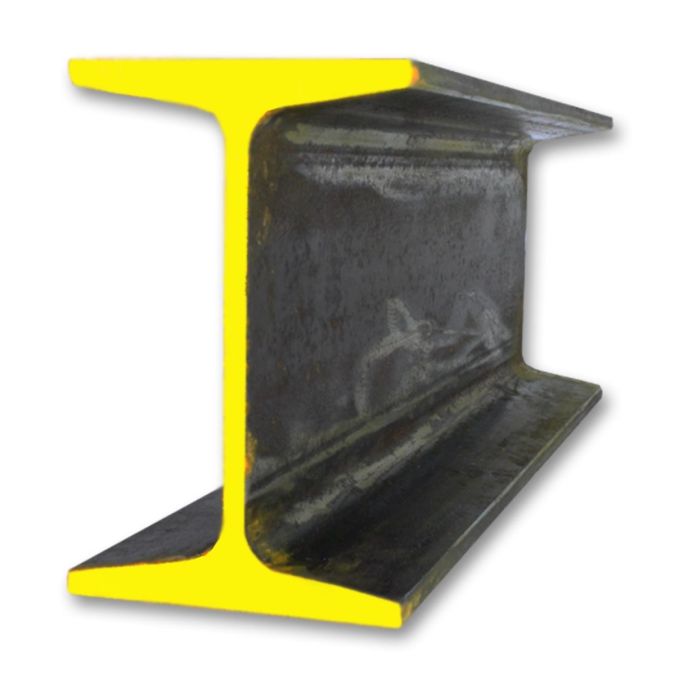

A36 Hot Rolled I-Beam - 5" x 10 lbs/ft x 20'
This 5" x 10 lbs/ft A36 steel I-beam is a standard structural section for general construction and industrial applications. Conforming to ASTM A36, it provides a reliable 36,000 PSI minimum yield strength and excellent weldability, making it ideal for frames, supports, and girders. In stock Los Angeles.
- A36 Carbon Steel Construction
- ASTM A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability and Formability
A36 hot rolled I-beams, also known as Standard or S-beams, are manufactured to ASTM A36 specifications for structural carbon steel. The hot rolling process results in a rougher surface finish but imparts excellent formability and ductility. This 5" I-beam features a guaranteed minimum yield strength of 36,000 PSI, ensuring predictable performance under bending and shear loads.
As a large structural section, this 5-inch I-beam is suited for heavy-duty applications. It is commonly used for building frames, mezzanine floor joists, machinery bases, and main support beams in commercial and industrial construction where high load-bearing capacity is required.
Specifications
- Material: A36 Carbon Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 5" Height x 3" Flange Width x 0.210" Web x 20' Length
- Finish: Hot Rolled (Mill Finish)
- Certifications: MTR Available
Applications
- Commercial Construction: Building frames and roof trusses - for high load-bearing capacity.
- Industrial Equipment: Heavy machinery bases and support frames - for superior rigidity and vibration damping.
- Material Handling: Crane runway beams and hoist supports - resisting heavy dynamic loads.
- Infrastructure: Support members and girders for mezzanines and platforms - for creating strong elevated structures.
Target Users
Structural fabricators, general contractors, and heavy equipment manufacturers rely on A36 I-Beams for robust, weldable structural components in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a rougher, scaled surface. This surface must be cleaned via grinding or sandblasting before painting or coating. For enhanced corrosion protection, priming, painting, or galvanizing services can be arranged. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Standard I-beams are specified by their Height (A) and Weight per Foot. This is a 5" x 10 lbs/ft beam. Other key dimensions include the Flange Width (B) and Web Thickness (C).
Example: To order this I-Beam, specify "A36 I-Beam, 5" x 10 lbs/ft x 20' length".
Order Checklist
- Product name and required dimensions (5" x 10 lbs/ft x 20')
- Material specification and quantity
- Confirm grade (A36) meets engineering requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Standard I-Beam - 5" x 10 lbs/ft
- Material
- A36 Carbon Steel
- Standards
- ASTM A36
- Key Properties
- 36,000 PSI min yield, excellent weldability, high strength
- Primary Applications
- Building frames, machinery bases, support girders
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 I-Beams in heights from 3" to 5" and standard 20 ft lengths. This 5" x 10 lbs/ft size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Standard I-Beam - 5 X 10$37.70
-
-
