Hot Rolled Diamond Plate - 3/16 Inch
| Weight | 8.700000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 0.1875 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 x 10 |
| FULL LENGTH PRICE | 429.78 |
| Thickness | 0.1875 |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.187500 |

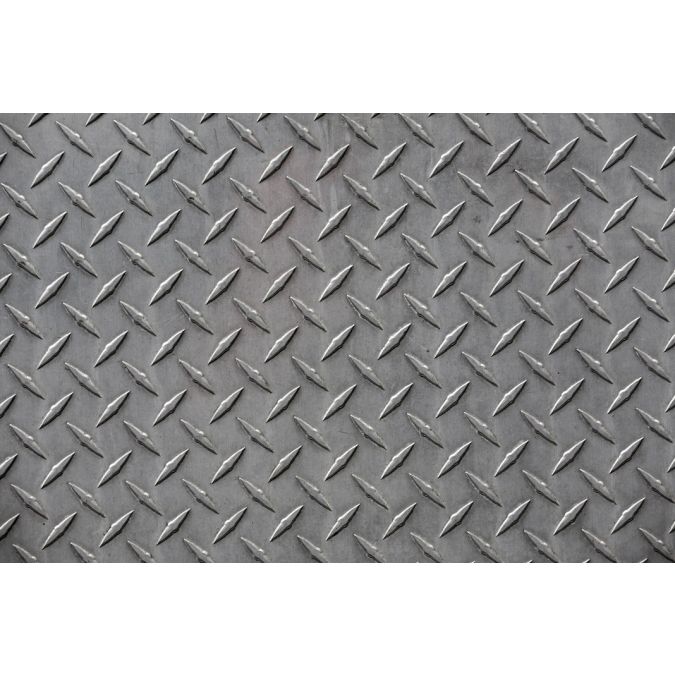

A36 Hot Rolled Diamond Plate - 3/16" x 48" x 120"
This 3/16" Hot Rolled Diamond Plate provides a durable, slip-resistant surface for demanding environments. Conforming to ASTM A786 and made from A36 steel, it combines high strength and excellent weldability, making it ideal for trailer floors, industrial platforms, and ramps. In stock Los Angeles.
- A36 Hot Rolled Steel Construction
- ASTM A786 / A36 Certified
- 58,000 PSI Tensile Strength
- Maximum Skid Resistance
Hot rolled diamond plate, also known as tread or checker plate, is made from A36 structural steel. The hot rolling process produces a durable but less refined surface finish with a raised pattern for traction. Conforming to ASTM A786 standards, this material offers excellent weldability, formability, and strength, making it a reliable choice for functional, load-bearing surfaces where safety is a priority.
As a medium-thickness plate (3/16"), it offers an ideal balance of strength and weight. It is commonly used for structural panels, machine guards, vehicle body panels, equipment platforms, and walkways where both durability and slip resistance are required.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A786 (Pattern), ASTM A36 (Material)
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 3/16" Thickness x 48" Width x 120" Length
- Finish: Hot Rolled (Mill Finish)
- Certifications: MTR Available
Applications
- Transportation & Automotive: Trailer floors and truck beds - its pattern provides grip for cargo and personnel.
- Industrial & Factory: Catwalks and work platforms - A36 steel offers structural strength for safe load-bearing surfaces.
- Construction: Loading dock ramps and trench covers - durable and strong enough to withstand heavy equipment and foot traffic.
- Commercial: Kitchen flooring and kick plates - provides a durable, slip-resistant surface with an industrial aesthetic.
Target Users
Fabricators, construction crews, and maintenance technicians rely on A36 diamond plate for its durability and safety in industrial applications throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a blue-grey surface with some scale. This raw finish is ready for welding and fabrication. For corrosion resistance, the plate should be painted, galvanized, or powder-coated after proper surface preparation. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond plate thickness is measured from the base of the plate, not including the height of the raised pattern. Width and Length are the overall side dimensions.
Example: To order this plate, specify "Hot Rolled Diamond Plate, 3/16" x 48" x 120"".
Order Checklist
- Product name and required dimensions (3/16" x 48" x 120")
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Diamond Plate - 3/16" x 48" x 120"
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A786 / A36
- Key Properties
- 58,000 PSI tensile, Excellent Weldability, Skid-Resistant Surface
- Primary Applications
- Industrial Flooring, Trailer Decks, Ramps
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Diamond Plate in thicknesses from 16 gauge to 3/16". Standard sheet sizes are 4' x 10'. This 3/16" x 4' x 10' size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Diamond Plate - 3/16 Inch$52.13
-
-
-
-
