Hot Rolled Diamond Plate - 14 Gauge
| Weight | 3.750000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 14 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 x 10 |
| FULL LENGTH PRICE | 204.75 |
| Thickness | 14 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.086500 |

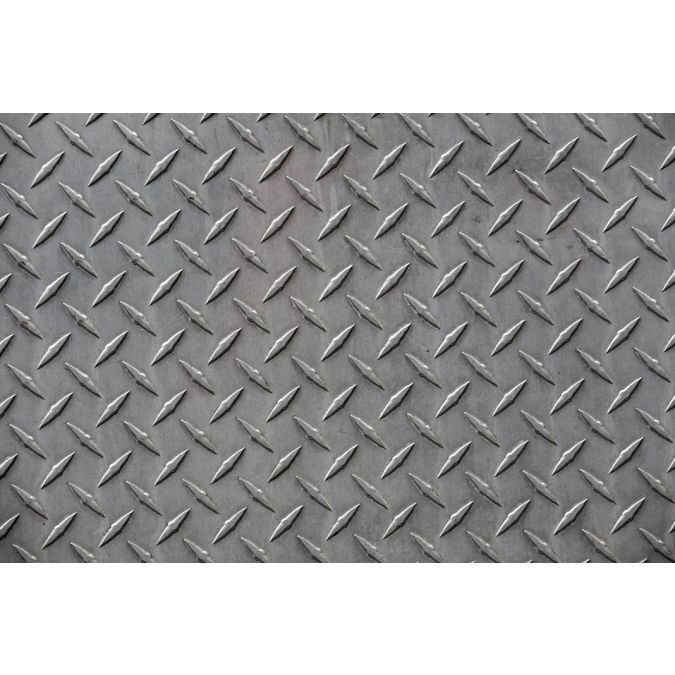

Hot Rolled Diamond Plate - 14 Gauge x 48" x 120"
This 14 Gauge Hot Rolled Diamond Plate measures 48" x 120" and provides maximum skid resistance for high-traffic areas. Manufactured from A36 steel per ASTM A786, it combines structural strength with a functional tread pattern, making it ideal for industrial and automotive applications.
- A36 Hot Rolled Steel Construction
- ASTM A786 / A36 Certified
- 58,000 PSI Tensile Strength
- Superior Slip Resistance
Hot rolled diamond plate, also known as tread or checker plate, is produced from A36 structural steel, ensuring excellent weldability and formability. The material conforms to ASTM A786 for its raised pattern and A36 for its mechanical properties. Its durable, scaled surface is designed for function over aesthetics, providing reliable performance in demanding environments.
As a medium-thickness plate, this 14 Gauge sheet is a versatile choice for structural panels, machine guards, trailer flooring, and architectural kick plates. It offers a balance of rigidity and formability, suitable for applications requiring a durable, load-bearing, and slip-resistant surface without excessive weight.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A786 (Pattern), ASTM A36 (Material)
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 14 Gauge (0.075") x 48" x 120"
- Finish: Hot Rolled (Mill Scale)
- Certifications: MTR Available
Applications
- Industrial Flooring: Catwalks, platforms, and stair treads - provides a safe, non-slip walking surface.
- Transportation: Trailer floors and truck bed liners - offers impact and abrasion resistance.
- Construction: Loading dock ramps and trench covers - combines strength with grip.
- Commercial: Kitchen flooring and kick plates - durable for high traffic with an industrial look.
Target Users
Fabricators, welders, and construction contractors rely on A36 diamond plate for its strength and safety features in industrial projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill scale finish, which has a blue-grey, slightly rough texture. For corrosion resistance, the surface should be prepared by grinding or sandblasting before painting or powder coating. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet and plate thickness is measured by its gauge or decimal thickness of the base metal, not including the height of the raised pattern. Width and length are measured in inches.
Example: To order this plate, specify "Hot Rolled Diamond Plate, 14 Gauge x 48 inches x 120 inches".
Order Checklist
- Product name and required dimensions (14 Gauge x 48" x 120")
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Diamond Plate - 14 Gauge
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A786 / A36
- Key Properties
- 58,000 PSI tensile, Excellent Weldability, Slip-Resistant Pattern
- Primary Applications
- Industrial Flooring, Ramps, Truck Beds
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Diamond Plate in thicknesses from 16 gauge to 3/16" in standard 4x10 ft sheets. This 14 Gauge x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
