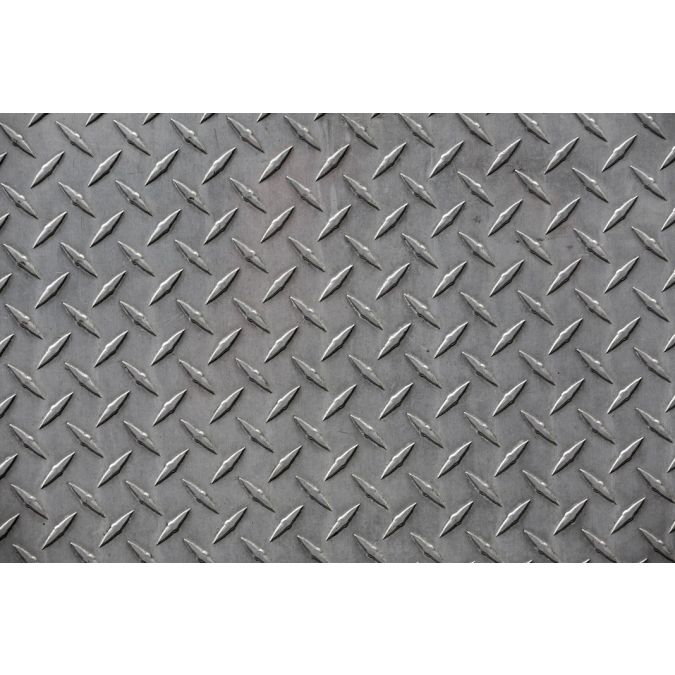

Hot Rolled Diamond Plate - 1/8 Inch
| Weight | 6.150000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 0.125 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 x 10 |
| FULL LENGTH PRICE | 255.84 |
| Thickness | 0.125 |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.125000 |
A36 Steel Diamond Plate - 1/8" x 48" x 120"
This 1/8" x 48" x 120" hot rolled diamond plate features a raised pattern for maximum skid resistance. Produced from A36 structural steel to ASTM A786 standards, it combines excellent weldability and durability for demanding industrial and automotive applications. In stock Los Angeles.
- A36 Steel Construction
- ASTM A786 / A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability & Slip Resistance
Hot rolled diamond plate, also known as tread or checker plate, is manufactured from A36 carbon steel. The hot rolling process creates a durable but less refined surface ideal for functional use. It conforms to ASTM A786 for the raised pattern and ASTM A36 for its base material properties, ensuring good strength, formability, and excellent weldability for easy fabrication.
As a medium-thickness plate, this 1/8" sheet offers a balance of strength and weight, making it ideal for structural flooring, walkways, trailer beds, stair treads, and protective panels where durability and safety are critical.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A786 (Pattern), ASTM A36 (Material)
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 1/8" thick x 48" width x 120" length
- Finish: Hot Rolled (Mill Scale)
- Certifications: MTR Available
Applications
- Industrial & Factory: Catwalks and equipment flooring - its strength supports foot traffic while the pattern prevents slips.
- Transportation: Trailer floors and truck bed liners - resists impact and abrasion from heavy cargo.
- Construction: Loading dock ramps and trench covers - provides a safe, durable surface for heavy loads.
- Commercial: Kick plates and decorative wall panels - combines an industrial aesthetic with functional protection.
Target Users
Fabricators, welders, construction contractors, and maintenance teams rely on A36 diamond plate for its combination of safety, strength, and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, which is a blue-grey, slightly rough surface scale. For painting or powder coating, the mill scale should be removed via grinding or sandblasting. Left untreated, it will develop a surface rust patina. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond plate is measured by its nominal thickness (from the flat base, not including the raised pattern), width, and length.
Example: To order this plate, specify "Hot Rolled Diamond Plate, 1/8" x 48" x 120"".
Order Checklist
- Product name and required dimensions (1/8" x 48" x 120")
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- A36 Hot Rolled Steel Diamond Plate - 1/8" x 48" x 120"
- Material
- A36 Steel
- Standards
- ASTM A786, ASTM A36
- Key Properties
- 58-80k PSI tensile, Excellent Weldability, Slip Resistant
- Primary Applications
- Industrial Flooring, Ramps, Trailer Beds
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Diamond Plate in thicknesses from 16 gauge to 3/16". This 1/8" x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Diamond Plate - 1/8 Inch$40.81
-
-
-
-
