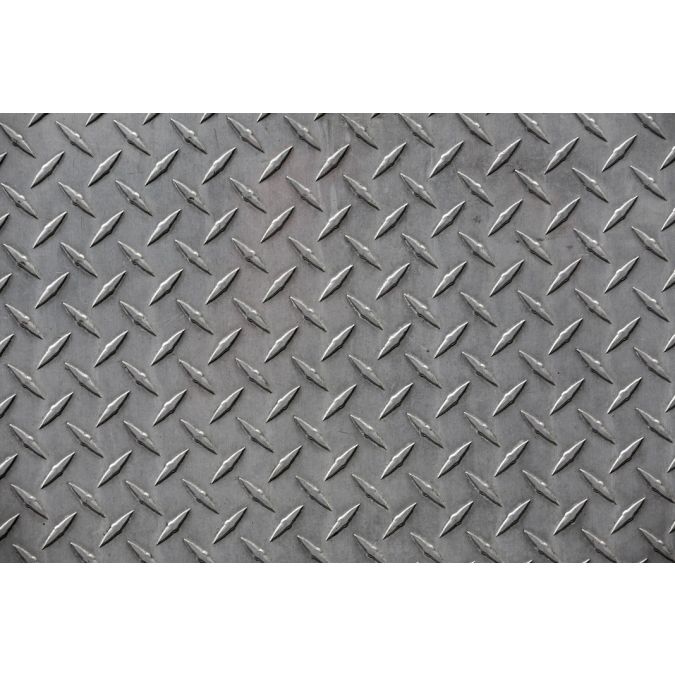

A36 Hot Rolled Diamond Plate - 1/4" x 48" x 120"
This 1/4" x 48" x 120" Hot Rolled Diamond Plate offers a durable, slip-resistant surface for demanding applications. Made from A36 steel per ASTM A786, it combines structural strength with excellent weldability, making it ideal for industrial flooring, ramps, and trailer decks. In stock Los Angeles.
- A36 Hot Rolled Steel Construction
- ASTM A786 / A36 Certified
- 58,000 PSI Min Tensile Strength
- Superior Skid Resistance
Hot Rolled Diamond Plate is produced from A36 structural steel, a material known for its excellent strength, formability, and weldability. The hot rolling process results in a durable surface with a protective mill scale. Conforming to ASTM A786, the raised pattern provides multi-directional traction, enhancing safety in industrial, automotive, and construction environments where slip resistance is a primary concern.
As a medium-thickness plate, this 1/4" size provides substantial load-bearing capacity and impact resistance without excessive weight. It is ideal for structural panels, heavy-duty work platforms, trailer flooring, and loading dock ramps that must withstand regular foot and vehicle traffic while maintaining structural integrity.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A786 (Pattern), ASTM A36 (Material)
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 1/4" Thick x 48" Wide x 120" Long
- Finish: Hot Rolled, Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- Transportation & Automotive: Heavy-duty truck beds and trailer floors - withstands impacts and provides grip for cargo.
- Industrial & Factory: Catwalks and equipment flooring - offers a strong, safe walking surface for high-traffic areas.
- Construction: Loading dock ramps and trench covers - provides structural strength for heavy loads.
- Commercial: Kitchen flooring and kick plates - combines an industrial aesthetic with functional durability.
Target Users
Fabricators, welders, and construction contractors rely on 1/4" A36 diamond plate for its strength, safety, and ease of fabrication in industrial projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a blue-grey, slightly rough surface scale. This scale offers minor, temporary corrosion resistance. For painting or powder coating, the mill scale should be removed by grinding, sandblasting, or pickling. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond plate thickness is measured from the base of the plate, not including the height of the raised pattern. Width and length are the overall dimensions of the sheet.
Example: To order this plate, specify "Hot Rolled Diamond Plate, 1/4" x 48" x 120"".
Order Checklist
- Product name and required dimensions (1/4" x 48" x 120")
- Material specification and quantity
- Confirm grade (A36) meets structural requirements
- Surface finish requirements (Hot Rolled, Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- A36 Hot Rolled Diamond Plate - 1/4" x 48" x 120"
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A786 / A36
- Key Properties
- 58,000-80,000 PSI tensile, excellent weldability, skid resistant
- Primary Applications
- Industrial flooring, ramps, trailer decks
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Hot Rolled Diamond Plate in thicknesses from 16 gauge up to 1/2" in standard 4x8 ft, 4x10 ft, and 5x10 ft sheets. This 1/4" x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
