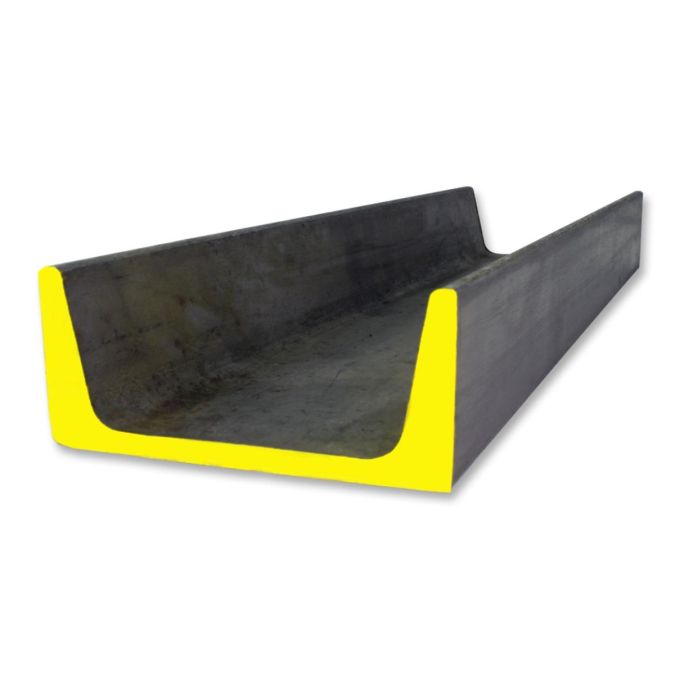

A36 Steel Channel - C9 X 13.4
This C9 x 13.4 structural steel channel features a 9-inch height and is manufactured from A36 hot rolled steel. Conforming to ASTM A36, it provides a balance of strength, ductility, and excellent weldability for heavy-duty structural applications. In stock Los Angeles.
- A36 Steel Construction
- ASTM A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability
A36 hot rolled channel is a low-carbon structural steel shape with a minimum yield strength of 36,000 PSI. Produced by passing heated steel through rollers, it possesses good formability and excellent weldability using all common welding methods. This material is a reliable and economical choice for general construction and industrial fabrication where high strength-to-weight ratio and durability are required.
As a large profile channel, the C9 x 13.4 size is engineered for significant load-bearing applications. It is commonly used for heavy structural framing in buildings, main chassis rails for trucks and trailers, and robust bases for industrial machinery and material handling equipment.
Specifications
- Material: A36 Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 9" Height x 2.43" Flange Width x 0.230" Web Thickness x 20' Length
- Finish: Hot Rolled (Mill Finish)
- Certifications: MTR Available
Applications
- Structural Framing: Main support beams, cross-members, and building frames - robust profile for significant load-bearing capacity.
- Equipment Manufacturing: Heavy-duty bases and frames for industrial machinery - easy to weld and fabricate into complex assemblies.
- Vehicle & Trailer Frames: Chassis rails and structural supports for utility trailers and heavy vehicles - resists bending stress.
- Industrial Supports: Braces, supports for conveyor systems, and heavy-duty shelving units - economical and strong.
Target Users
Fabricators, construction contractors, and heavy equipment manufacturers rely on A36 Channel for its strength and weldability in structural projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a dark, scaled surface. For paint or powder coat adhesion, surface preparation like sandblasting is required. For outdoor or corrosive environments, A36 channel can be hot-dip galvanized for superior protection. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Structural channel is measured by its height (the longest cross-sectional dimension, A), flange width (B), and web thickness (C). It is typically ordered using its industry designation: C [Height in inches] x [Weight in lbs per foot].
Example: To order this channel, specify "A36 Steel Channel, C9 x 13.4".
Order Checklist
- Product name and required dimensions (C9 x 13.4)
- Material specification and quantity (in feet or number of 20' lengths)
- Confirm grade (A36) meets project requirements
- Surface finish requirements (Hot Rolled)
- Certifications required (Mill Test Report)
- Special handling or cutting requirements
Quick Facts
- Product
- A36 Steel Channel - C9 X 13.4
- Material
- A36 Steel
- Standards
- ASTM A36
- Key Properties
- 58,000-80,000 PSI tensile, excellent weldability, good ductility
- Primary Applications
- Structural framing, equipment bases, trailer frames
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Steel Channel in a wide range of sizes with standard 20 ft. lengths. This C9 x 13.4 size is available for immediate pickup in Los Angeles.
Custom cutting services available.
