Hot Rolled Channels - Standard Size - C8 X 13.75
| Weight | 13.750000 |
|---|---|
| bobco_dimensions_width | 8 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.303 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 20 |
| MAX LENGTHS | 20 |
| Thickness | 0.303 |
| Dimension Length | 240.000000 |
| Dimension Width | 8.000000 |
| Dimension Height | 2.527000 |
| FULL LENGTH PRICE | 415.34 |
| full_length | 20 |
| addon_charges_fraction | 5 |

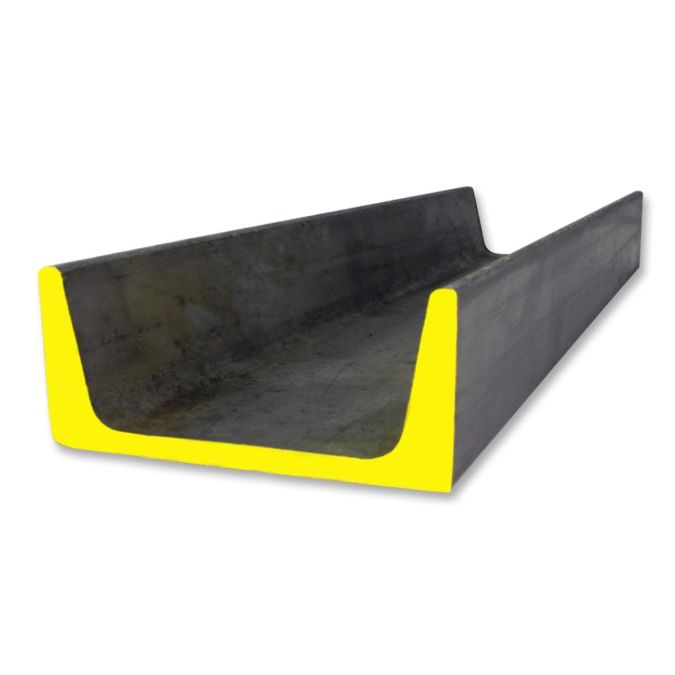

A36 Hot Rolled Steel Channel - C8 x 13.75 x 20'
This C8 x 13.75 structural steel channel is manufactured from A36 hot rolled steel, providing a minimum yield strength of 36,000 PSI. Conforming to ASTM A36, it offers excellent weldability and strength for frames, supports, and brackets. In stock and ready for pickup in Los Angeles.
- A36 Hot Rolled Steel Construction
- ASTM A36 Certified
- 36,000 PSI Minimum Yield Strength
- Excellent Formability and Weldability
Hot rolled A36 steel channel is a structural C-shape produced by passing heated steel through rollers, resulting in a rougher surface finish and slightly rounded corners. This process ensures compliance with ASTM A36 specifications, delivering a balance of strength, ductility, and exceptional weldability for general structural and fabrication purposes.
As a large-profile channel, the C8 x 13.75 provides substantial resistance to bending along its strong axis. This makes it ideal for heavy-duty applications such as main structural framing, equipment bases, vehicle chassis components, and industrial support systems requiring robust load-bearing capabilities.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI (Tensile), 36,000 PSI (Yield)
- Dimensions: 8" Depth x 2.343" Flange x 0.303" Web x 20' Length
- Finish: Hot Rolled Mill Finish
- Certifications: MTR Available
Applications
- Equipment Manufacturing: Bases and frames for heavy machinery, utilizing its high strength and weldability.
- Structural Engineering: Main support beams, cross-members, and braces in building construction.
- Vehicle & Trailer Frames: Chassis rails and structural supports for heavy-duty utility trailers and trucks.
- Material Handling: Frames for industrial conveyor systems and heavy-duty shelving units.
Target Users
Fabricators, structural engineers, and heavy equipment manufacturers rely on A36 Channel for its strength and economy in structural applications throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a rough, blue-grey surface with a layer of mill scale. This scale should be removed before painting or coating for proper adhesion. For enhanced corrosion resistance, this channel can be galvanized or powder coated after fabrication. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Structural channel is identified by its standard designation (e.g., C8 x 13.75), where the first number is the depth in inches and the second is the weight per foot. Key measurements are Depth (A), Flange Width (B), and Web Thickness (C).
Example: To order this channel, specify "A36 Channel, C8 x 13.75 x 20 ft".
Order Checklist
- Product name and required dimensions (C8 x 13.75 x 20')
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- A36 Hot Rolled Steel Channel - C8 x 13.75 x 20'
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A36
- Key Properties
- 36,000 PSI min yield, excellent weldability, high strength
- Primary Applications
- Equipment frames, structural supports, trailer manufacturing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Hot Rolled Channel in a wide range of standard sizes. This C8 x 13.75 x 20' size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Channels - Standard Size - C8 X 13.75$415.34
-
-
-
-
