Hot Rolled Channels - Standard Size - C7 X 9.8
| Weight | 9.800000 |
|---|---|
| bobco_dimensions_width | 7 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.21 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 20 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 305.76 |
| Thickness | 0.21 |
| Dimension Length | 240.000000 |
| Dimension Width | 7.000000 |
| Dimension Height | 2.090000 |

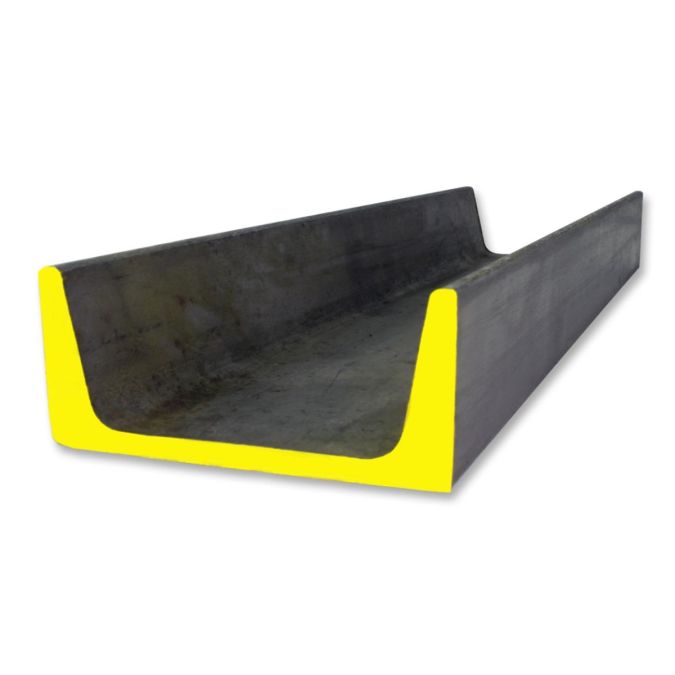

A36 Hot Rolled Steel Channel - C7 x 9.8 lbs/ft x 20 ft
A36 Hot Rolled Steel Channel, C7 x 9.8, is a large structural profile offering robust performance for load-bearing applications. Conforming to ASTM A36, it combines 36,000 PSI minimum yield strength with excellent weldability, making it ideal for frames, braces, and supports. In stock Los Angeles.
- A36 Carbon Steel Construction
- ASTM A36 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Weldability and Formability
This C7 x 9.8 channel is a hot rolled structural shape made from A36 carbon steel, a grade known for its superior strength, ductility, and exceptional weldability. The hot rolling process gives it a rougher surface finish and slightly rounded corners. With a minimum yield strength of 36,000 PSI, it is a reliable and economical choice for general structural and fabrication applications.
As a large profile channel, this 7-inch deep section is engineered for significant load-bearing roles. It is commonly used for heavy structural framing in buildings, main support rails for truck and utility trailer chassis, and robust bases for industrial machinery and material handling equipment where strength is paramount.
Specifications
- Material: A36 Hot Rolled Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 7" Depth x 2.09" Flange x 0.21" Web x 20 ft Length
- Finish: Mill Finish (Hot Rolled)
- Certifications: MTR Available
Applications
- Structural Framing: Main support beams, cross-members, and columns in commercial and industrial construction projects.
- Equipment Manufacturing: Heavy-duty bases and frames for industrial machinery that require high strength and rigidity.
- Vehicle & Trailer Frames: Primary chassis rails and structural supports for heavy utility trailers, flatbeds, and trucks.
- Material Handling: Structural frames for large conveyor systems, industrial racking, and heavy-duty shelving units.
Target Users
Structural steel fabricators, general contractors, and heavy equipment manufacturers rely on A36 Channel for its predictable performance and ease of fabrication in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish characteristic of hot rolled steel, which includes a layer of mill scale. For proper paint or powder coat adhesion, this scale must first be removed by grinding, sandblasting, or pickling. For maximum corrosion resistance in outdoor applications, it can be hot-dip galvanized after fabrication.
How to Measure
Structural channel is designated by its depth (the height of the web, Dimension A) and its weight per foot. This C7 x 9.8 channel has a depth of 7 inches and weighs 9.8 lbs/ft.
Example: To order this channel, specify "A36 Hot Rolled Channel, C7 x 9.8".
Order Checklist
- Product name and required dimensions (C7 x 9.8 lbs/ft)
- Material specification and quantity (in feet or number of 20 ft pieces)
- Confirm grade (A36) meets engineering requirements
- Surface finish requirements (Standard Mill Finish)
- Certifications required (Mill Test Report)
- Special cutting, handling, or delivery requirements
Quick Facts
- Product
- A36 Hot Rolled Steel Channel - C7 x 9.8 lbs/ft x 20 ft
- Material
- A36 Hot Rolled Steel
- Standards
- ASTM A36
- Key Properties
- 58,000-80,000 PSI tensile, Excellent Weldability, High Strength
- Primary Applications
- Structural Framing, Equipment Bases, Trailer Frames
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Hot Rolled Channel in a wide range of standard AISC sizes. This C7 x 9.8 size is a common structural profile available for immediate pickup or delivery from our Los Angeles facility.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Channels - Standard Size - C7 X 9.8$54.50
-
-
-
-
