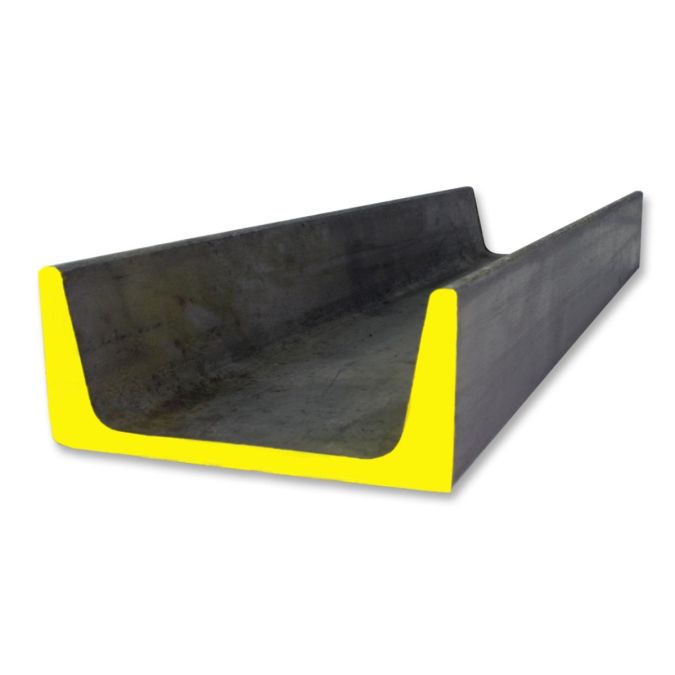

Hot Rolled Channels - Standard Size - C5 X 6.7
| Weight | 6.700000 |
|---|---|
| bobco_dimensions_width | 5 |
| bobco_dimensions_length | 240 |
| bobco_thickness | 0.19 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 3 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 20 |
| FULL LENGTH PRICE | 143.72 |
| Thickness | 0.19 |
| Dimension Length | 240.000000 |
| Dimension Width | 5.000000 |
| Dimension Height | 1.750000 |
A36 Hot Rolled Steel Channel - C5 x 6.7
This C5 x 6.7 hot rolled channel is manufactured from A36 structural steel, providing a 5" depth for significant load-bearing capacity. Compliant with ASTM A36, it offers excellent weldability and 36,000 PSI minimum yield strength for frames, braces, and supports. In stock Los Angeles.
- A36 Carbon Steel Construction
- ASTM A36 Certified
- 36,000 PSI Minimum Yield Strength
- Excellent Weldability
A36 hot rolled channel is a structural C-shape produced from low-carbon steel, conforming to ASTM A36 standards. This process results in a material with a minimum yield strength of 36,000 PSI, known for its outstanding ductility and weldability. Its combination of strength and economy makes it a staple for general fabrication, construction, and industrial repair applications where tight dimensional tolerances are not critical.
As a large-profile channel, the C5 x 6.7 provides substantial resistance to bending and torsion. It is frequently specified for heavy structural applications, including building frames, trailer and truck bed framing, equipment bases, and industrial supports where robust load-bearing capability is essential.
Specifications
- Material: A36 Carbon Steel
- Standards: ASTM A36
- Strength/Tensile: 58,000-80,000 PSI (Yield: 36,000 PSI min)
- Dimensions: Depth: 5", Flange Width: 1.75", Web Thickness: 0.190", Length: 20 ft
- Finish: Hot Rolled (Mill Scale)
- Certifications: MTR Available
Applications
- Structural Framing: Main supports and cross-members in buildings and mezzanines due to its high strength-to-weight ratio.
- Vehicle & Trailer Manufacturing: Chassis rails and frame components requiring durability and resistance to bending stress.
- Heavy Equipment: Bases and support frames for industrial machinery that must be robust and easily weldable.
- Material Handling: Supports for conveyor systems and heavy-duty racks demanding reliable load-bearing capacity.
Target Users
Fabricators, construction contractors, and heavy equipment manufacturers rely on A36 channel for its strength and versatility in structural projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot rolled mill finish, characterized by a dark, scaled surface. This scale can be removed by grinding, pickling, or sandblasting to prepare for painting or coating. For maximum corrosion resistance in outdoor environments, it can be hot-dip galvanized after fabrication. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
A standard steel channel is defined by its Depth (the height of the web), Flange Width, and Web Thickness. The 'C5' designation indicates a 5-inch depth.
Example: To order this channel, specify "A36 Channel, C5 x 6.7".
Order Checklist
- Product name and required dimensions (C5 x 6.7)
- Material specification and quantity
- Confirm grade (A36) meets requirements
- Surface finish requirements (Hot Rolled Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Hot Rolled Channels - Standard Size - C5 X 6.7
- Material
- A36 Carbon Steel
- Standards
- ASTM A36
- Key Properties
- 36,000 PSI min yield, excellent weldability, good strength
- Primary Applications
- Equipment frames, trailer frames, structural supports
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock A36 Hot Rolled Channel in a wide range of standard sizes and weights. This C5 x 6.7 size is available in 20-foot lengths for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Hot Rolled Channels - Standard Size - C5 X 6.7$26.73
-
