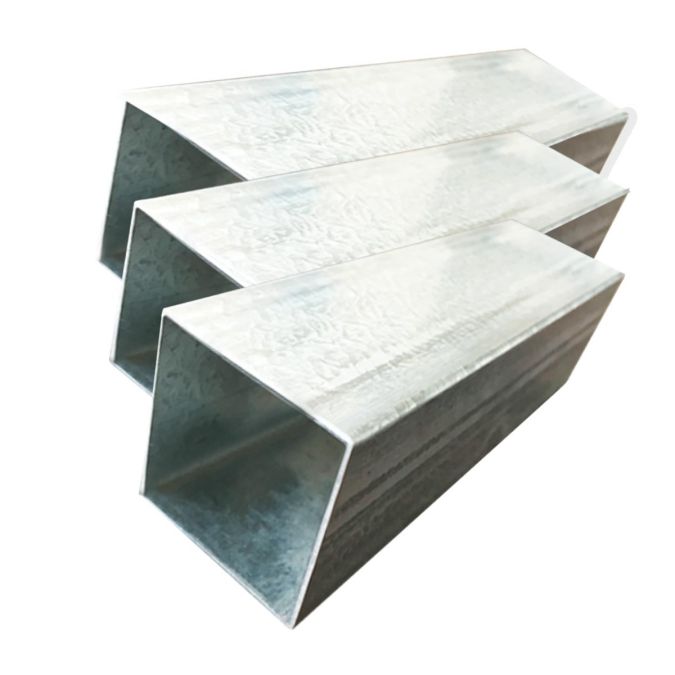

A500B Galvanized Square Tube - 1-1/2" x 16 Gauge x 24'
This 1-1/2" x 16 gauge galvanized square steel tube is a structural product meeting ASTM A500 Grade B specifications. Its hot-dip zinc coating offers superior protection against rust, making it ideal for outdoor frames, gates, and trailers. In stock Los Angeles.
- A500B Galvanized Steel Construction
- ASTM A500 Certified
- 58,000 PSI Tensile Strength
- Superior Corrosion Resistance
A500 Grade B galvanized square tube is a cold-formed, electric-resistance welded structural steel product. It undergoes a hot-dip galvanizing process where a protective zinc coating is applied to prevent rust and corrosion. This process ensures durability in outdoor and high-moisture environments. With a minimum yield strength of 46,000 PSI, it provides reliable structural integrity for load-bearing applications.
As a medium-sized profile, the 1-1/2" dimension offers an excellent balance of strength and weight. It is commonly used for equipment frames, utility trailer construction, handrails, gate frames, and support columns where moderate load capacity and superior weather resistance are required.
Specifications
- Material: A500 Grade B Galvanized Steel
- Standards: ASTM A500
- Strength/Tensile: 58,000 PSI (min)
- Dimensions: 1-1/2" x 1-1/2" x 16 Gauge Wall x 24' Length
- Finish: Hot-Dip Galvanized (G90)
- Certifications: MTR Available Upon Request
Applications
- Trailer Fabrication: Main frames and cross-members - the 1-1/2" size provides necessary rigidity while the galvanized finish prevents rust from road spray.
- Fencing & Gates: Gate frames and support posts - offers structural stability and long-term durability against weather without needing paint.
- Construction: Light-duty support columns and framework - A500B strength for load-bearing and galvanization for exposure to the elements.
- Agricultural: Greenhouse frames and livestock enclosures - resists corrosion from moisture and agricultural chemicals.
Target Users
Fabricators, trailer manufacturers, fencing contractors, and general contractors rely on A500B galvanized tube for its strength and weather resistance in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip galvanized finish, providing a durable, abrasion-resistant zinc coating for excellent corrosion protection. The finish can be painted if properly cleaned and primed. For specific project requirements, contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Square tube is measured by its outer dimensions (Width and Height) and its Wall Thickness. For this product, Width = 1-1/2", Height = 1-1/2", and the Wall Thickness is 16 Gauge (approx. 0.065").
Example: To order this square tube, specify "Galvanized Square Tube, 1-1/2" x 16 Gauge x 24 ft".
Order Checklist
- Product name and required dimensions (1-1/2" x 16ga x 24')
- Material specification and quantity
- Confirm grade (A500B) meets structural requirements
- Surface finish requirements (Galvanized)
- Certifications required (Mill Test Report)
- Special cutting or delivery requirements
Quick Facts
- Product
- Galvanized Square Tube - 1-1/2 Inches X 16 Gauge
- Material
- A500B Galvanized Steel
- Standards
- ASTM A500
- Key Properties
- 58,000 PSI tensile, Excellent Weldability, Superior Corrosion Resistance
- Primary Applications
- Trailer frames, gate construction, fence posts, structural supports
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Square Tube in sizes from 5/8" to 1-1/2" and wall thicknesses including 11 and 16 gauge. This 1-1/2" x 16 Gauge size is available for immediate pickup in Los Angeles.
Custom cutting services available.
