Galvanized Sheet - 18 Gauge
| Weight | 2.156000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 18 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 107.63 |
| Thickness | 18 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.056600 |

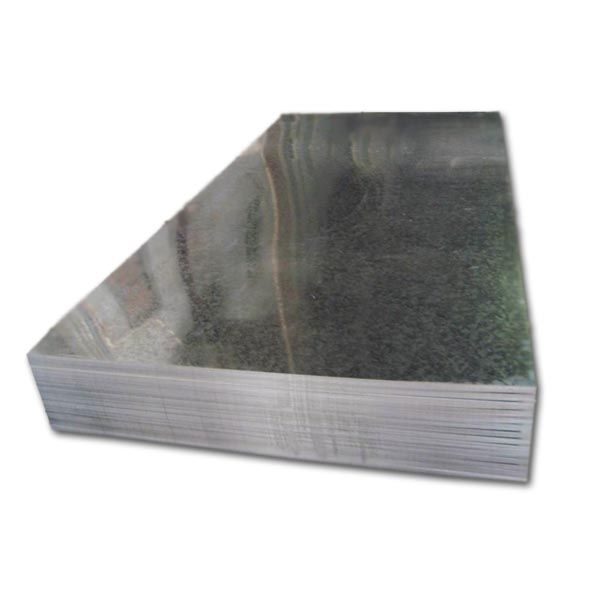

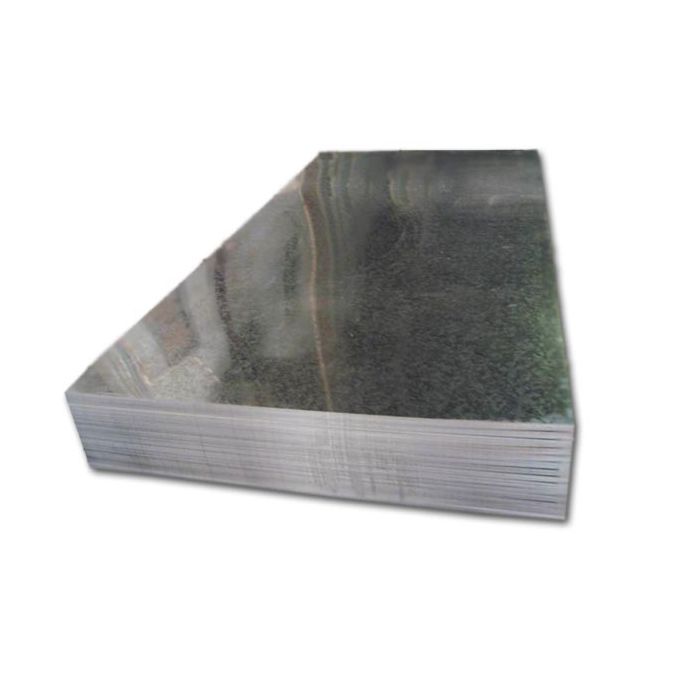

Galvanized Steel Sheet - 18 Gauge
This 18 gauge (0.0478") Galvanized Steel Sheet measures 4' x 10' and conforms to ASTM A653 standards. The hot-dip zinc coating provides excellent corrosion resistance, making it ideal for outdoor applications like roofing, flashing, and HVAC ductwork. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Galvanized steel sheet is a carbon steel product that has been coated with zinc through a continuous hot-dip process. This creates a metallurgical bond between the steel and zinc, providing a durable barrier that protects against rust and corrosion. The material combines the formability and strength of steel with the superior protective qualities of zinc, conforming to ASTM A653 specifications for reliable performance.
As a thin 18 gauge sheet, this material is easily formed, cut, and fabricated. It is an ideal choice for lightweight applications requiring long-term durability in moist or outdoor environments, including formed brackets, electronic enclosures, shims, and custom HVAC components.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 18 Gauge (0.0478") x 48" x 120"
- Finish: Hot-Dip Zinc Coated
- Certifications: MTR Available
Applications
- HVAC: Ductwork, plenums, and air handler enclosures - excellent moisture resistance and formability.
- Construction: Roofing panels, wall siding, and flashing - long service life in exposed weather conditions.
- Automotive: Body patch panels and underbody components - protects against road salt and moisture.
- Manufacturing: Electrical boxes, machine guards, and toolboxes - combines strength with a protective coating.
Target Users
HVAC contractors, fabricators, roofers, and general contractors rely on 18 gauge Galvanized Sheet for its versatility and durability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip zinc coated finish, which typically has a crystalline or 'spangled' appearance. This is the primary protective layer. For painting, the surface must be properly cleaned and prepared with a primer designed for galvanized steel. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet is measured by its Gauge (thickness), Width, and Length. Use calipers to verify thickness and a tape measure for width and length.
Example: To order this sheet, specify "Galvanized Sheet, 18 Gauge x 48" x 120".
Order Checklist
- Product name and required dimensions (18 Ga x 4' x 10')
- Material specification and quantity
- Confirm grade (Galvanized / ASTM A653) meets requirements
- Surface finish requirements (Standard Spangled)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized Sheet - 18 Gauge
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 58,000-80,000 PSI tensile, excellent corrosion resistance, good formability
- Primary Applications
- HVAC Ductwork, Roofing, Flashing, Enclosures
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Sheet in thicknesses from 10 gauge to 18 gauge in standard 4'x10' sheets. This 18 Gauge size is available for immediate pickup in Los Angeles.
Custom cutting services available.
