Galvanized Sheet - 16 Gauge
| Weight | 2.656000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 16 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 132.59 |
| Thickness | 16 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.069500 |

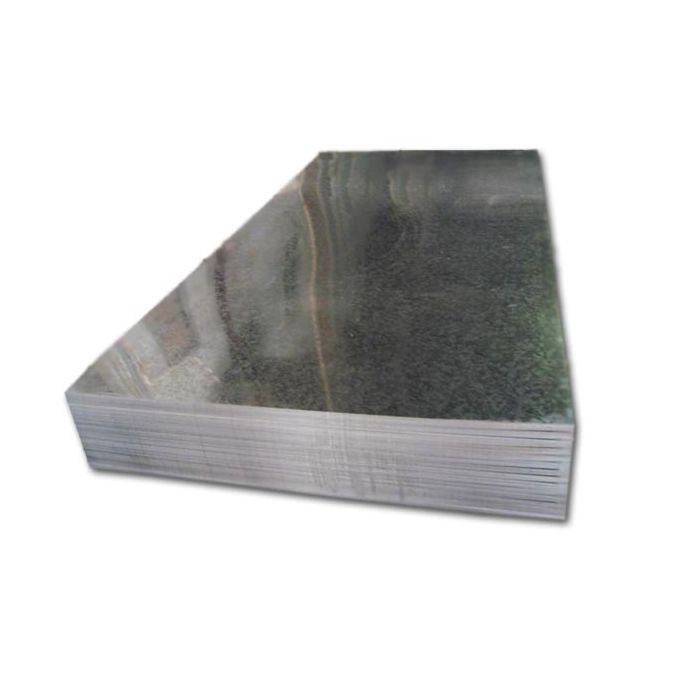

Galvanized Steel Sheet - 16 Gauge x 48" x 120"
This 16 Gauge Galvanized Steel Sheet measures 48" x 120" and provides exceptional durability through its hot-dip zinc coating. Meeting ASTM A653 specifications, it combines the strength of steel with superior rust protection, making it a reliable choice for outdoor and industrial applications. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 58,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Galvanized steel sheet is a carbon steel sheet coated with zinc on both sides via a hot-dip process, conforming to ASTM A653. This metallurgical bond creates a durable barrier that protects the base steel from rust, providing both physical and sacrificial cathodic protection. It combines the formability and strength of steel with the long-lasting corrosion resistance of zinc, making it a cost-effective material for demanding environments.
As a relatively thin 16 gauge sheet, this material is easily formed, bent, and fabricated. Its size classification makes it ideal for applications requiring good durability without excessive weight, including formed brackets, electronic enclosures, decorative panels, and especially HVAC ductwork where moisture resistance and workability are critical.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Tensile: 58,000 - 80,000 PSI
- Dimensions: 16 Gauge (0.060") x 48" x 120"
- Finish: Hot-Dip Zinc Coated
- Certifications: MTR Available Upon Request
Applications
- HVAC: Ductwork and air handling units - excellent moisture resistance and formability.
- Construction: Roofing panels, wall siding, and flashing - provides long-term weather protection.
- Manufacturing: Electrical enclosures and machinery guards - offers durable protection with easy fabrication.
- Automotive: Underbody components and brackets - protects against corrosion from road salt and moisture.
Target Users
HVAC technicians, general fabricators, roofers, and industrial maintenance personnel rely on 16 Gauge Galvanized Sheet for durable, corrosion-resistant components in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a commercial hot-dip galvanized finish, which may exhibit a spangled (crystalline) appearance. This zinc coating is the primary protective layer. For applications requiring painting, the surface must be properly cleaned and primed. Contact our Los Angeles sales team for information on different coating weights (e.g., G90) or finishes.
How to Measure
Sheet metal is measured by its Thickness (Gauge), Width, and Length. Gauge is a standard number that corresponds to a decimal thickness; for 16 Ga steel, this is ~0.060".
Example: To order this sheet, specify "Galvanized Sheet, 16 Gauge x 48 inches x 120 inches".
Order Checklist
- Product name and required dimensions (16 Gauge x 48" x 120")
- Material specification and quantity
- Confirm grade (Galvanized Steel) meets requirements
- Surface finish requirements (Standard Galvanized)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized Sheet - 16 Gauge x 48" x 120"
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 58,000 PSI tensile, excellent corrosion resistance, good formability
- Primary Applications
- HVAC ductwork, enclosures, roofing, flashing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Sheet in thicknesses from 10 gauge to 18 gauge in standard 4x10 ft sheets. This 16 Gauge size is available for immediate pickup in Los Angeles.
Custom cutting services available.
