Galvanized Sheet - 14 Gauge
| Weight | 3.281000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 14 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 187.67 |
| Thickness | 14 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.086500 |

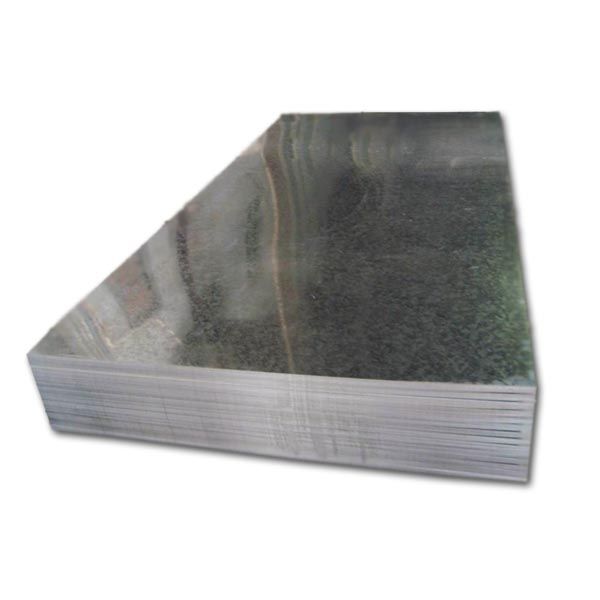

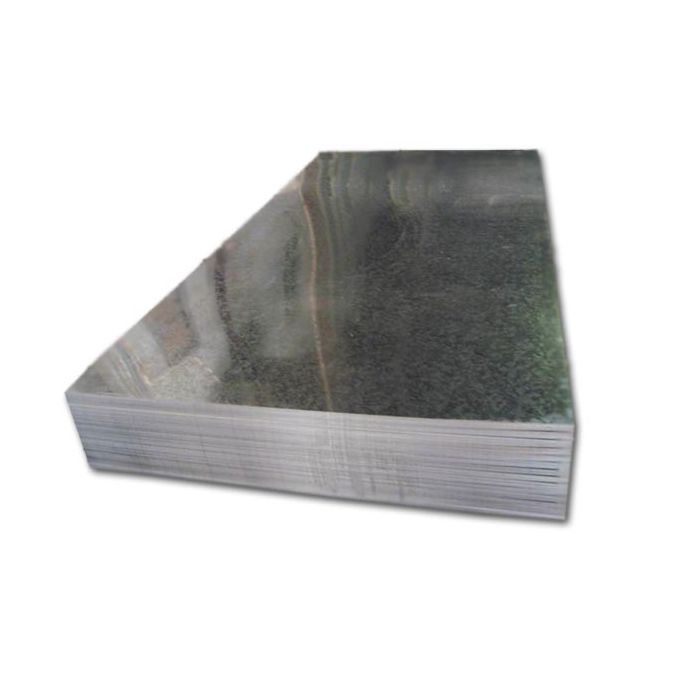

Galvanized Steel Sheet - 14 Gauge (0.075") x 48" x 120"
This 14 gauge (0.075") galvanized steel sheet offers excellent corrosion resistance from its protective zinc coating. Conforming to ASTM A653, it combines the formability and strength of carbon steel with superior durability for outdoor and high-moisture environments. Ideal for fabrication projects. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Galvanized steel sheet is a carbon steel sheet coated with zinc on both sides via a continuous hot-dip process. This creates a durable metallurgical bond that protects the base steel from rust, extending its life in exposed environments. The material conforms to ASTM A653 and combines the strength and formability of steel with the sacrificial protection of zinc.
As a medium-thickness material, this 14 gauge sheet provides an excellent balance of rigidity and formability. It is a reliable choice for structural panels, machine guards, vehicle body panels, and architectural cladding where durability and weather resistance are essential.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 14 Gauge (0.075") x 48" x 120"
- Finish: Spangled Hot-Dip Galvanized
- Certifications: Mill Test Report (MTR) available upon request.
Applications
- Construction: Roofing panels, wall siding, and flashing - excellent weather resistance.
- HVAC: Ductwork, air handling units, and enclosures - withstands moisture and condensation.
- Automotive: Underbody components, brackets, and body panels - protects against road salt.
- Agriculture: Fencing, animal enclosures, and irrigation systems - long service life outdoors.
Target Users
Fabricators, construction contractors, HVAC installers, and manufacturers rely on 14 Gauge Galvanized Sheet for durable, corrosion-resistant components in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip galvanized finish, characterized by a spangled or crystalline zinc pattern. This finish provides robust corrosion protection. For applications requiring paint adhesion, minimally spangled finishes may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet metal is measured by its Thickness (Gauge) x Width x Length. Use a sheet metal gauge or calipers for precise thickness measurements.
Example: To order this sheet, specify "Galvanized Sheet, 14 Gauge x 48 inches x 120 inches".
Order Checklist
- Product name and required dimensions (14 Ga x 48" x 120")
- Material specification and quantity
- Confirm grade (Galvanized ASTM A653) meets requirements
- Surface finish requirements (Standard Spangle)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized Sheet - 14 Gauge (0.075") x 48" x 120"
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 58,000-80,000 PSI tensile, excellent corrosion resistance, formable
- Primary Applications
- HVAC Ductwork, roofing, outdoor structures, agricultural equipment
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Sheet in thicknesses from 18 gauge to 10 gauge, with standard sheet sizes of 4'x10'. This 14 Gauge x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
