Galvanized Sheet - 11 Gauge
| Weight | 5.156000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 11 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 427.64 |
| Thickness | 11 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.135000 |

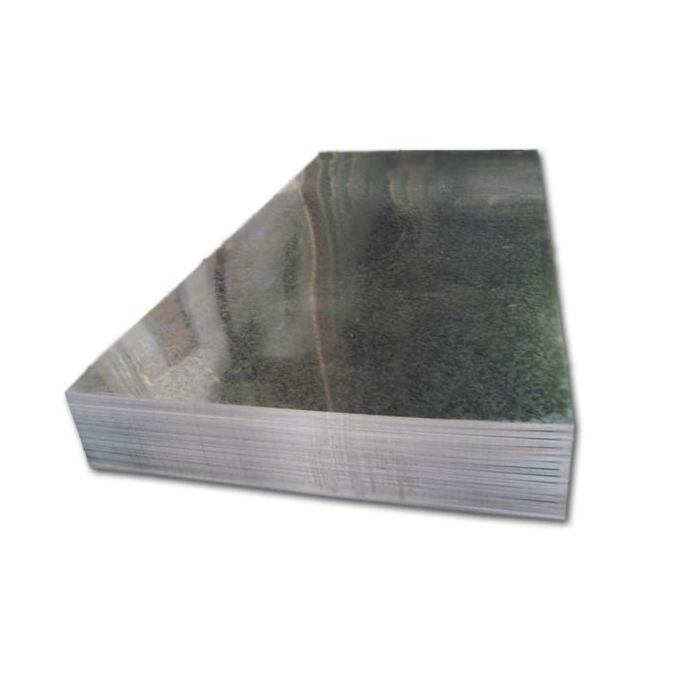

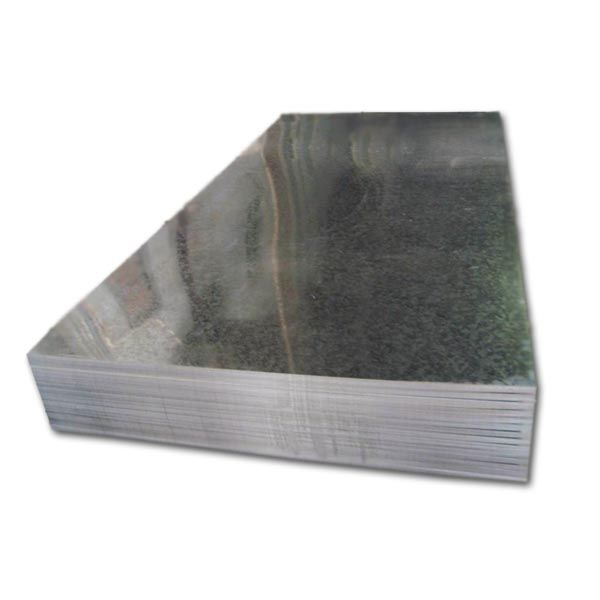

Galvanized Steel Sheet - 11 Gauge x 48" x 120"
This 11 Gauge Galvanized Steel Sheet measures 48" x 120" and provides excellent rust prevention from its protective zinc coating. Conforming to ASTM A653, it combines the structural strength of steel with superior corrosion resistance, making it ideal for outdoor applications. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 58,000-80,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Galvanized sheet is a carbon steel sheet coated with zinc on both sides via a hot-dip process, compliant with ASTM A653. This creates a durable, metallurgical bond that protects the base metal from rust through both barrier and sacrificial protection. It combines the strength, formability, and weldability of steel with the long-term corrosion resistance of zinc, making it a cost-effective choice for demanding environments.
As a medium-thickness 11 Gauge (0.120") sheet, this product offers an excellent balance of structural rigidity and formability. It is commonly used for fabricating structural panels, machine guards, vehicle body components, roofing, and architectural cladding where durability and weather resistance are critical.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Tensile: 58,000-80,000 PSI
- Dimensions: 11 Gauge (~0.120") x 48" x 120"
- Finish: Hot-Dip Galvanized
- Certifications: MTR Available Upon Request
Applications
- Construction: Roofing panels and wall siding - provides long-term weather resistance and structural support.
- HVAC: Ductwork and air handling units - resists moisture and corrosion in ventilation systems.
- Automotive: Body panels and underbody components - protects against road salt and environmental corrosion.
- Manufacturing: Machinery guards and enclosures - strong and durable for protective housings.
Target Users
Fabricators, construction contractors, HVAC installers, and automotive specialists rely on Galvanized Sheet for durable, corrosion-resistant projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip galvanized finish, characterized by a crystalline, spangled appearance. This zinc coating provides excellent corrosion protection as-is. For painting, the surface must be properly cleaned and treated with a primer designed for galvanized steel to ensure adhesion. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Sheet is measured by its Thickness (in Gauge or decimal inches), Width, and Length. Ensure all three dimensions are specified for an accurate order.
Example: To order this sheet, specify "Galvanized Sheet, 11 Gauge x 48 inches x 120 inches".
Order Checklist
- Product name and required dimensions (11 Ga x 48" x 120")
- Material specification and quantity
- Confirm grade (Galvanized) meets requirements
- Surface finish requirements (Standard Spangle)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized Sheet - 11 Gauge x 48" x 120"
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 58,000-80,000 PSI tensile, excellent corrosion resistance, formable
- Primary Applications
- Roofing, HVAC ductwork, automotive panels
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Sheet in thicknesses from 18 gauge to 10 gauge in standard 4x10 ft sheets. This 11 Gauge x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
