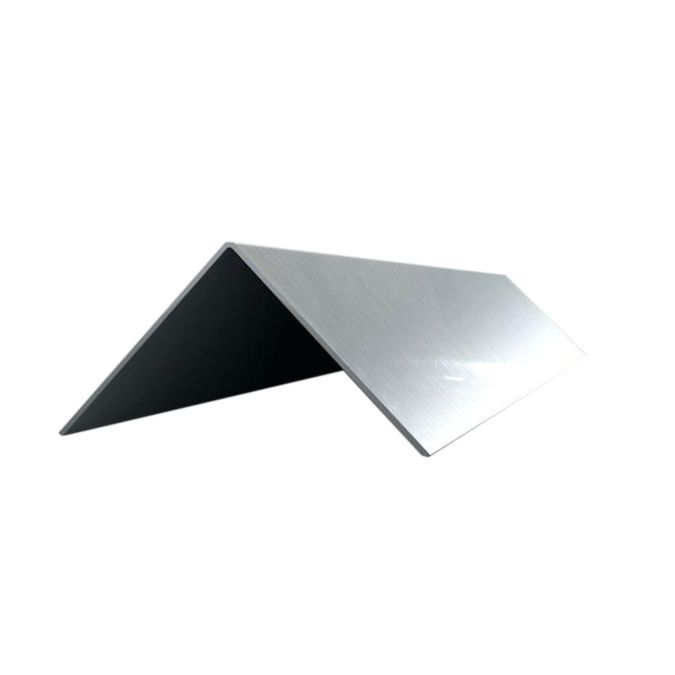

Galvanized Corner Guard 3" X 3" X 16GA X 36"
| Weight | 3.900000 |
|---|---|
| bobco_dimensions_width | 3 |
| bobco_dimensions_length | 36 |
| bobco_thickness | 16 Ga |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 0 |
| addon_charges_percentage | 0 |
| addon_charges_simple | 0 |
| MAX LENGTHS | 3 |
| FULL LENGTH PRICE | 8 |
| Thickness | 16 Ga |
| Dimension Length | 36.000000 |
| Dimension Width | 3.000000 |
| Dimension Height | 3.000000 |
Galvanized Corner Guard 3" X 3" X 16GA X 36"
This industrial-grade Galvanized Corner Guard provides robust protection for walls and corners in high-traffic commercial and industrial environments. Fabricated from durable 16 gauge steel with a corrosion-resistant galvanized finish, it prevents damage from impact, carts, and equipment, ensuring long-term structural integrity and a clean appearance.
- Galvanized Steel (ASTM A653)
- 16 Gauge (0.0598")
- G90 Galvanized Coating
- High-Impact Corner Protection
Our Galvanized Corner Guard is manufactured from high-quality carbon steel sheet that undergoes a hot-dip galvanization process, resulting in a G90 coating. This zinc coating provides a durable, sacrificial barrier that protects the underlying steel from rust and corrosion, making it ideal for both interior and exterior applications. The 16 gauge thickness offers an excellent balance of strength and formability, providing substantial resistance against dents, scrapes, and heavy impacts in demanding settings.
Engineered for utility and longevity, this corner guard is an essential component for facility maintenance (MRO) and new construction projects. It is designed for easy installation on drywall, concrete, or block walls to shield vulnerable 90-degree corners. By absorbing and distributing impact forces, it significantly reduces repair costs and downtime associated with wall damage in warehouses, parking garages, hospitals, and commercial buildings. This makes it a primary choice for construction hardware in the Los Angeles industrial supply market.
Specifications
- Material: Galvanized Steel Sheet
- Standards: ASTM A653 (Standard Specification for Steel Sheet, Zinc-Coated (Galvanized))
- Strength/Tensile: Formed for high-impact resistance; specific tensile properties vary by base steel grade.
- Dimensions: 3" x 3" Legs, 16 Gauge (0.0598") Thickness, 36" Length
- Finish: G90 Hot-Dip Galvanized
- Certifications: Mill Test Reports (MTRs) are available upon request to verify material compliance.
Applications
- Industrial & Warehouse: Protecting columns, doorways, and wall corners from forklifts, pallet jacks, and carts.
- Commercial & Retail: Preserving wall integrity in corridors, stockrooms, loading docks, and public areas.
- Healthcare & Hospitality: Guarding corners in hallways, service areas, and kitchens from gurneys and service carts.
- Parking Structures: Shielding concrete pillars and walls from vehicle impact and scrapes.
Target Users
This industrial-grade corner guard is primarily used by facility managers, construction contractors, and MRO teams for new installations or retrofitting existing buildings to reduce maintenance costs and prevent structural damage.
Finish Options
This corner guard comes standard with a G90 hot-dip galvanized finish, providing excellent corrosion and abrasion resistance with a characteristic spangled metallic appearance. For specific aesthetic requirements, the galvanized surface can be properly cleaned, primed, and painted with appropriate DTM (Direct-to-Metal) industrial coatings.
How to Measure
To specify the correct corner guard, measure the required length for full corner protection. Confirm the leg dimensions (width of each side from the corner) and the material thickness (gauge). Our standard corner guards are formed to a 90-degree angle.
Example: Galvanized Corner Guard, 3" x 3" Legs, 16 Gauge, 36" Length.
Order Checklist
- Product name and required dimensions (Legs x Legs x Gauge x Length)
- Grade/material specification and quantity
- Cutting instructions (if custom lengths are needed)
- Surface finish requirements (Standard G90 Galvanized)
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized Corner Guard 3" X 3" X 16GA X 36"
- Material
- G90 Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- High-impact strength, superior corrosion resistance, 90-degree angle for corner protection.
- Primary Applications
- Wall & Corner Protection, MRO, Construction
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
Our Los Angeles warehouse stocks industrial-grade corner guards in various leg sizes (e.g., 1"x1" to 4"x4"), gauges (from heavy-duty 12GA to standard 18GA), and standard lengths such as 36", 48", and 96".
Custom sizes and cutting services are available.
Contact for Sizing-
Galvanized Corner Guard 3" X 3" X 16GA X 36"$6.59
-
-
-
-
