Galvanized B-Deck - 24 Gauge X 36 Inches X 120 Inches
| Weight | 43.800000 |
|---|---|
| bobco_dimensions_width | 36 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 24 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 0 |
| addon_charges_percentage | 0 |
| addon_charges_simple | 0 |
| MAX LENGTHS | 3 X 10 |
| FULL LENGTH PRICE | 58.5 |
| Thickness | 24 Gauge |
| Dimension Length | 120.000000 |
| Dimension Width | 36.000000 |
| Dimension Height | 0.031600 |

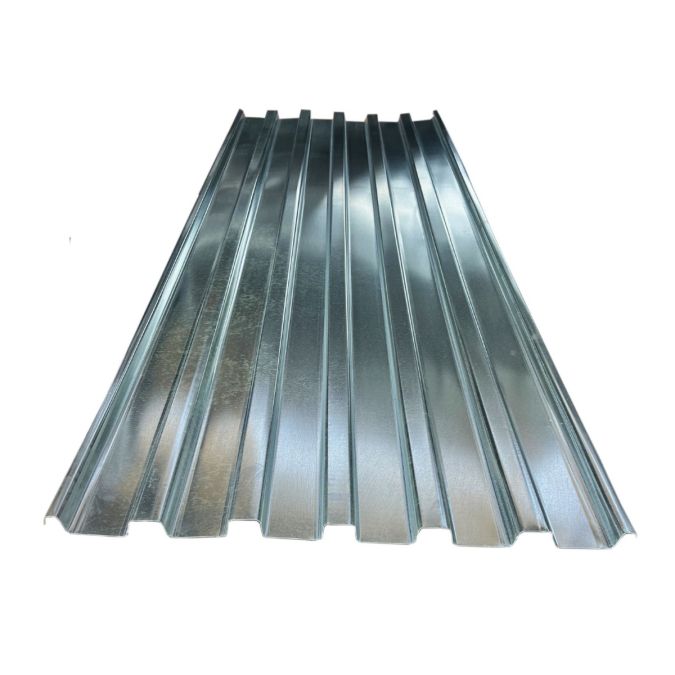

Galvanized B-Deck - 24 Gauge X 36 Inches X 120 Inches
This 24 gauge Galvanized B-Deck provides a structural, corrosion-resistant solution for roofing and flooring systems. Measuring 36" x 120" and conforming to ASTM A653, it offers reliable performance for building envelopes, combining strength with a lightweight profile for easy installation. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 58,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Galvanized B-Deck is manufactured from carbon steel and coated with a layer of zinc in a continuous hot-dip process, per ASTM A653 specifications. This protective zinc layer creates a durable barrier against rust and corrosion, significantly extending the material's service life. The underlying steel provides a minimum tensile strength of 58,000 PSI, ensuring structural integrity for load-bearing applications.
The 24 gauge thickness is lightweight yet strong, making this B-Deck panel ideal for roofing over intermediate supports, siding for agricultural buildings, canopies, and permanent concrete formwork. Its profile adds rigidity, allowing for longer spans than flat sheets of the same thickness, providing an economical and efficient construction material.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Tensile: 58,000 PSI (min)
- Dimensions: 24 Gauge x 36" x 120"
- Finish: Galvanized (Zinc-Coated)
- Certifications: MTR Available upon request
Applications
- Commercial Construction: Roof decking - provides a strong, economical substrate for roofing materials.
- Agricultural Structures: Barn roofing and siding - offers excellent weather resistance in rural environments.
- Industrial Facilities: Mezzanine flooring and equipment platforms - high strength-to-weight ratio for elevated structures.
- Residential Projects: Carport roofing and shed construction - lightweight and easy to install for DIY applications.
Target Users
General contractors, roofers, steel fabricators, and builders rely on Galvanized B-Deck for its structural efficiency and durability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip galvanized finish. The zinc coating provides the primary corrosion protection. For aesthetic purposes, these panels can be painted, but require a specific primer formulated for galvanized surfaces to ensure proper adhesion. Contact our Los Angeles sales team for custom coating inquiries.
How to Measure
B-Deck panels are measured by their gauge (thickness), nominal width (coverage width), and overall length. The profile's depth and rib spacing are standardized.
Example: To order this B-Deck, specify "Galvanized B-Deck, 24 Gauge x 36 inches x 120 inches".
Order Checklist
- Product name and required dimensions (24 Ga x 36" x 120")
- Material specification and quantity
- Confirm grade (ASTM A653) meets requirements
- Surface finish requirements (Galvanized)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized B-Deck - 24 Gauge X 36 Inches X 120 Inches
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 58,000 PSI tensile, Excellent Corrosion Resistance, Structural Profile
- Primary Applications
- Roof Decking, Floor Decking, Siding Panels
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Roofing and Siding panels in 24 and 26 gauge thicknesses, with standard lengths including 8 ft, 10 ft, and 12 ft. This 24 Ga x 36" x 120" (10 ft) size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Galvanized B-Deck - 24 Gauge X 36 Inches X 120 Inches$111.44
-
-
-
-
