Galvanized B-Deck - 20 Gauge X 36 Inches X 144 Inches
| Weight | 75.000000 |
|---|---|
| bobco_dimensions_width | 36 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 20 Gauge |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_percentage | 0 |
| addon_charges_simple | 0 |
| MAX LENGTHS | 12 |
| Thickness | 20 Gauge |
| Dimension Length | 144.000000 |
| Dimension Width | 36.000000 |
| Dimension Height | 0.043600 |
| FULL LENGTH PRICE | 108.23 |
| Full Width ( for Sheets Mandatory) | 3 |
| full_length | 12 |
| addon_charges_fraction | 0 |
Galvanized B-Deck - 20 Gauge X 36 Inches X 144 Inches

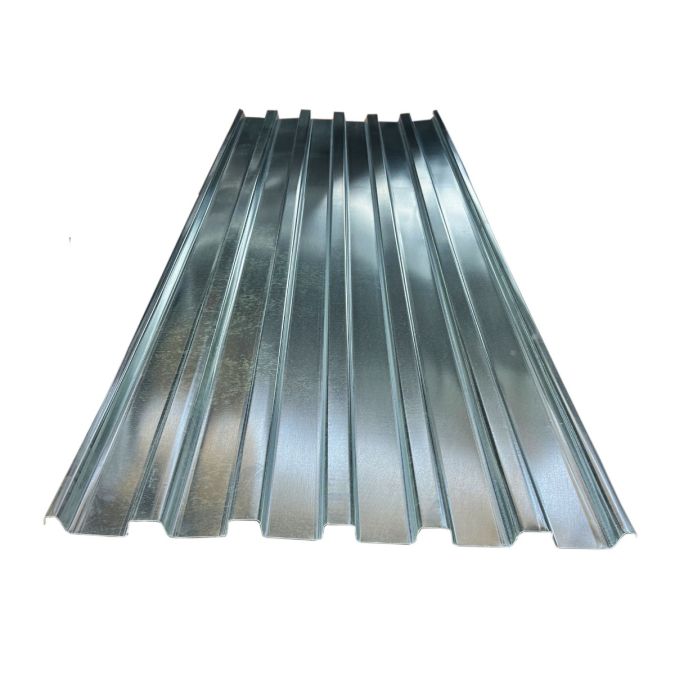

This 20 Gauge Galvanized B-Deck sheet, 36" wide by 144" long, is a structural steel panel conforming to ASTM A653. Its zinc coating provides excellent corrosion resistance, while the base steel offers 36,000 PSI yield strength, ideal for roofing and flooring. In stock Los Angeles.
- Galvanized Steel Construction
- ASTM A653 Certified
- 36,000 PSI Yield Strength
- Excellent Corrosion Resistance
Galvanized B-Deck is manufactured by applying a protective zinc coating to a carbon steel base sheet, following ASTM A653 specifications. This hot-dip process creates a durable, weather-resistant barrier against rust. The 'B-Deck' profile features flutes that provide structural strength for roofing, siding, and composite floor deck systems, offering a high strength-to-weight ratio for building envelopes.
The 20 gauge thickness is a versatile choice, balancing structural capacity with light weight. It's commonly used for roofing on commercial buildings, mezzanine flooring, and permanent concrete formwork where moderate load-bearing is required and ease of installation is critical for project timelines.
Specifications
- Material: Galvanized Steel
- Standards: ASTM A653
- Strength/Yield: 36,000 PSI (minimum)
- Dimensions: 20 Gauge x 36 Inches x 144 Inches
- Finish: Zinc-Coated (Galvanized)
- Certifications: MTR Available Upon Request
Applications
- Commercial Roofing: Panels for warehouses and retail buildings - provides a weather-tight, durable, and economical roof system.
- Mezzanine Flooring: Decking for elevated platforms - offers a strong, lightweight base for flooring materials.
- Siding & Cladding: Wall panels for industrial and agricultural buildings - high corrosion resistance protects against the elements.
- Concrete Formwork: Permanent forms for concrete slabs - acts as a working platform and secondary reinforcement.
Target Users
General contractors, steel erectors, and building maintenance managers rely on Galvanized B-Deck for structural integrity and long-term durability in building projects throughout the Los Angeles area.
Finish Options
This product comes standard with a hot-dip galvanized finish for superior corrosion protection. The spangled zinc surface is the final finish. For applications requiring paint, a specific primer for galvanized surfaces must be used to ensure proper adhesion. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Decking is measured by its gauge (thickness), width (coverage), and length. The profile, like 'B-Deck', defines the shape and height of the ribs.
Example: To order this decking, specify "Galvanized B-Deck, 20 Gauge x 36 inches x 144 inches".
Order Checklist
- Product name and required dimensions (20 Ga x 36" x 144")
- Material specification and quantity
- Confirm grade (ASTM A653) meets requirements
- Surface finish requirements (Galvanized)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Galvanized B-Deck - 20 Gauge X 36 Inches X 144 Inches
- Material
- Galvanized Steel
- Standards
- ASTM A653
- Key Properties
- 36,000 PSI yield, excellent corrosion resistance, structural profile
- Primary Applications
- Roofing, mezzanine flooring, concrete formwork
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock Galvanized Decking in various gauges (20, 22, 24, 26) and standard lengths. This 20 Gauge x 36" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Galvanized B-Deck - 20 Gauge X 36 Inches X 144 Inches$108.23
-
-
-
-
