Eagle-1 Slide Gate Operator with 2 Wireless Remotes, Security Reflective Photo Eye Monitored - 1/2 HP Residential Home Slide Gate Opener - Easy to Install
Image Image

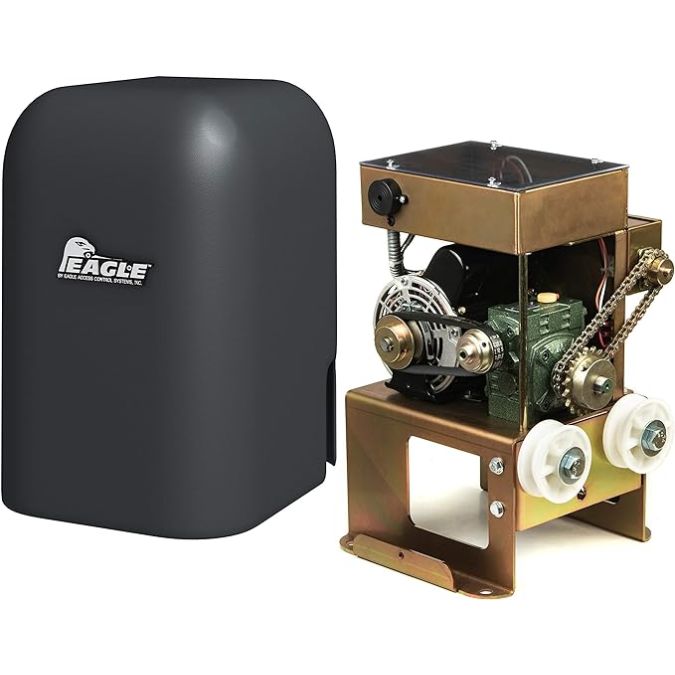

Eagle-1 Slide Gate Operator with 2 Wireless Remotes, Security Reflective Photo Eye Monitored - 1/2 HP Residential Home Slide Gate Opener - Easy to Install

In stock
SKU
EAGLE-I-SLIDE
$1,149.99
Bulk Pricing:
  • Buy 3 or more $1,129.99 Save 2%
  • Buy 5 or more $1,049.00 Save 9%
  • Buy 10 or more $999.00 Save 13%
Be the first to review this product
The Eagle-1 is a complete slide gate operator kit for residential applications. Its powerful 1/2 HP continuous-duty motor handles gates up to 18 feet and 300 lbs. This easy-to-install package includes two wireless remotes and a monitored reflective photo eye for enhanced security and safety. Ideal for automating driveway gates with reliable performance. In stock Los Angeles.

Add to Compare
Product Description
Reviews
Questions 0
More Information
Weight85.000000
bobco_dimensions_width17
bobco_dimensions_length15
bobco_thickness17
Thickness17
Dimension Length24.000000
Dimension Width17.000000
Dimension Height15.000000

Eagle-1 Slide Gate Operator with 2 Wireless Remotes & Photo Eye

The Eagle-1 is a complete slide gate operator kit designed for residential security and convenience. This system features a robust 1/2 HP motor capable of moving gates up to 18 feet long and 300 pounds. Includes two remotes and a photo eye. In stock Los Angeles.

  • 1/2 HP Continuous Duty Motor
  • For Gates up to 18 ft & 300 lbs
  • Includes 2 Wireless Remotes
  • Monitored Photo Eye Security
Overview | Specifications | Applications | Finish Options | How to Measure | Order Checklist

The Eagle-1 slide gate operator provides a reliable and secure solution for automating residential driveway gates. The powerful 1/2 HP AC motor is rated for continuous duty, ensuring consistent performance. Key features include an auto-close timer, motor brake for secure stopping, and a 2-wire master/slave setup for dual gate installations. The included monitored photo eye adds a critical layer of safety by preventing the gate from closing on obstructions.

This user-friendly kit is engineered for straightforward installation. It comes with two pre-programmed wireless remotes for immediate access and features a fail-secure manual crank release, ensuring you can operate your gate even during a power outage. The robust construction and weather-resistant housing make it a durable choice for any home.

Specifications

  • Model: Eagle-1 Slide Gate Operator
  • Motor: 1/2 HP Continuous Duty AC
  • Power: 115 VAC @ 60 HZ, 5.2 AMP
  • Gate Capacity: Up to 18 ft length, 300 lbs weight
  • Travel Speed: 12 inches per second
  • Features: Auto-Close Timer (1-60 sec), Motor Brake, 2-Wire Master/Slave
  • Outputs: 24 VDC for MAG Lock, 24 VAC Auxiliary Power
  • Manual Release: Fail-Secure (Crank to Open)
  • Dimensions: 20″ (h) x 15″ (w) x 12″ (d)
  • Package Includes: Operator unit, 2 wireless remotes, reflective photo eye

Applications

  • Residential Driveways: Securing single-family homes with convenient, automated access.
  • Gated Communities: Providing reliable entry and exit for residents with light-duty gates.
  • Small Commercial Lots: Controlling vehicle access for properties with lower traffic flow.
  • Rural Properties: Automating long driveway gates for enhanced security and ease of use.

Target Users

Homeowners, property managers, and professional gate installers rely on the Eagle-1 operator for its straightforward installation and dependable performance in residential applications throughout the Los Angeles area.

Finish Options

This product features a durable, weather-resistant polymer enclosure designed to protect all internal components from outdoor elements, ensuring long-term reliability. The neutral color blends well with most fence and gate styles. For specific project requirements, contact our Los Angeles sales team for information on available accessories.

How to Measure

To ensure compatibility, measure your gate's total length and estimate its weight. This operator is designed for sliding gates that do not exceed 18 feet in length or 300 lbs in weight.

Example: To confirm this operator is right for you, verify "My gate is 15 feet long and weighs approximately 250 lbs."

Order Checklist

  • Product name (Eagle-1 Slide Gate Operator)
  • Confirm gate dimensions and weight are within capacity
  • Verify power availability (115 VAC) at the gate location
  • Check included accessories (2 remotes, photo eye) meet needs
  • Determine if additional safety devices are required
  • Plan for delivery and installation (chain not included)

Quick Facts

Product
Eagle-1 Slide Gate Operator Kit
Motor
1/2 HP Continuous Duty AC
Gate Capacity
Max 18 ft length, 300 lbs weight
Key Properties
Easy to install, includes 2 remotes, photo eye security
Primary Applications
Residential driveways, gated communities, rural properties
Location
Los Angeles warehouse - Same-day pickup available
Request a Quote Ask an Expert

Complete Automation Kit

The Eagle-1 provides a comprehensive solution for most residential sliding gates. We also stock a full range of accessories, including additional remotes, keypads, and safety loops. This complete kit is available for immediate pickup in Los Angeles.

Professional installation recommended.
