Colled Rolled Flat Bar 1018 - 3/8 Inch X 3/4 Inch
| Weight | 0.955800 |
|---|---|
| bobco_dimensions_width | 0.75 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.375 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 39.69 |
| Thickness | 0.375 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.750000 |
| Dimension Height | 0.375000 |

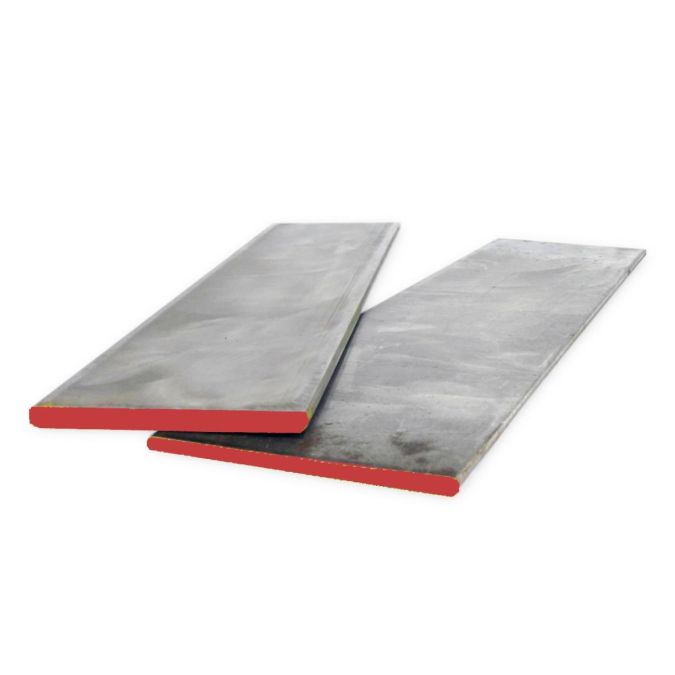

1018 Cold Rolled Flat Bar - 3/4" x 3/8" x 144"
This 3/4" x 3/8" 1018 Cold Rolled Flat Bar offers superior surface finish, tight dimensional tolerances, and excellent machinability. Certified to ASTM A108 with 63,800 PSI tensile strength, it's a versatile choice for brackets, base plates, and precision machine components. In stock Los Angeles.
- 1018 Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Excellent Machinability
1018 Cold Rolled Flat Bar is a low-carbon steel produced through a cold drawing process, which increases its strength and hardness while maintaining tight dimensional accuracy. Conforming to ASTM A108, this material offers a good balance of strength, ductility, and toughness with a typical tensile strength of 63,800 PSI. Its smooth, scale-free surface is ideal for parts requiring minimal finishing.
Classified as a small-width bar, this 3/4" x 3/8" size is perfectly suited for producing custom brackets, support straps, shims, and small frame components. Its excellent machinability and weldability make it a reliable choice for general fabrication and manufacturing where precision is key.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 3/4" Width x 3/8" Thickness x 144" Length
- Finish: Cold Drawn
- Certifications: MTR Available
Applications
- Fabrication: Brackets and straps - easy to cut, drill, and weld into precise shapes.
- Machinery: Shims and wear strips - holds tight tolerances and provides a smooth surface.
- Tooling & Fixtures: Small jig components - dimensionally stable and easy to machine.
- General Manufacturing: Mounting plates for small equipment - provides a flat, strong base.
Target Users
Machinists, fabricators, and maintenance technicians rely on 1018 Cold Rolled Flat Bar for its versatility and ease of use in manufacturing and repair applications throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, providing a smooth, scale-free surface with tight dimensional tolerances. For specific project requirements, other finishes such as polishing or plating may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

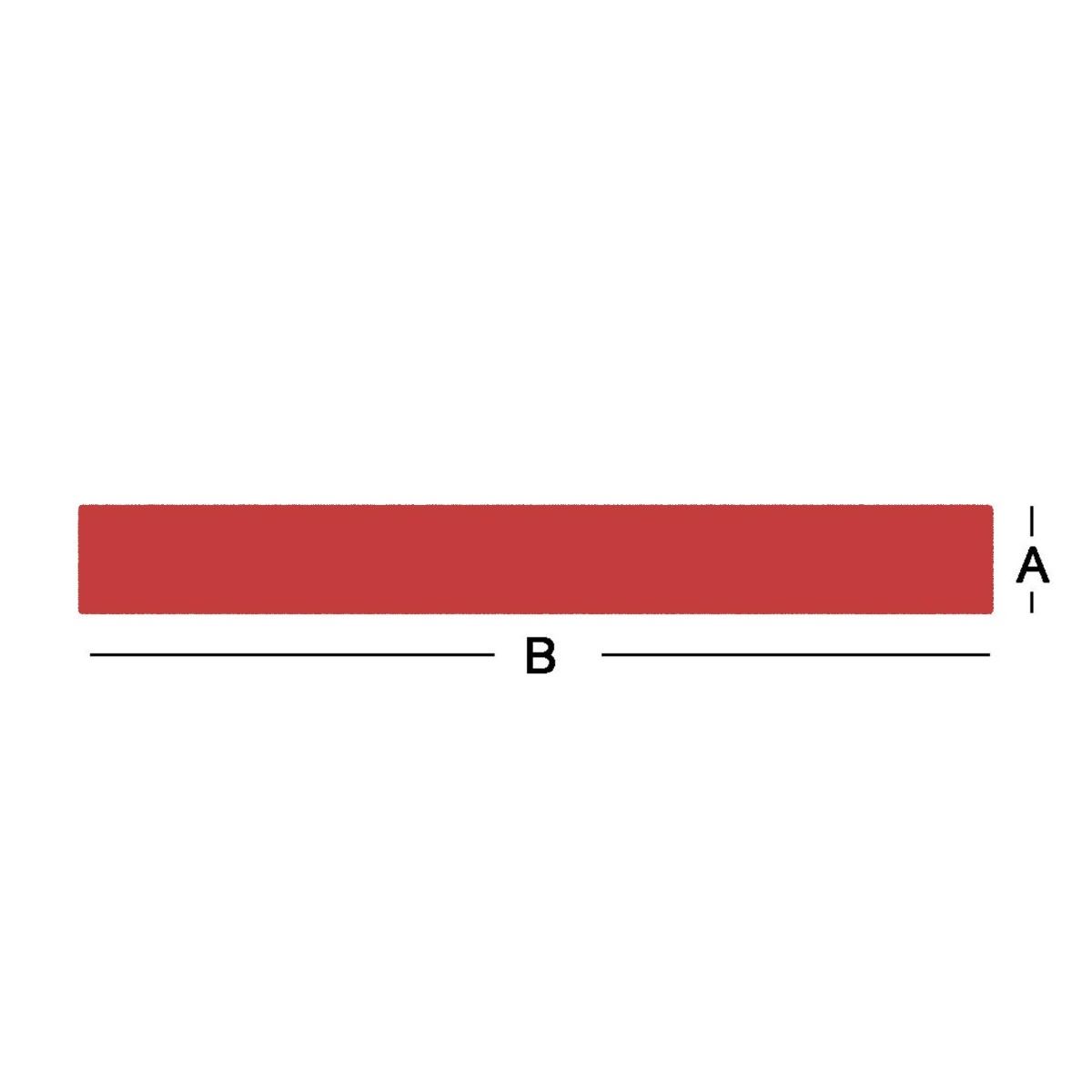

Flat bar is measured by its Width (the larger dimension) and Thickness (the smaller dimension) of its rectangular cross-section.
Example: To order this flat bar, specify "1018 Cold Rolled Flat Bar, 3/4" x 3/8" x 144" length".
Order Checklist
- Product name and required dimensions (3/4" x 3/8" x 144")
- Material specification and quantity
- Confirm grade (1018) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 1018 Cold Rolled Flat Bar - 3/4" x 3/8" x 144"
- Material
- 1018 Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, Excellent Machinability, Good Weldability
- Primary Applications
- Brackets, Straps, Shims
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Flat Bar in widths from 1/4" to 12" and thicknesses from 1/8" to 2". This 3/4" x 3/8" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
