Colled Rolled Flat Bar 1018 - 1/8 Inch X 2 Inch
| Weight | 0.850000 |
|---|---|
| bobco_dimensions_width | 2 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.125 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 37.17 |
| Thickness | 0.125 |
| Dimension Length | 144.000000 |
| Dimension Width | 2.000000 |
| Dimension Height | 0.125000 |

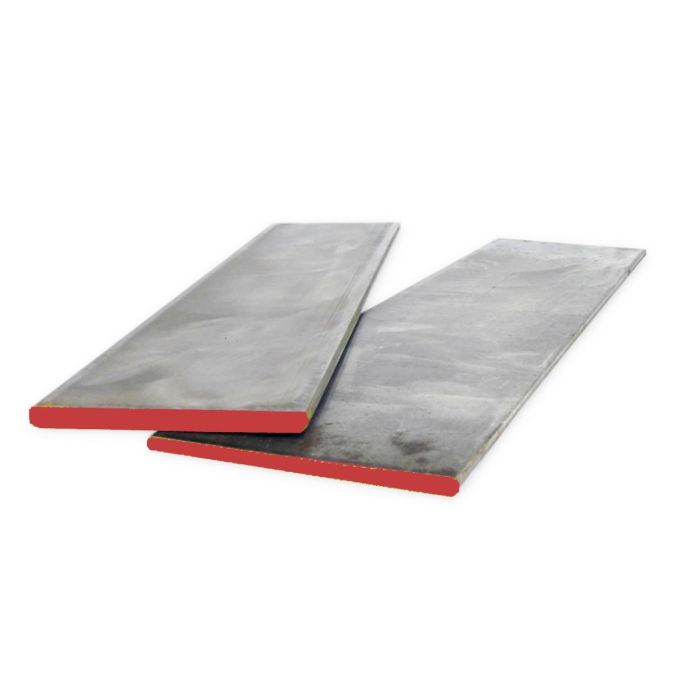

1018 Cold Rolled Flat Bar - 2" x 1/8" x 144"
This 2" x 1/8" 1018 Cold Rolled Flat Bar provides a superior surface finish and tight dimensional accuracy due to the cold drawing process. Certified to ASTM A108, it delivers 63,800 PSI tensile strength, ideal for precision fabrication and machining applications. In stock Los Angeles.
- 1018 Cold Rolled Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Good Machinability
1018 Cold Rolled Steel Flat Bar is a low-carbon steel product known for its excellent case-hardening properties and superior surface finish compared to hot rolled alternatives. The cold drawing process increases its strength to 63,800 PSI and maintains tight dimensional accuracy per ASTM A108. It is easily welded and machined, making it a versatile choice for general fabrication.
As a medium-width bar, this 2-inch wide flat stock is perfectly suited for applications requiring good strength and flatness. Common uses include structural bracing, base plates for machinery, mounting brackets, wear strips, and other fabricated components where a clean finish and precise dimensions are essential.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 2" Width x 1/8" Thickness x 144" Length
- Finish: Cold Drawn
- Certifications: MTR Available
Applications
- Fabrication: Base plates and brackets - its flatness and weldability ensure precise assembly.
- Machinery: Levers, linkages, and wear strips - tight tolerances and smooth finish reduce secondary processing.
- Tooling & Fixtures: Jigs and support arms - holds shape well and is easily machined into custom forms.
- Construction: Ornamental ironwork and straps - smooth surface is ready for painting or powder coating.
Target Users
Fabricators, machinists, and engineers rely on 1018 Cold Rolled Flat Bar for its reliability and versatility in manufacturing applications throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, providing a smooth, scale-free surface and tight dimensional tolerances. For specific project requirements, other finishes such as polishing or plating may be applied after fabrication. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Flat bar is measured by its Width (A) and Thickness (B). The width is the larger of the two cross-sectional dimensions.
Example: To order this flat bar, specify "1018 Cold Rolled Flat Bar, 2" x 1/8" x 144" length".
Order Checklist
- Product name and required dimensions (2" x 1/8" x 144")
- Material specification and quantity
- Confirm grade (1018) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 1018 Cold Rolled Flat Bar - 2" x 1/8" x 144"
- Material
- 1018 Cold Rolled Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, Good Machinability, Weldable
- Primary Applications
- Base plates, structural bracing, wear strips
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Flat Bar in widths from 1/4" to 12" and thicknesses from 1/8" to 2". This 2" x 1/8" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
