1018 Cold Rolled Flat Bar - 1/8" x 1/4" x 144"
This 1/8" x 1/4" 1018 Cold Rolled Steel Flat Bar delivers superior dimensional accuracy and a smooth, scale-free surface. Certified to ASTM A108, it features 63,800 PSI tensile strength and excellent machinability, making it ideal for precision fabrication and component manufacturing. In stock Los Angeles.
- 1018 Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Excellent Machinability
1018 Cold Rolled Flat Bar is a low-carbon steel produced through a cold drawing process, which increases its strength and hardness while refining the surface finish and dimensional tolerances. This grade is known for its excellent weldability using common methods and a machinability rating of 70% of 1212 steel. It is also an ideal candidate for case-hardening (carburizing) to create a wear-resistant surface.
As a small profile bar, this 1/8" x 1/4" size is perfectly suited for applications requiring precision without excessive weight. It is commonly used for lightweight brackets, mounting straps, shims for alignment, keyways, and small frame stock in machinery and fixtures where accuracy is critical.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 1/8" Thickness x 1/4" Width x 144" Length
- Finish: Cold Drawn
- Certifications: Mill Test Report (MTR) Available
Applications
- Fabrication: Mounting brackets and straps - small size is ideal for lightweight supports.
- Machinery: Small levers, linkages, and key stock - tight tolerances reduce secondary work.
- Tooling & Fixtures: Spacers, shims, and guide rails - easy to machine into precise forms.
- Construction: Ornamental trim and decorative supports - smooth finish is ready for paint or plating.
Target Users
Machinists, fabricators, and maintenance technicians rely on 1018 Cold Rolled Flat Bar for its reliability and ease of use in component manufacturing and general repairs throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, providing a bright, smooth, and scale-free surface with tight dimensional control. This finish is ready for machining or painting with minimal preparation. For specific project requirements, other finishes may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

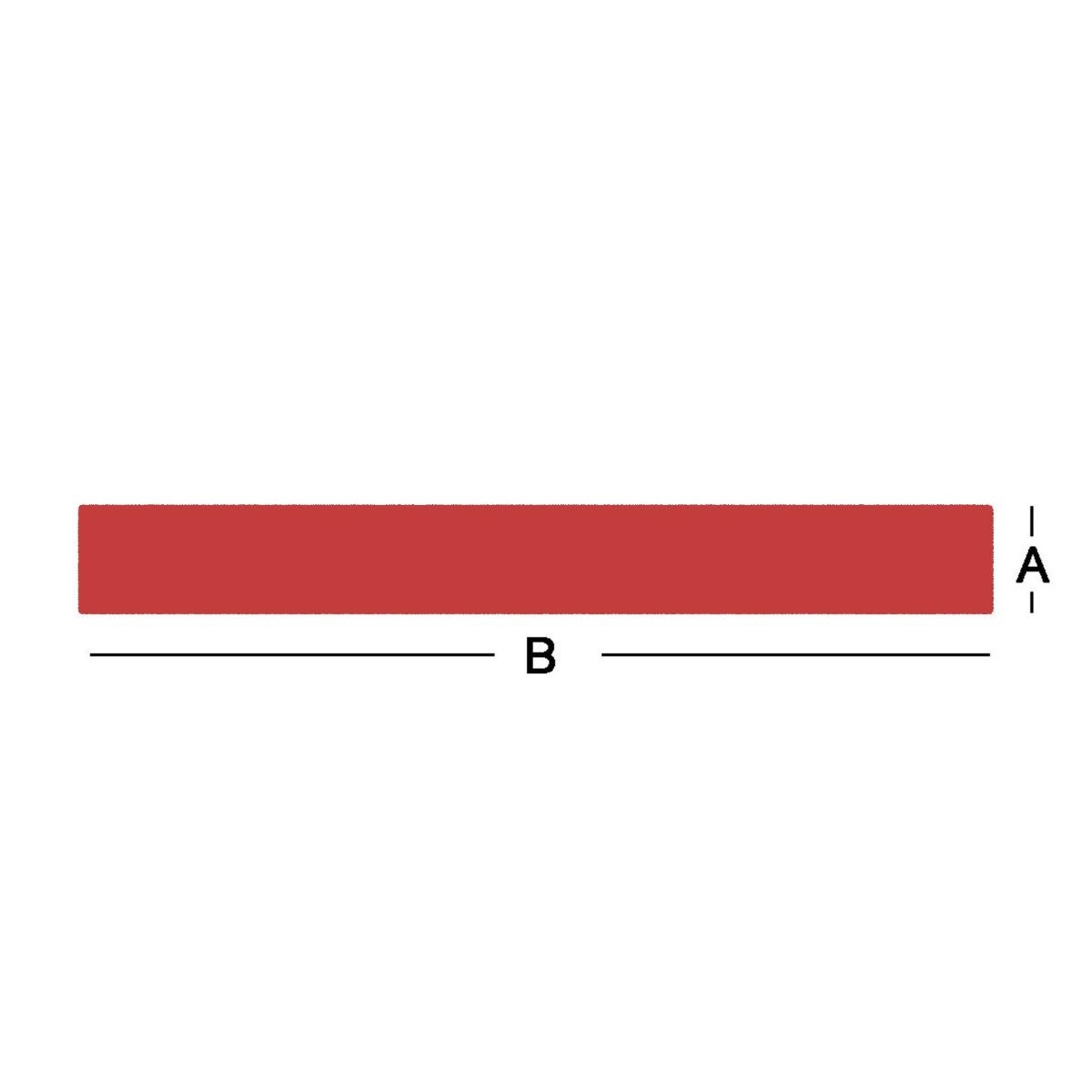

Flat bar is measured by its Thickness (A) and its Width (B). Use calipers or a micrometer for an accurate reading of the rectangular cross-section.
Example: To order this Flat Bar, specify "1018 Cold Rolled Flat Bar, 1/8 inch by 1/4 inch".
Order Checklist
- Product name and required dimensions (1/8" x 1/4")
- Material specification and quantity
- Confirm grade (1018) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 1018 Cold Rolled Flat Bar - 1/8" x 1/4" x 144"
- Material
- 1018 Cold Rolled Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, Excellent Machinability, Good Weldability
- Primary Applications
- Brackets, Straps, Shims, Small Frame Stock
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Flat Bar in thicknesses from 1/8" to 2", widths from 1/4" to 12", and lengths up to 144". This 1/8" x 1/4" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
