Colled Rolled Flat Bar 1018 - 1/4 Inch X 2-1/2 Inch
| Weight | 2.125000 |
|---|---|
| bobco_dimensions_width | 2.5 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.25 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 10 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 70.59 |
| Thickness | 0.25 |
| Dimension Length | 144.000000 |
| Dimension Width | 2.500000 |
| Dimension Height | 0.250000 |
1018 Cold Rolled Flat Bar - 1/4" x 2-1/2" x 144"
This 2-1/2" x 1/4" 1018 Cold Rolled Flat Bar offers tight dimensional accuracy and a clean, smooth surface finish per ASTM A108. With a tensile strength of 63,800 PSI and excellent machinability, it's ideal for manufacturing precision parts and structural components. In stock Los Angeles.
- 1018 Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Excellent Machinability (70%)
1018 Cold Rolled Steel is a low-carbon grade produced through cold drawing, a process that increases its strength and hardness while providing a superior surface finish and tight dimensional tolerances. This material complies with ASTM A108 standards and offers a great balance of strength, ductility, and toughness. Its excellent weldability and machinability (rated at 70%) make it a versatile choice for general fabrication.
As a medium-width bar, this 2-1/2" wide flat is perfectly suited for applications requiring greater stability than smaller straps. Common uses include structural bracing, wear strips for machinery, base plates for equipment, and other machined components where its flatness and consistency are critical.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 1/4" Thickness x 2-1/2" Width x 144" Length
- Finish: Cold Drawn
- Certifications: MTR Available
Applications
- Fabrication: Base plates and gussets - provides a flat, stable surface that is easy to weld.
- Machinery: Levers, linkages, and wear strips - excellent machinability and tight tolerances reduce secondary operations.
- Automotive: Mounting brackets and frame components - good strength and formability for non-critical parts.
- Tooling & Fixtures: Jigs and templates - holds shape well and is easy to machine into precise forms.
Target Users
Fabricators, machinists, and engineers rely on 1018 Cold Rolled Flat Bar for its reliability and versatility in manufacturing and structural applications throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, resulting in a smooth, scale-free surface with tight dimensional control. For specific project requirements, other finishes such as polishing or plating may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

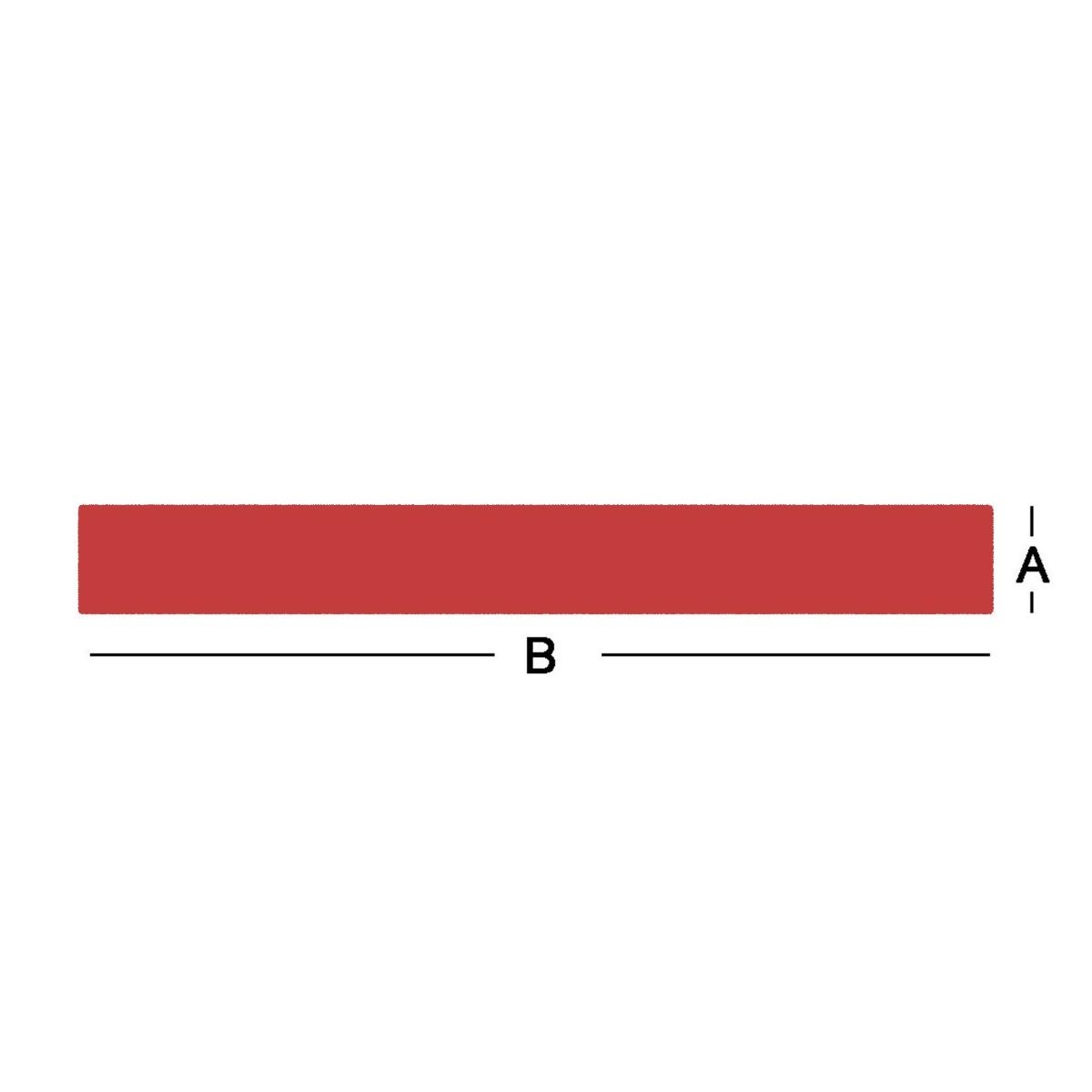

Flat bar is measured by its Thickness (the smaller dimension) and its Width (the larger dimension).
Example: To order this flat bar, specify "1018 Cold Rolled Flat Bar, 1/4" x 2-1/2" x 144" length".
Order Checklist
- Product name and required dimensions (1/4" x 2-1/2" x 144")
- Material specification and quantity
- Confirm grade (1018) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 1018 Cold Rolled Flat Bar - 1/4" x 2-1/2" x 144"
- Material
- 1018 Cold Rolled Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, Excellent Machinability, Good Weldability
- Primary Applications
- Base plates, structural bracing, machine ways
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Flat Bar in widths from 1/4" to 12" and thicknesses from 1/8" to 2". This 1/4" x 2-1/2" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Colled Rolled Flat Bar 1018 - 1/4 Inch X 2-1/2 Inch$22.06
-
-
-
-
