Colled Rolled Flat Bar 1018 - 1/2 Inch X 3/4 Inch
| Weight | 1.275000 |
|---|---|
| bobco_dimensions_width | 0.75 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.5 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 7 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 46.59 |
| Thickness | 0.5 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.750000 |
| Dimension Height | 0.500000 |

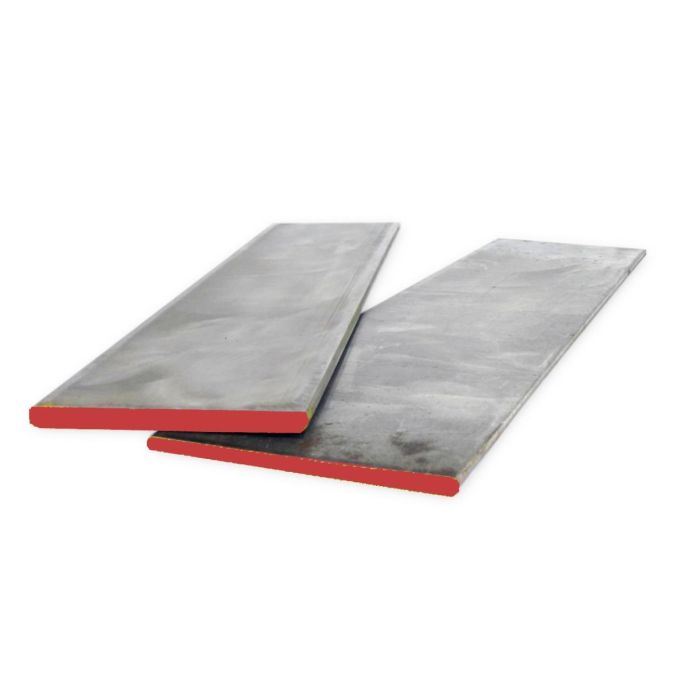

1018 Cold Rolled Flat Bar - 1/2" x 3/4"
This 1/2" x 3/4" 1018 Cold Rolled Flat Bar offers tight dimensional accuracy and a clean, scale-free surface. Conforming to ASTM A108, it provides a balance of strength, machinability, and weldability ideal for general fabrication and precision machine parts. In stock Los Angeles.
- 1018 Cold Rolled Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Excellent Machinability
1018 is a low-carbon steel known for its superior surface finish and tight tolerances achieved through the cold drawing process. This process increases strength and hardness, resulting in a typical tensile strength of 63,800 PSI. Compliant with ASTM A108, it's easily machined, welded, and suitable for case-hardening, making it a reliable choice for general-purpose fabrication.
As a small profile bar, this 1/2" x 3/4" size is perfectly suited for manufacturing custom brackets, mounting straps, shims, and small frame stock where precision and a smooth finish are more critical than raw structural strength.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 1/2" Thickness x 3/4" Width x 144" Length
- Finish: Cold Drawn
- Certifications: MTR Available
Applications
- Fabrication: Brackets and straps - easy to cut, drill, and weld into precise shapes.
- Machinery: Shims and wear strips - holds tight tolerances and provides a smooth surface.
- Fixtures: Small frame stock and supports - consistent dimensions ensure accurate assembly.
- Automotive: Mounting tabs and non-critical components - good balance of strength and formability.
Target Users
Machinists, fabricators, and maintenance technicians rely on 1018 Cold Rolled Flat Bar for its reliability and ease of use in manufacturing and repair projects throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, providing a smooth, scale-free surface and tight dimensional control. For specific project requirements, other finishes such as polishing or plating can be applied after fabrication. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

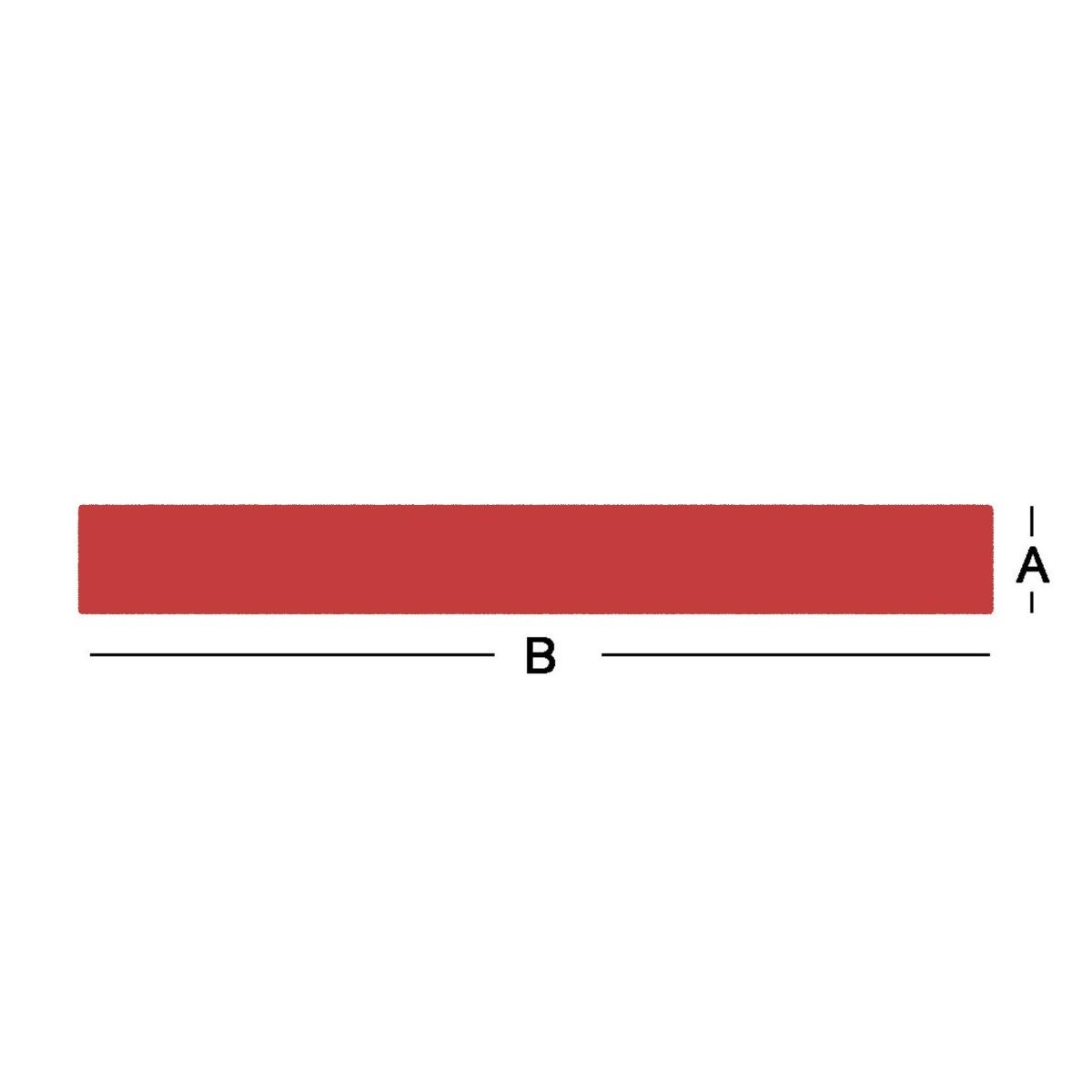

Flat bar is measured by its Thickness (A) and its Width (B). Always specify the smaller dimension first (thickness).
Example: To order this flat bar, specify "1018 Cold Rolled Flat Bar, 1/2 inch by 3/4 inch".
Order Checklist
- Product name and required dimensions (1/2" x 3/4" x 144")
- Material specification and quantity
- Confirm grade (1018 Cold Rolled) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Colled Rolled Flat Bar 1018 - 1/2 Inch X 3/4 Inch
- Material
- 1018 Cold Rolled Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, Excellent Machinability, Good Weldability
- Primary Applications
- Brackets, Straps, Shims
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Flat Bar in thicknesses from 1/8" to 2" and widths up to 12". This 1/2" x 3/4" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
Colled Rolled Flat Bar 1018 - 1/2 Inch X 3/4 Inch$15.08
-
-
-
-
