Cold Rolled Hexagon 1018 - 3/16 Inch
| Weight | 0.103600 |
|---|---|
| bobco_dimensions_width | 0.1875 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.1875 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 1.42 |
| Thickness | 0.1875 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.187500 |
| Dimension Height | 0.187500 |
1018 Cold Rolled Steel Hex Bar - 3/16" x 144"
This 3/16" 1018 cold rolled hex bar provides superior dimensional accuracy and a smooth surface finish. Conforming to ASTM A108, it delivers 63,800 PSI tensile strength and excellent weldability, making it ideal for high-tolerance machined components like fasteners and hardware. In stock Los Angeles.
- 1018 Cold Rolled Steel Construction
- ASTM A108 Certified
- 63,800 PSI Tensile Strength
- Good Machinability (70%)
1018 is a low-carbon steel produced through cold drawing, a process that improves strength, tolerance, and finish over hot rolled alternatives. This bar meets ASTM A108 standards and offers a balance of toughness, strength, and ductility. Its low carbon content makes it easily weldable using standard methods and suitable for case hardening to increase surface wear resistance.
As a small-diameter hex bar, this 3/16" size is perfectly suited for producing fastener stock like custom nuts and bolts, small fittings for hydraulic or pneumatic systems, and other precision hardware where a hexagonal shape is needed for wrenching or positive grip.
Specifications
- Material: 1018 Cold Rolled Steel
- Standards: ASTM A108
- Strength/Tensile: 63,800 PSI
- Dimensions: 3/16" Across Flats x 144" Length
- Finish: Cold Drawn
- Certifications: Mill Test Report (MTR) Available
Applications
- Fasteners & Hardware: Custom nuts, bolts, and standoffs - Hex shape provides a standard gripping surface.
- Machinery & Equipment: Small shafts, pins, and adjustment components - Tight tolerances ensure precise fit.
- Automotive: Custom fittings and small sensor bodies - Good machinability for threading and complex shapes.
- Tooling & Fixtures: Handles, levers, and set screw blanks - Durable material that is easy to machine.
Target Users
Machinists, fabricators, and maintenance technicians rely on 1018 cold rolled hex bar for its reliability and ease of use in industrial and automotive applications throughout the Los Angeles area.
Finish Options
This product comes standard with a cold drawn finish, providing a smooth, bright, and dimensionally accurate surface ready for machining. For applications requiring an even finer finish or tighter tolerance, centerless grinding may be available via special order. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

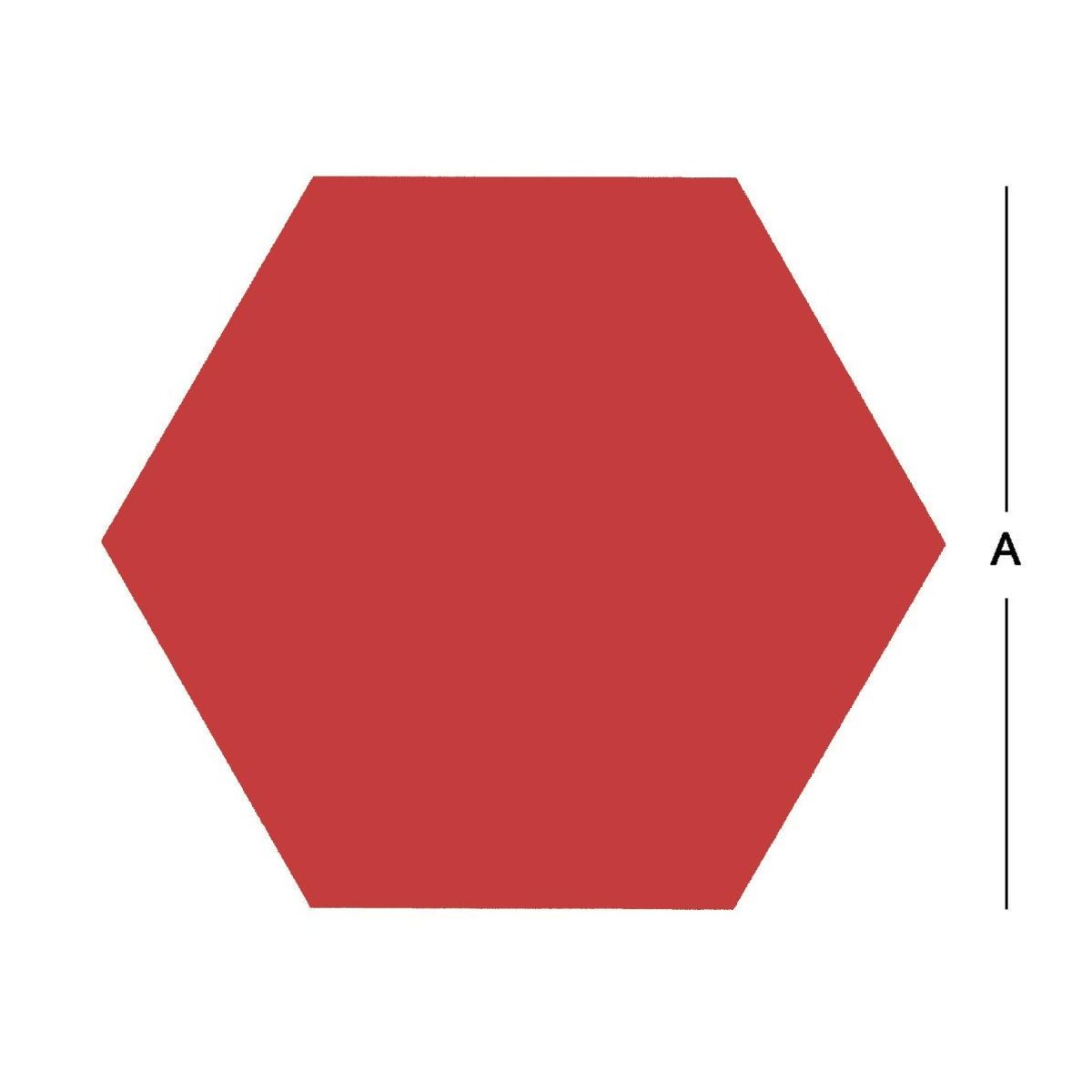

Hexagon bar is measured by its across-the-flats (AF) dimension – the distance between two parallel flat sides. Use calipers for an accurate measurement.
Example: To order this hex bar, specify "1018 Cold Rolled Hexagon, 3/16 inch x 144 inch".
Order Checklist
- Product name and required dimensions (3/16" x 144")
- Material specification and quantity
- Confirm grade (1018) meets requirements
- Surface finish requirements (Cold Drawn)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- Cold Rolled Hexagon 1018 - 3/16 Inch x 144"
- Material
- 1018 Cold Rolled Steel
- Standards
- ASTM A108
- Key Properties
- 63,800 PSI tensile, good machinability, excellent weldability
- Primary Applications
- Fasteners, small fittings, precision hardware
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 1018 Cold Rolled Hex Bar in sizes from 3/16" to 1" across the flats and in standard 12-foot lengths. This 3/16" x 144" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
