6063 Aluminum Channel - 3/4 Inch X 3/4 Inch X 1/8 Inch
| Weight | 0.298300 |
|---|---|
| bobco_dimensions_width | 0.75 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.125 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 17.41 |
| Thickness | 0.125 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.750000 |
| Dimension Height | 0.125000 |
6063 Aluminum Channel - 3/4 Inch X 3/4 Inch X 1/8 Inch
This 3/4" x 3/4" x 1/8" 6063-T5 Aluminum Channel is an architectural alloy manufactured to ASTM B308. Known for its superior surface finish and excellent corrosion resistance, it provides 27,000 PSI tensile strength, making it ideal for visual and light structural applications. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Excellent Corrosion Resistance & Finish
Often called "architectural aluminum," 6063-T5 is an alloy of magnesium and silicon known for its exceptional extrudability and surface finish. It meets ASTM B308 standards and offers a combination of good strength (27,000 PSI tensile), excellent weldability, and superior corrosion resistance. This grade is the industry choice for applications where aesthetics are critical, particularly for parts that will be anodized.
As a small-profile channel, this 3/4" x 3/4" size is perfectly suited for lightweight framing, trim work, and component tracks. Common uses include window and door frames, screen enclosures, railing systems, and supports for custom electronic housings where precision and appearance are paramount.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 3/4" Height x 3/4" Width x 1/8" Web Thickness
- Finish: T5 Temper (Mill Finish)
- Certifications: Mill Test Report (MTR) Available
Applications
- Architectural Trim: Window and door frames - excellent finish and corrosion resistance.
- Retail & Display: Fixture frames and sign supports - lightweight and easy to fabricate.
- Electronics: Custom enclosures and mounting tracks - clean appearance and non-magnetic.
- Furniture: Decorative trim and supports - modern aesthetic and easy to form.
Target Users
Architects, fabricators, window manufacturers, and product designers rely on 6063 aluminum channel for its aesthetic qualities and corrosion resistance in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish in the T5 temper condition. 6063 aluminum is exceptionally well-suited for anodizing, which creates a durable, decorative, and corrosion-resistant surface. It can also be powder-coated or painted. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure

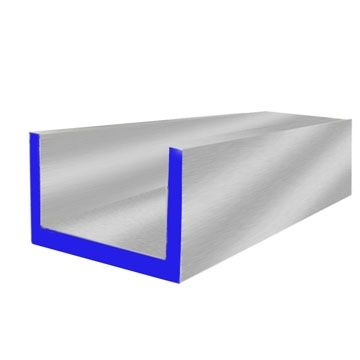

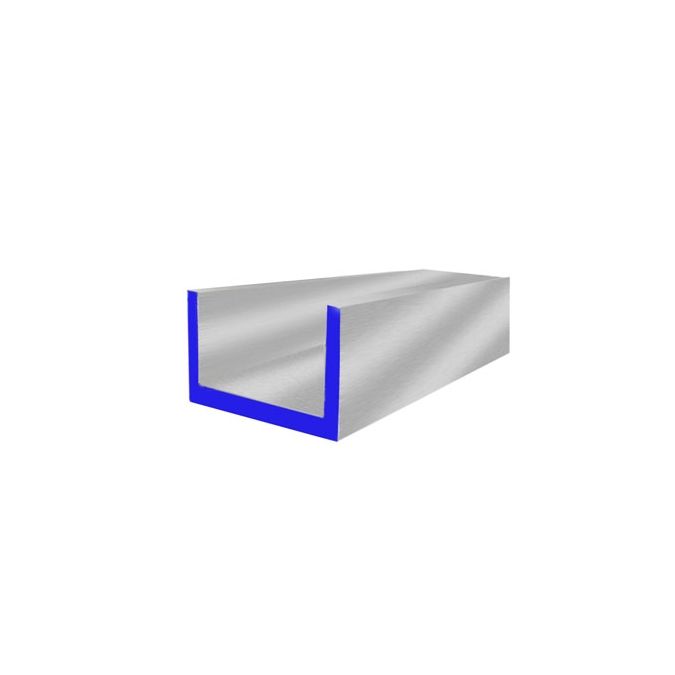

Channel is measured by its Height (A), Width (B), and Web Thickness (C). Measurements are taken from the outside surfaces.
Example: To order this channel, specify "6063 Aluminum Channel, 3/4" x 3/4" x 1/8" thick".
Order Checklist
- Product name and required dimensions (3/4" x 3/4" x 1/8")
- Material specification and quantity
- Confirm grade (6063-T5) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6063 Aluminum Channel - 3/4 Inch X 3/4 Inch X 1/8 Inch
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, superior surface finish, excellent corrosion resistance
- Primary Applications
- Architectural trim, window frames, railing systems
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Channel in sizes from 1/2" to 4" and lengths up to 20 ft. This 3/4" x 3/4" x 1/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
6063 Aluminum Channel - 3/4 Inch X 3/4 Inch X 1/8 Inch$12.04
-
-
