6063 Aluminum Angles - 3/4 Inch X 3/4 Inch X 1/8 Inch
| Weight | 0.200000 |
|---|---|
| bobco_dimensions_width | 0.75 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.13 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 11.7 |
| Thickness | 0.13 |
| Dimension Length | 144.000000 |
| Dimension Width | 0.750000 |
| Dimension Height | 0.130000 |

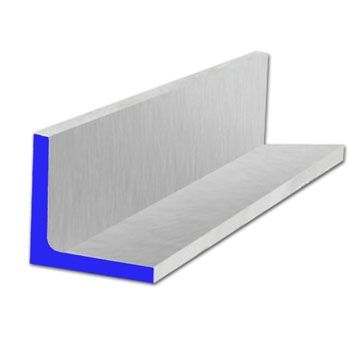

6063 Aluminum Angle - 3/4" x 3/4" x 1/8" x 144"
This 3/4" x 3/4" x 1/8" 6063 Aluminum Angle features an exceptional surface finish and excellent corrosion resistance. Conforming to ASTM B308, it is ideal for architectural and decorative applications requiring an aesthetic appearance, such as trim and framing. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Superior Surface Finish
Often called "architectural aluminum," 6063 is a magnesium and silicon alloy known for its extrudability, exceptional surface finish, and high corrosion resistance. It conforms to ASTM B308 and has a T5 temper, indicating it has been artificially aged for a good balance of strength and ductility. Its smooth surface is an excellent substrate for anodizing, painting, or powder coating, making it a top choice for aesthetic applications.
The small 3/4" leg size makes this angle ideal for light framing, custom brackets, equipment guards, and decorative trim. Its low weight and high finish quality are perfect for projects where aesthetics and corrosion resistance are more critical than structural strength, such as in architectural and consumer product fabrication.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 3/4" leg x 3/4" leg x 1/8" thick x 144" length
- Finish: T5 Temper, Mill Finish
- Certifications: MTR Available
Applications
- Architectural Trim: Window and door frames - excellent finish and corrosion resistance.
- Retail & Display: Fixture components and display case framing - lightweight with an aesthetic appeal.
- Furniture: Structural supports and legs for modern furniture - can be extruded into complex shapes.
- Signage: Sign frames and lightweight supports - weather resistant and easy to fabricate.
Target Users
Fabricators, architects, sign makers, and furniture designers rely on 6063 aluminum angle for its superior finish and corrosion resistance in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, characterized by a smooth, semi-dull surface as extruded. 6063 aluminum is an excellent candidate for anodizing, powder coating, or painting for enhanced protection and aesthetics. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angle is measured by its Leg (A & B), Thickness (C), and Length. All measurements should be taken from the outer edges for leg dimensions.
Example: To order this angle, specify "6063 Aluminum Angle, 3/4" x 3/4" x 1/8" x 144" length".
Order Checklist
- Product name and required dimensions (3/4" x 3/4" x 1/8" x 144")
- Material specification and quantity
- Confirm grade (6063-T5) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6063 Aluminum Angle - 3/4" x 3/4" x 1/8"
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, superior surface finish, excellent weldability
- Primary Applications
- Architectural trim, window frames, light framing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Angle in leg sizes from 3/4" to 1-1/2" and lengths up to 20 feet. This 3/4" x 3/4" x 1/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
6063 Aluminum Angles - 3/4 Inch X 3/4 Inch X 1/8 Inch$10.86
-
-
-
-
