6063 Aluminum Angles - 1 Inch X 1 Inch X 1/4 Inch
| Weight | 0.510000 |
|---|---|
| bobco_dimensions_width | 1 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.25 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| Thickness | 0.25 |
| Dimension Length | 144.000000 |
| Dimension Width | 1.000000 |
| Dimension Height | 0.250000 |
| FULL LENGTH PRICE | 43.76 |
| full_length | 12 |
| addon_charges_fraction | 2 |

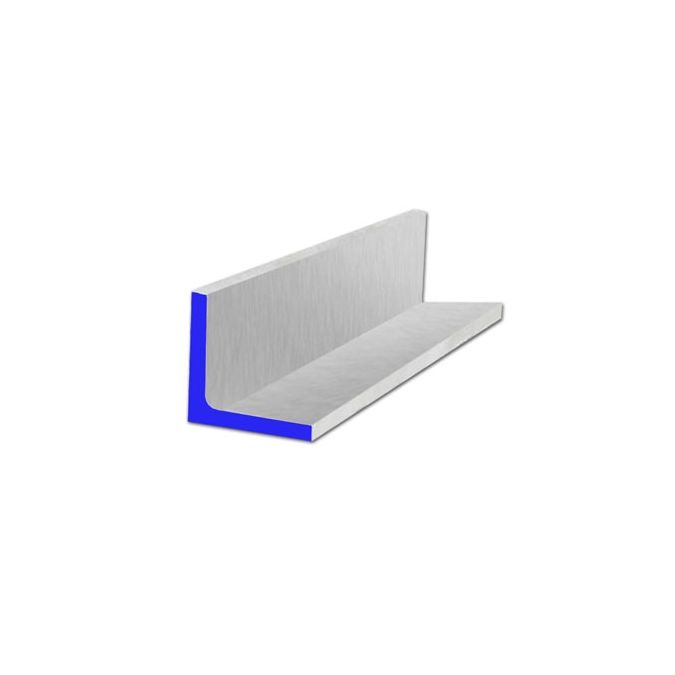

6063 Aluminum Angle - 1" x 1" x 1/4"
This 1" x 1" x 1/4" 6063 aluminum angle, often called "architectural aluminum," is specified to ASTM B308. It combines excellent corrosion resistance with a smooth surface finish ideal for anodizing. With a T5 temper, it is a top choice for non-structural decorative applications. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Excellent for Anodizing
6063-T5 aluminum is a magnesium and silicon alloy known for its exceptional surface finish, high corrosion resistance, and good workability. Conforming to ASTM B308, it is less strong than 6061 but offers superior extrudability for complex shapes. The T5 temper indicates artificial aging for a good balance of strength and ductility in non-structural applications requiring an aesthetic finish.
As a small profile, this 1" angle is ideal for light-duty applications. It is frequently used for light framing, equipment guards, decorative brackets, and as architectural trim for window frames, door frames, and storefronts where a clean appearance and resistance to the elements are primary requirements for the finished product.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 1" Leg x 1" Leg x 1/4" Thickness x 144" Length
- Finish: T5 Temper, Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- Architectural: Window frames, door frames, and storefronts - excellent finish and corrosion resistance.
- Construction: Light framing for partitions and soffits - easy to cut and assemble.
- Retail & Display: Fixture components, display cases, and shelving supports - lightweight and aesthetic appeal.
- Trim & Molding: Decorative trim for interiors, exteriors, and vehicles - superior surface for anodizing.
Target Users
Architects, fabricators, and general contractors rely on 6063 aluminum angle for its aesthetic finish and durability in construction and decorative projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, characterized by a smooth, semi-matte surface. 6063 aluminum is the premier choice for finishing, providing an ideal substrate for anodizing, powder coating, or painting to achieve a wide range of aesthetic and protective finishes. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angle is measured by its two leg lengths (A and B) and its material thickness (C). For an equal leg angle like this, both legs have the same length.
Example: To order this angle, specify "6063 Aluminum Angle, 1" x 1" x 1/4" x 144" length".
Order Checklist
- Product name and required dimensions (1" x 1" x 1/4")
- Material specification and quantity (in feet or pieces)
- Confirm grade (6063-T5) meets requirements
- Surface finish requirements (Mill finish or custom)
- Certifications required (Mill Test Report)
- Special handling or cutting requirements
Quick Facts
- Product
- 6063 Aluminum Angles - 1 Inch X 1 Inch X 1/4 Inch
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, Excellent Corrosion Resistance, Excellent for Anodizing
- Primary Applications
- Architectural trim, window frames, light framing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Angles in leg sizes from 3/4" to 1-1/2" and lengths up to 20 feet. This 1" x 1" x 1/4" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
View All Sizes-
6063 Aluminum Angles - 1 Inch X 1 Inch X 1/4 Inch$43.76
-
-
-
-
