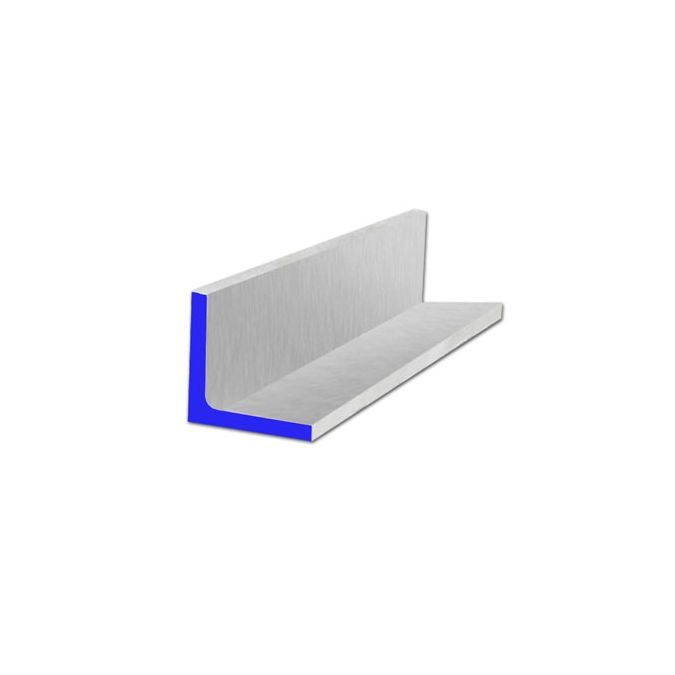

6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 3/16 Inch
| Weight | 0.510000 |
|---|---|
| bobco_dimensions_width | 1.25 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.19 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 43.76 |
| Thickness | 0.19 |
| Dimension Length | 144.000000 |
| Dimension Width | 1.250000 |
| Dimension Height | 0.190000 |
6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 3/16 Inch
This 1-1/4" x 3/16" 6063-T5 aluminum angle provides excellent corrosion resistance and a smooth surface ideal for finishing. Conforming to ASTM B308, it combines moderate strength with superior formability, making it a top choice for architectural and decorative applications. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Excellent Corrosion Resistance
Often called 'architectural aluminum,' 6063-T5 is a magnesium and silicon alloy known for its exceptional surface finish and high corrosion resistance. It conforms to ASTM B308 and offers excellent weldability and formability. The T5 temper indicates artificial aging for a good balance of strength and ductility, making it ideal for non-structural applications requiring an aesthetic finish.
As a small-profile angle, this 1-1/4" size is perfectly suited for light framing, equipment guards, mounting brackets, and decorative trim. Its low weight and clean lines make it a go-to for storefronts, window frames, and custom fabrication projects where appearance is key.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 1-1/4" x 1-1/4" x 3/16" x 144"
- Finish: T5 Temper, Mill Finish
- Certifications: MTR Available
Applications
- Architectural: Window frames & door frames - superior surface finish for anodizing.
- Retail & Display: Fixture components & shelving supports - lightweight and aesthetic appeal.
- Construction: Light framing & corner guards - good formability and corrosion resistance.
- Fabrication: Mounting brackets & supports - easy to cut, drill, and weld.
Target Users
Fabricators, architects, and construction contractors rely on 6063 aluminum angle for its excellent finish and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, characterized by a smooth, semi-dull surface. 6063 aluminum is an excellent substrate for anodizing, powder coating, or painting for enhanced protection and aesthetics. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angle is measured by its two leg dimensions (A & B) and its thickness (C). For an equal leg angle like this one, Leg A and Leg B are the same.
Example: To order this angle, specify "6063 Aluminum Angle, 1-1/4" x 1-1/4" x 3/16" x 144".
Order Checklist
- Product name and required dimensions (1-1/4" x 1-1/4" x 3/16" x 144")
- Material specification and quantity
- Confirm grade (6063-T5) meets requirements
- Surface finish requirements (Mill Finish / T5 Temper)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 3/16 Inch
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, Excellent Corrosion Resistance, Superior Surface Finish
- Primary Applications
- Architectural trim, window frames, light framing
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Angle in leg sizes from 3/4" to 1-1/2" and lengths up to 144". This 1-1/4" x 3/16" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 3/16 Inch$14.57
-
