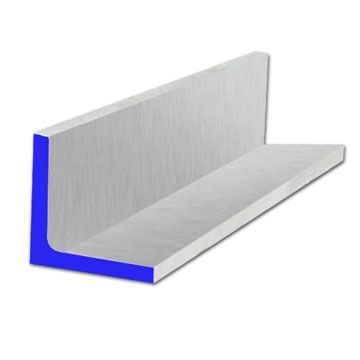

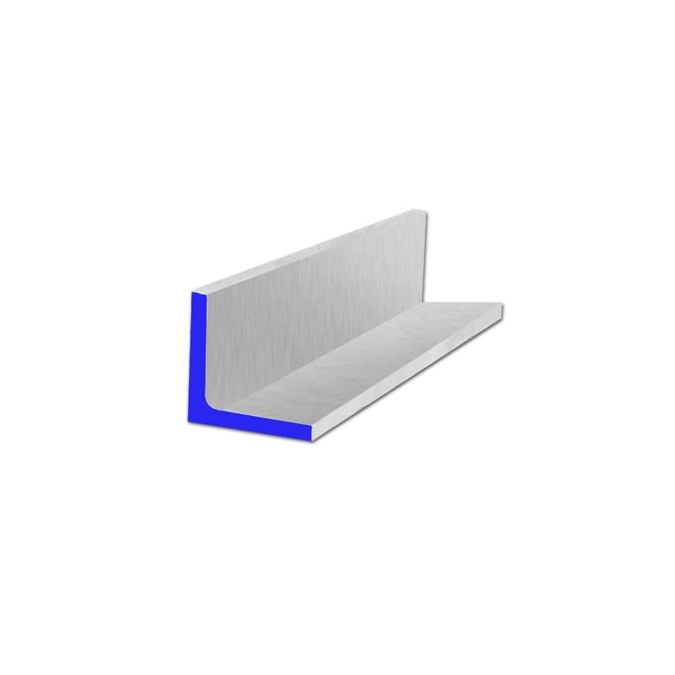

6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 1/8 Inch
| Weight | 0.340000 |
|---|---|
| bobco_dimensions_width | 1.25 |
| bobco_dimensions_length | 144 |
| bobco_thickness | 0.13 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 2 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 5 |
| MAX LENGTHS | 12 |
| FULL LENGTH PRICE | 19.89 |
| Thickness | 0.13 |
| Dimension Length | 144.000000 |
| Dimension Width | 1.250000 |
| Dimension Height | 0.130000 |
6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 1/8 Inch
This 1-1/4" x 1/8" 6063-T5 Aluminum Angle is an architectural alloy known for its excellent corrosion resistance and superior surface finish. It meets ASTM B308 specifications and is ideal for non-structural applications like window frames, railings, and decorative trim. In stock Los Angeles.
- 6063-T5 Aluminum Construction
- ASTM B308 Certified
- 27,000 PSI Tensile Strength
- Excellent Corrosion Resistance & Finish
Often called 'architectural aluminum,' 6063 is a magnesium and silicon alloy known for its exceptional surface finish and high corrosion resistance. It offers superior extrudability, making it perfect for complex shapes. The T5 temper indicates artificial aging for a good balance of strength and ductility, making it ideal for applications requiring an aesthetic finish.
As a small-profile angle, this 1-1/4" size is perfectly suited for light framing, custom brackets, equipment guards, and decorative trim for interiors and storefronts. Its low weight and smooth surface make it easy to handle and finish for detailed fabrication projects.
Specifications
- Material: 6063-T5 Aluminum
- Standards: ASTM B308
- Strength/Tensile: 27,000 PSI
- Dimensions: 1-1/4" x 1-1/4" x 1/8" x 144"
- Finish: T5 Temper (Mill Finish)
- Certifications: MTR Available
Applications
- Architectural Trim: Window and door frames - smooth surface is ideal for anodizing or painting.
- Retail & Display: Fixture components and shelving supports - lightweight and easy to fabricate.
- Construction: Handrail components and balusters - excellent corrosion resistance for indoor/outdoor use.
- Enclosures: Custom electronic housings and racks - non-magnetic and easy to cut to size.
Target Users
Fabricators, architects, contractors, and sign makers rely on 6063 aluminum angle for its excellent finish and workability in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish, characteristic of the extrusion process. 6063 aluminum is an excellent substrate for finishing; anodizing, powder coating, or painting can be applied for enhanced appearance and protection. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Angle is measured by its leg lengths (A and B) and its thickness (C). For an equal leg angle like this one, both leg lengths are the same.
Example: To order this angle, specify "6063 Aluminum Angle, 1-1/4" x 1-1/4" x 1/8" thickness".
Order Checklist
- Product name and required dimensions (1-1/4" x 1-1/4" x 1/8")
- Material specification and quantity
- Confirm grade (6063) meets requirements
- Surface finish requirements (T5 Temper)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 1/8 Inch
- Material
- 6063-T5 Aluminum
- Standards
- ASTM B308
- Key Properties
- 27,000 PSI tensile, Excellent Finish, Excellent Corrosion Resistance
- Primary Applications
- Architectural Trim, Window Frames, Railings
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 6063 Aluminum Angle in sizes from 3/4" to 1-1/2" legs and thicknesses from 1/8" to 3/16". This 1-1/4" x 1/8" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
6063 Aluminum Angles - 1-1/4 Inch X 1-1/4 Inch X 1/8 Inch$12.52
-
-
-
-
