5x5 Heavy Duty Weldable Butt Hinges
- Buy 20 or more $6.59 Save 18%
- Buy 50 or more $6.19 Save 23%
- Buy 100 or more $5.79 Save 28%
| Weight | 1.800000 |
|---|---|
| bobco_dimensions_width | 5 |
| bobco_dimensions_length | 5 |
| bobco_thickness | 1 |
| Thickness | 0.25 |
| Dimension Length | 5.000000 |
| Dimension Width | 5.000000 |
| Dimension Height | 0.250000 |

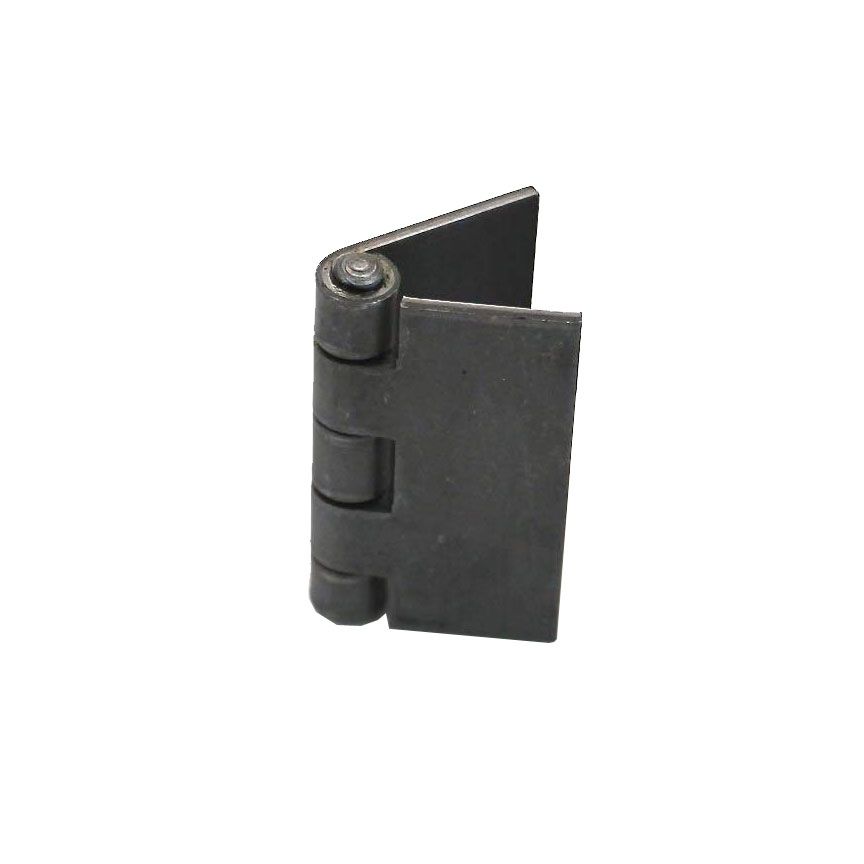

5x5 Heavy Duty Weldable Butt Hinges
Our 5x5 Heavy Duty Weldable Butt Hinges are engineered for superior strength and longevity in demanding industrial applications. Designed to be welded directly onto steel gates, doors, and frames, they provide a robust and permanent pivot point capable of supporting heavy loads. Their simple, durable design ensures smooth operation and reliability for fabrication and MRO projects.
- Weldable Low-Carbon Steel
- Heavy-Duty Butt Hinge
- Weld-On Application
- 5-inch x 5-inch Leaf
Constructed from high-grade, low-carbon steel, these butt hinges are specifically formulated for excellent weldability and structural integrity. The material composition provides the necessary ductility to prevent cracking during the welding process while offering the tensile strength required for heavy-duty use. The hinge features two flat leaves (plates) joined by a central pin, allowing for a smooth 180-degree pivot. This robust construction ensures long-term performance under significant weight and frequent use, making it a reliable component for industrial and commercial hardware.
These 5x5 weldable butt hinges are the go-to solution for fabricators, welders, and maintenance professionals. They are commonly used in the manufacturing of heavy steel gates, security doors, equipment enclosures, trailer ramps, and custom barbecue pits. The weld-on design creates a seamless, tamper-resistant connection that is significantly stronger than bolted alternatives. Available for same-day pickup from our Los Angeles warehouse, these hinges are a staple for any project requiring a durable, permanent-mount pivot mechanism.
Specifications
- Material: Weldable Low-Carbon Steel (e.g., ASTM A36 or 1018)
- Standards: Manufactured to meet common industrial fabrication and welding standards.
- Strength/Tensile: Engineered for high load-bearing capacity suitable for heavy gates and doors.
- Dimensions: 5-inch Height x 5-inch Open Width
- Finish: Raw Steel (Unfinished, ready for welding and painting)
- Certifications: Material certifications (MTR) available upon request.
Applications
- Fabrication: Creating custom steel gates, heavy-duty doors, and security barriers.
- Construction: Installing heavy access doors, utility container doors, and structural enclosures.
- Transportation: Building and repairing trailer ramps, tailgates, and heavy equipment doors.
- MRO: Replacing worn or broken hinges on industrial machinery, dumpsters, and site equipment.
Target Users
This product is primarily used by professional welders, metal fabricators, construction contractors, and MRO technicians working on industrial-grade projects that demand strong, permanent hardware solutions.
Finish Options
These weldable butt hinges are supplied in a raw, unfinished steel condition. This allows for immediate welding without the need to grind off a pre-existing coating. After installation, the hinges can be primed and painted to match the structure and provide corrosion resistance.
How to Measure
To ensure the correct hinge, measure the required height of the hinge leaf. The '5x5' designation refers to a hinge with a 5-inch height and a total open width of 5 inches. Consider the material thickness (gauge) for load capacity requirements.
Example: Product: Heavy Duty Weldable Butt Hinge, Size: 5x5 inch, Quantity: 10 units.
Order Checklist
- Product name and required dimensions
- Grade/material specification and quantity
- Cutting instructions (if applicable)
- Surface finish requirements
- Certifications required (Mill Test Report - MTR)
- Special handling or delivery requirements
Quick Facts
- Product
- 5x5 Heavy Duty Weldable Butt Hinges
- Material
- Weldable Low-Carbon Steel
- Standards
- Industrial Fabrication Standards
- Key Properties
- Heavy-duty construction, excellent weldability, high load capacity, smooth pivot action.
- Primary Applications
- Heavy Gates, Industrial Doors, Trailers, Custom Fabrication
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
Our 5x5 heavy-duty butt hinges are a standard in-stock item. We also carry a variety of other sizes (e.g., 3x3, 4x4, 6x6) to meet diverse project requirements.
Custom sizes and cutting services are available.
