3003 Aluminum Diamond Plate - 0.188
| Weight | 2.800000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 0.188 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 15 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 509.52 |
| Thickness | 0.188 |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.188000 |

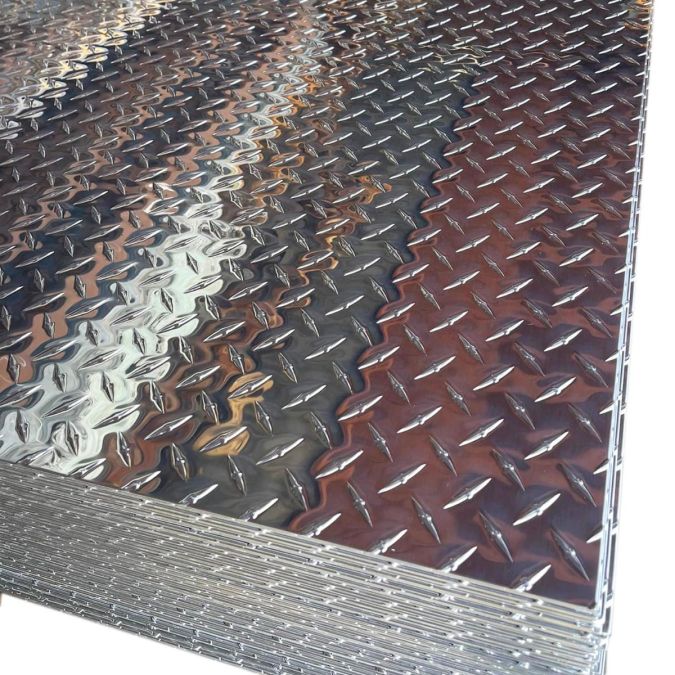

3003 Aluminum Diamond Plate - 0.188" x 48" x 120"
This 0.188" x 48" x 120" 3003-H14 Aluminum Diamond Plate offers a lightweight, non-slip surface with excellent corrosion resistance and formability. Conforming to ASTM B209, it combines 22,000 PSI tensile strength with good workability, making it ideal for trailer flooring and wainscoting. In stock Los Angeles.
- 3003-H14 Aluminum Construction
- ASTM B209 Certified
- 22,000 PSI Tensile Strength
- Excellent Workability & Formability
3003 aluminum is a commercially pure alloy with manganese added for approximately 20% more strength than 1100 grade. The H14 temper signifies it has been strain-hardened and partially annealed, resulting in a material that is easy to form, drill, and weld per ASTM B209. The raised diamond pattern provides excellent skid resistance and rigidity for both protective and decorative applications.
As a medium-thickness plate, this 0.188" material offers a balance of rigidity and formability. It is perfectly suited for structural panels like trailer flooring, machine guards, vehicle running boards, and protective architectural wainscoting where durability and a non-slip surface are required.
Specifications
- Material: 3003-H14 Aluminum
- Standards: ASTM B209
- Strength/Tensile: 22,000 PSI
- Dimensions: 0.188" thickness x 48" width x 120" length
- Finish: H14 Temper, Mill Finish
- Certifications: Mill Test Report (MTR) Available
Applications
- Automotive/Transportation: Trailer flooring and toolbox lining - for its non-slip surface and lightweight durability.
- Architectural: Wainscoting, kick plates, and corner guards - for aesthetic appeal and impact protection.
- Industrial: Stair treads, catwalks, and ramps - to create safe, high-traction walking surfaces.
- Marine: Dock plates and gangways - for its excellent corrosion resistance in wet environments.
Target Users
Fabricators, trailer manufacturers, general contractors, and maintenance personnel rely on 3003 Diamond Plate for its functional, durable, and aesthetic properties in projects throughout the Los Angeles area.
Finish Options
This product comes standard with a mill finish and a raised, bright diamond pattern. While it is not typically finished further, it can be anodized for color or enhanced corrosion protection. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond plate is measured by its nominal base thickness, not including the height of the raised pattern. Width and length are the overall dimensions of the sheet.
Example: To order this plate, specify "3003 Diamond Plate, 0.188" x 48" x 120"".
Order Checklist
- Product name and required dimensions (0.188" x 48" x 120")
- Material specification and quantity
- Confirm grade (3003-H14) meets requirements
- Surface finish requirements (Mill Finish)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 3003 Aluminum Diamond Plate - 0.188
- Material
- 3003-H14 Aluminum
- Standards
- ASTM B209
- Key Properties
- 22,000 PSI tensile, Excellent Workability, Good Corrosion Resistance
- Primary Applications
- Trailer flooring, wainscoting, stair treads
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 3003 Aluminum Diamond Plate in thicknesses from 0.063" to 0.250" in standard 4x10 sheets. This 0.188" x 48" x 120" size is available for immediate pickup in Los Angeles.
Custom cutting services available.
