3003 Aluminum Diamond Plate - 0.063
| Weight | 1.010000 |
|---|---|
| bobco_dimensions_width | 48 |
| bobco_dimensions_length | 120 |
| bobco_thickness | 0.063 |
| price_21to50 | 0 |
| price_11to20 | 0 |
| price_6to10 | 0 |
| addon_charges_fraction | 5 |
| addon_charges_percentage | 20 |
| addon_charges_simple | 15 |
| MAX LENGTHS | 4 X 10 |
| FULL LENGTH PRICE | 189.09 |
| Thickness | 0.063 |
| Dimension Length | 120.000000 |
| Dimension Width | 48.000000 |
| Dimension Height | 0.063000 |

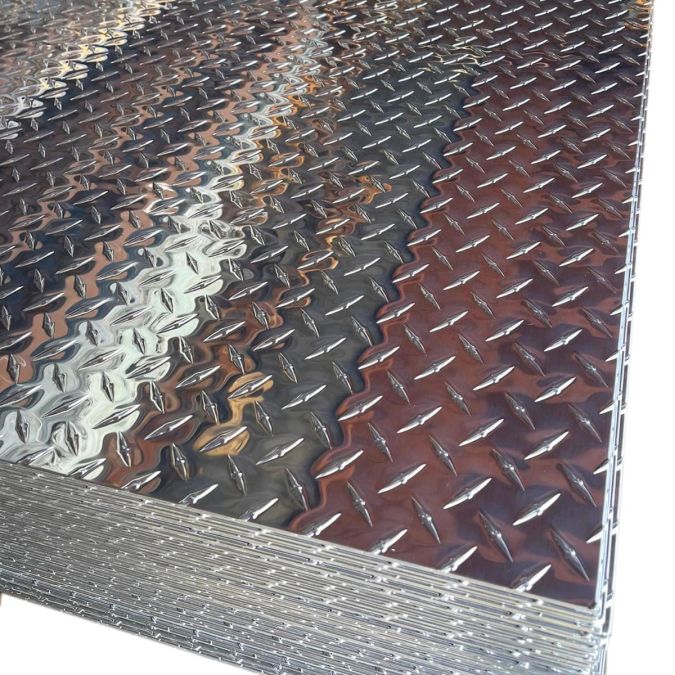

3003 Aluminum Diamond Plate - 0.063" x 48" x 120"
This 0.063" x 48" x 120" 3003-H14 Aluminum Diamond Plate offers a lightweight, non-slip surface with excellent corrosion resistance. Conforming to ASTM B209, it provides good workability and weldability, making it ideal for trailer flooring, protective wall paneling, and ramps. In stock Los Angeles.
- 3003-H14 Aluminum Construction
- ASTM B209 Certified
- 22,000 PSI Tensile Strength
- Excellent Formability & Weldability
3003-H14 Aluminum Diamond Plate is a popular and economical choice known for its excellent workability and corrosion resistance. The addition of manganese increases its strength over pure aluminum, and the H14 temper signifies it has been strain-hardened. This non-heat-treatable alloy is easy to form, drill, and weld, conforming to ASTM B209 standards for quality and consistency.
As a medium-thickness sheet, this 0.063" plate offers a balance of rigidity and formability. It is ideal for vehicle running boards, trailer skin, protective wainscoting, and durable toolboxes where both a non-slip texture and moderate structural integrity are required without excessive weight.
Specifications
- Material: 3003-H14 Aluminum
- Standards: ASTM B209
- Strength/Tensile: 22,000 PSI
- Dimensions: 0.063" x 48" x 120" (4' x 10')
- Finish: H14 Temper, Diamond Tread
- Certifications: MTR Available
Applications
- Automotive: Trailer flooring and running boards - provides a durable, non-slip, and corrosion-resistant surface.
- Architectural: Wainscoting and corner guards - protects walls from impact while adding a modern industrial aesthetic.
- Industrial: Stair treads and work platforms - raised diamond pattern creates a safe, high-traction walking surface.
- Marine: Dock plates and gangways - excellent corrosion resistance handles exposure to moisture and saltwater spray.
Target Users
Fabricators, trailer manufacturers, general contractors, and maintenance staff rely on 3003 Aluminum Diamond Plate for functional, lightweight, and corrosion-resistant surfaces throughout the Los Angeles area.
Finish Options
This product comes standard with a commercial bright mill finish and a raised, embossed diamond pattern. The H14 temper indicates it has been strain-hardened and partially annealed for good formability. For specific project requirements, this material can be anodized for color and enhanced protection. Contact our Los Angeles sales team for custom finish inquiries.
How to Measure
Diamond Plate is measured by its nominal base thickness (A), width (B), and length (C). The thickness measurement does not include the height of the raised diamond pattern.
Example: To order this plate, specify "3003 Aluminum Diamond Plate, 0.063" x 48" x 120"".
Order Checklist
- Product name and required dimensions (0.063" x 48" x 120")
- Material specification and quantity
- Confirm grade (3003-H14) meets requirements
- Surface finish requirements (Mill Finish, Diamond Tread)
- Certifications required (Mill Test Report)
- Special handling or delivery requirements
Quick Facts
- Product
- 3003 Aluminum Diamond Plate - 0.063" x 48" x 120"
- Material
- 3003-H14 Aluminum
- Standards
- ASTM B209
- Key Properties
- 22,000 PSI tensile, Excellent Formability, Good Corrosion Resistance
- Primary Applications
- Trailer Flooring, Wainscoting, Stair Treads
- Location
- Los Angeles warehouse - Same-day pickup available
Available Sizes
We stock 3003 Aluminum Diamond Plate in thicknesses from 0.063" to 0.250". This 0.063" x 48" x 120" sheet is available for immediate pickup in Los Angeles.
Custom cutting services available.
Contact for Sizing-
3003 Aluminum Diamond Plate - 0.063$40.24
-
